SS Wedge Wire Strainer Screen Pipe for Industry Filtration

More Views

SS Wedge Wire Strainer Screen Pipe for Industry FiltrationSS Wedge Wire Strainer Screen Pipe for Industry FiltrationSS Wedge Wire Strainer Screen Pipe for Industry Filtration

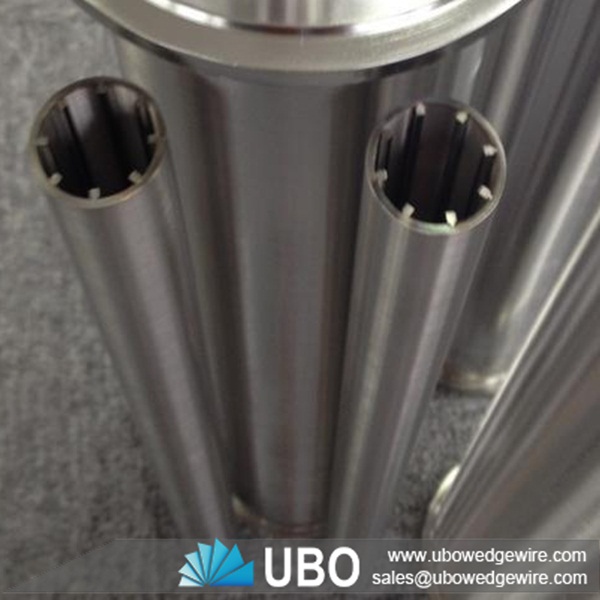

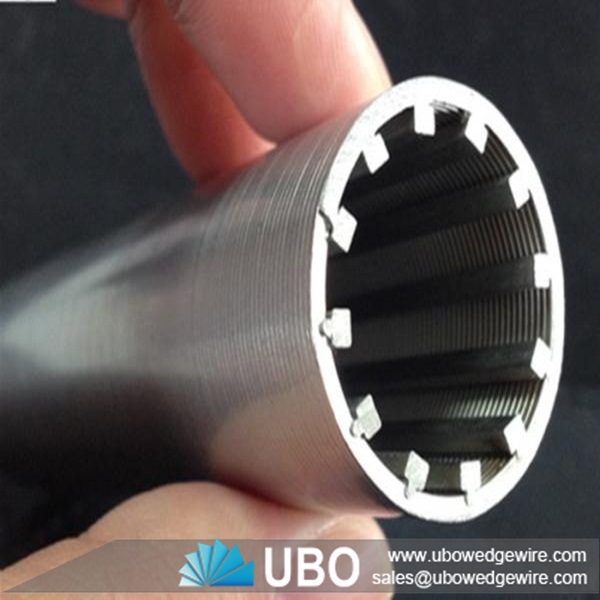

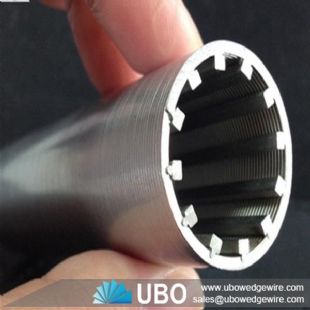

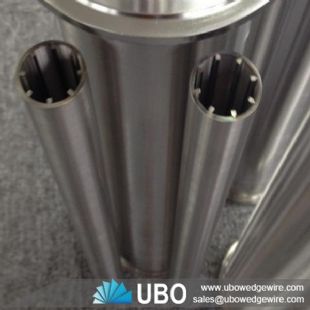

SS Wedge Wire Strainer Screen Pipe for Industry Filtration

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS Wedge Wire Strainer Screen Pipe for Industry Filtration

SS wedge wire strainer screen pipe, also called round slot tube or wedge wire screen tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

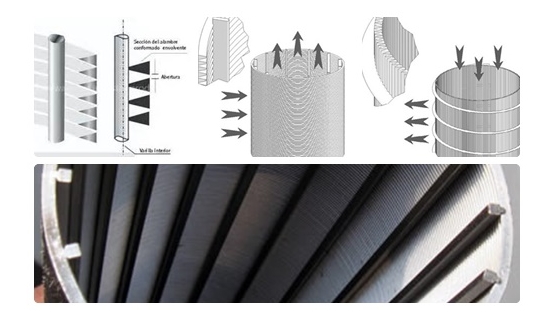

SS wedge wire strainer screen pipe can be designed with slot openings and wires running radial on the outside surface of the screen cylinder (above) or they can be positioned axially on the inside of the cylinder (below).

Each intersection of wedge wire and support rod is welded for strength and durability. Various wedge wire and support rod combinations can be used to produce the best screen design.

Advantages of SS Wedge Wire Strainer Screen Pipe for Industry Filtration

Wedge Wire Screens provide a unique combination of the most important features required for maximum screening efficiency.

1) Free Clearance

The wedge-shaped sections of the wire form apertures that become progressively wider in a
downward direction, thus ensuring rapid flow of material through them. Clogged and blinded apertures are reduced to an absolute minimum.

2) Lateral Strength

In our opinion no form of screening surface with apertures as fine as those of wedge wire screens, can compare with the mechanical strength and working efficiency of wedge wire.

3) Percentage Open Area

For a given aperture size, wedge wire screens have a much larger percentage of open area than conventional sieves.

4) Wearing Life

Owing to a greater wearing area being provided by flat top surfaces, wedge wire screens retain their aperture for a longer duration than round wire screens.

* Some other advantages of Looped type of wedge wire screens over other type of screens and also other type of wedge wires are

a) Self Supporting

b) High Abrasition resistance

c) Low pressure drop

d) High resistance to Vibration

Application of SS Wedge Wire Strainer Screen Pipe for Industry Filtration

SS wedge wire strainer screen pipes are used as rotary screens, collectors such as screen laterals and nozzles, resin traps, in-line strainers, water intake screens, well screens, as well as many other applications involving liquid / solids separation.

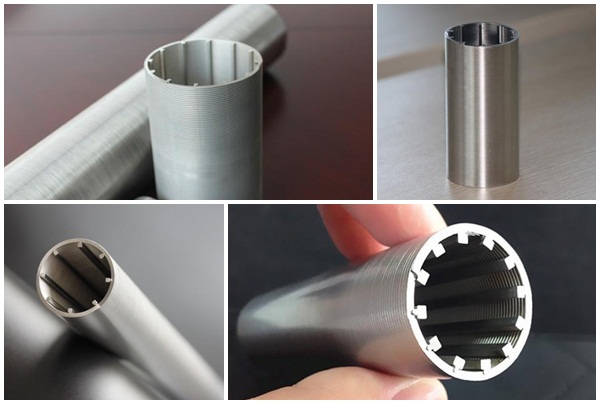

       SS wedge wire strainer screen pipe for industry filtration

Specifications of SS Wedge Wire Strainer Screen Pipe for Industry Filtration:


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

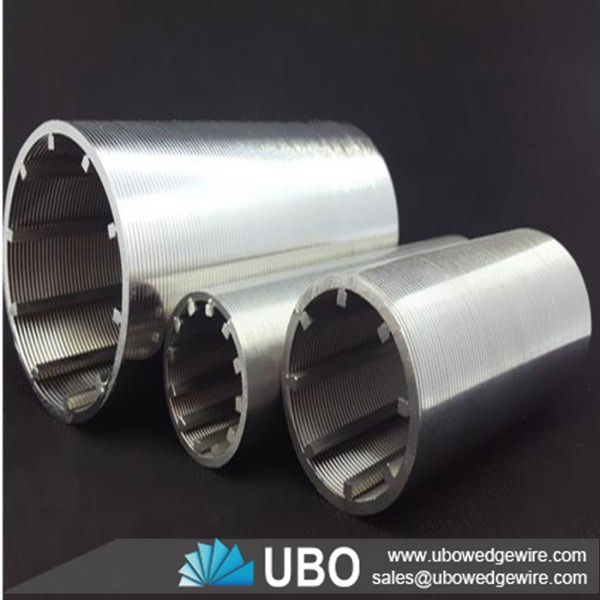

SS wedge wire strainer screen pipe for industry filtration


Packaging and Transportation of SS Wedge Wire Strainer Screen Pipe for Industry Filtration:

Package: in wood case

Delivery Time: 5-25 days
