Quality Wedge Wire Screen Manufacturer in China

SS Wedge Wire Wrapped Screen Tube

More Views

SS Wedge Wire Wrapped Screen TubeSS Wedge Wire Wrapped Screen TubeSS Wedge Wire Wrapped Screen Tube

SS Wedge Wire Wrapped Screen Tube

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire pipe
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS Wedge Wire Wrapped Screen Tube

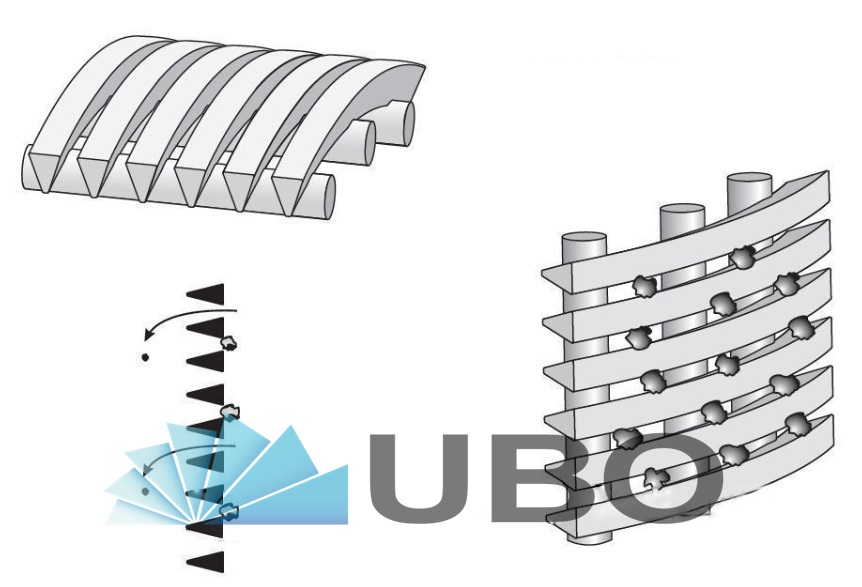

SS wedge wire wrapped screen tube is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.

Wrapped screen tube can be used for conventional filtration, outside-in and reverse filtration, inside-out. The fine wire typically used maximizes the open area. Various fitting options are available with cartridges to help incorporate it into almost any process.

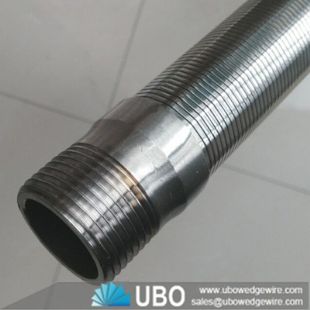

SS wedge wire wrapped screen tube

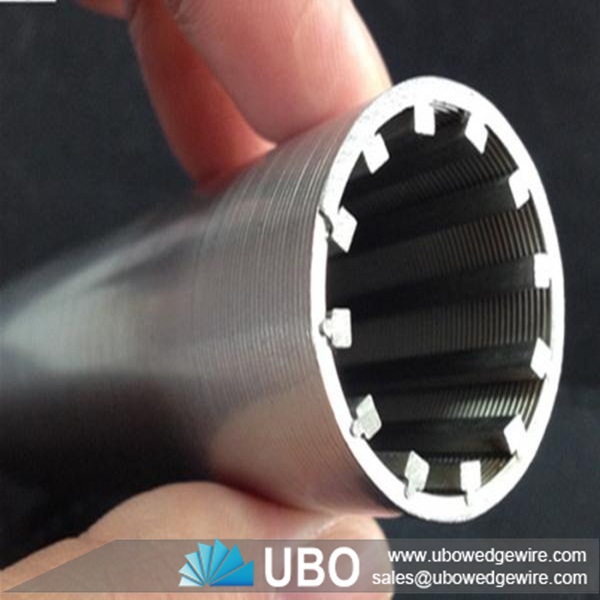

details of SS wedge wire wrapped screen tube

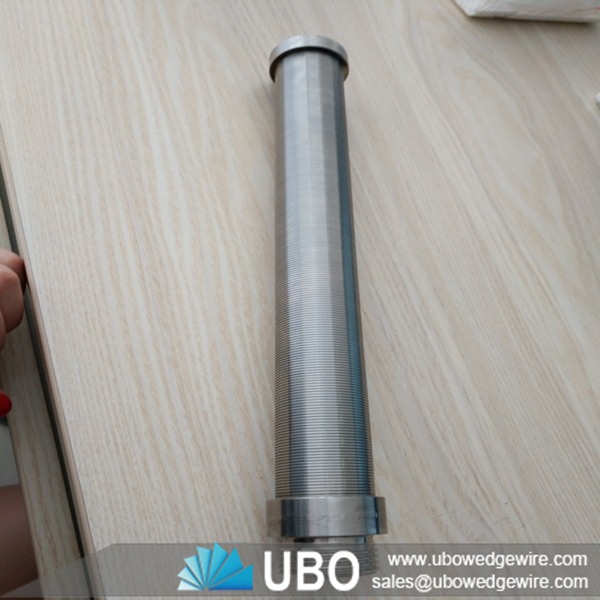

SS wedge wire wrapped screen tube

Application of SS Wedge Wire Wrapped Screen Tube



The wedge wire wrapped screen tubes are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water, oil or gas filter and other filtration equipment.

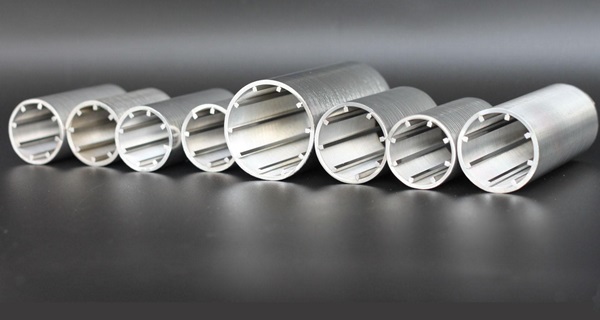

SS wedge wire wrapped screen tube

Specifications of SS Wedge Wire Wrapped Screen Tube:

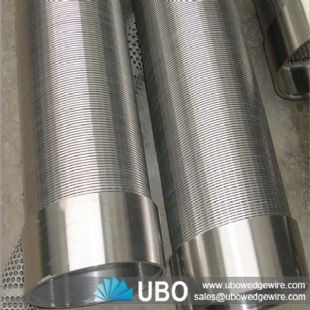

SS wedge wire wrapped screen tube

Material SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
OD Range 19mm-2000mm
ID Range 13mm-1981mm
Length Range Up to 6000 mm
Slot Range 20 micron to 3000 micron (Tolerance:+-5 micron)
Wedge Wire 0.5x1.5 0.75x1.5 1x2 1.5*2 2x3 2*4 3*5
Support Rod 1.5x2.5
2x3
1.5x2.5
2x3
1.5x2.5
2x3
1.8*2.5
2x3
2x3
2x4
3x5
3x6
3x10
4x7
2x4
3x5
3x6
3x10
4x7
5x6
3x5
3x6
3x10
4x7
5x6
5x8
End Finishing Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc
Note Customized According To Requirement

Packaging and Transportation of SS Wedge Wire Wrapped Screen Tube:

transportation of SS wedge wire wrapped screen tube
