SS Wedge Wire Screen Cylinders Basket for Filtration

More Views

SS Wedge Wire Screen Cylinders Basket for FiltrationSS Wedge Wire Screen Cylinders Basket for FiltrationSS Wedge Wire Screen Cylinders Basket for Filtration

SS Wedge Wire Screen Cylinders Basket for Filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Details of SS Wedge Wire Screen Cylinders Basket for Filtration

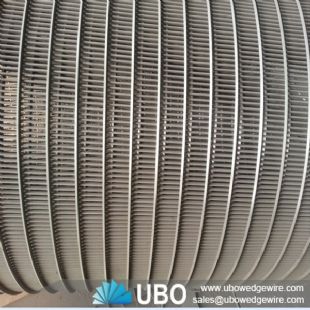

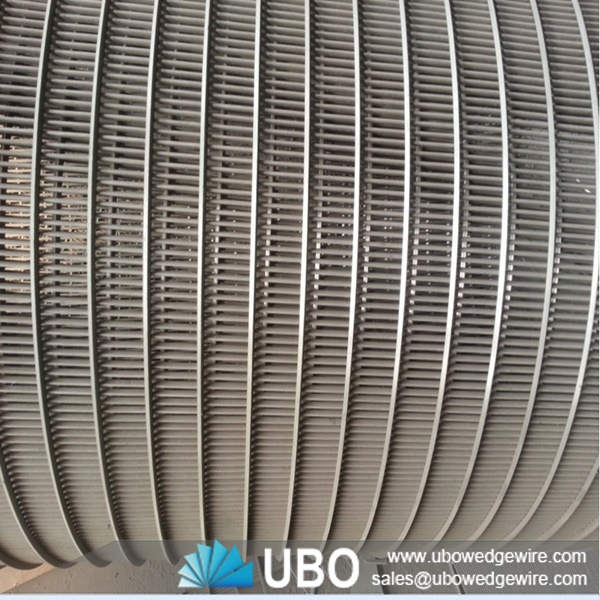

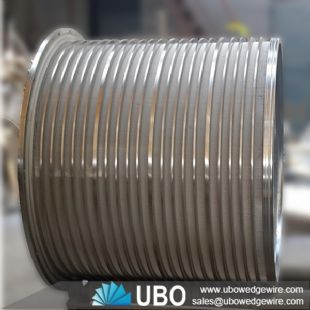

SS wedge wire screen cylinder s basket is similar to the wedge wire screen cylinder and wedge wire screen tube, the wedge wire screen basket is also manufactured from V shaped profile wires and various support rod. The support rod are resistance welded onto the profile wires to form a firm structure. Wedge wire screen basket has a narrow top and a wide bottom, which is suitable for various centrifuge machines.

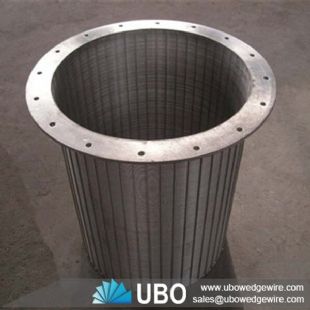

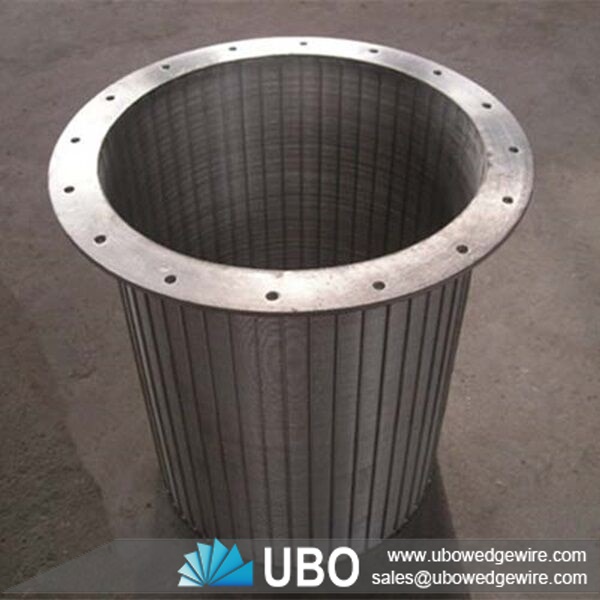

Wedge wire screen basket is a very important component of centrifugal liners. The wedge wire screen basket commonly has flange on the bottom or top. It is connected to the machine by bolt and nuts. Sometimes, there are flanges on both the top and bottom of the wedge wire screen basket.

Features of SS Wedge Wire Screen Cylinders Basket for Filtration


-- A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.

-- Avoids clogging and ensures uninterrupted flow.

-- Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

-- Styles of connection: Flange

Characteristics of SS Wedge Wire Screen Cylinders Basket for Filtration

  • No clogging and ensure the uninterrupted flow.
  • High open area.
  • Accurate slot dimension.
  • Heat resistance.
  • Corrosion and rust resistance.
  • Good machine capability.
  • Durable and long lasting.
  • Standard and reinforced type for choice.
  • Various edge types to connect and suit more applications.
  • Wide range of application.


Application of SS Wedge Wire Screen Cylinders Basket for Filtration

Be suitable for all kinds pressure screen in pulp making system and paper making system.

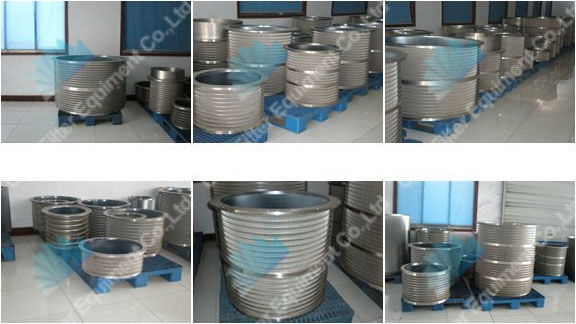

Our pressure screen basket or drum has been exported to India, Bangladesh, Iran and other countries. All the customers satisfy with our products with a high quality and competitive price. We also can produce the products according to your detailed requirements with drawings.

SS Wedge Wire Screen Cylinders Basket for Filtration

Specifications of SS Wedge Wire Screen Cylinders Basket for Filtration:

SS Wedge Wire Screen Cylinders Basket

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Diameter ranging

from 1 inch -----45 inch.

Length:

lengths up to 6 meters.

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

Flange:according to your request

Packaging and Transportation of SS Wedge Wire Screen Cylinders Basket for Filtration:
