Quality Wedge Wire Screen Manufacturer in China

SS Vibrating Sieve Screen Plate for Filtration

More Views

SS Vibrating Sieve Screen Plate for FiltrationSS Vibrating Sieve Screen Plate for FiltrationSS Vibrating Sieve Screen Plate for Filtration

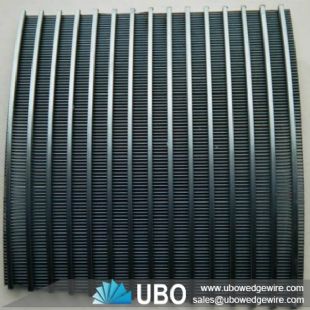

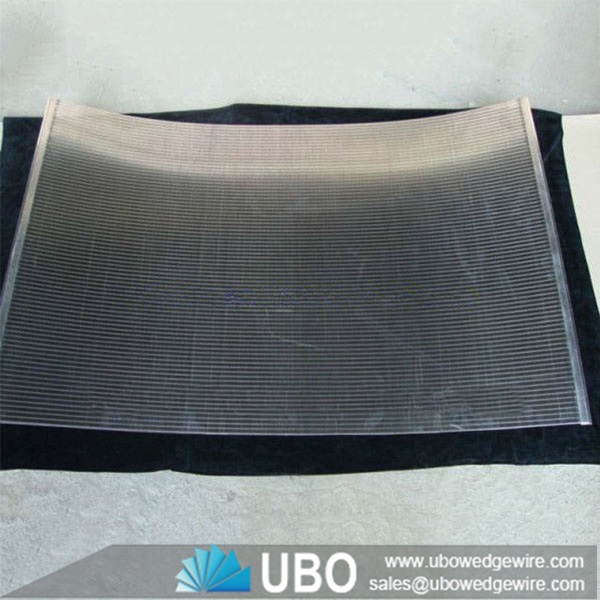

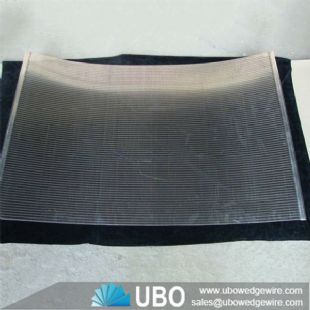

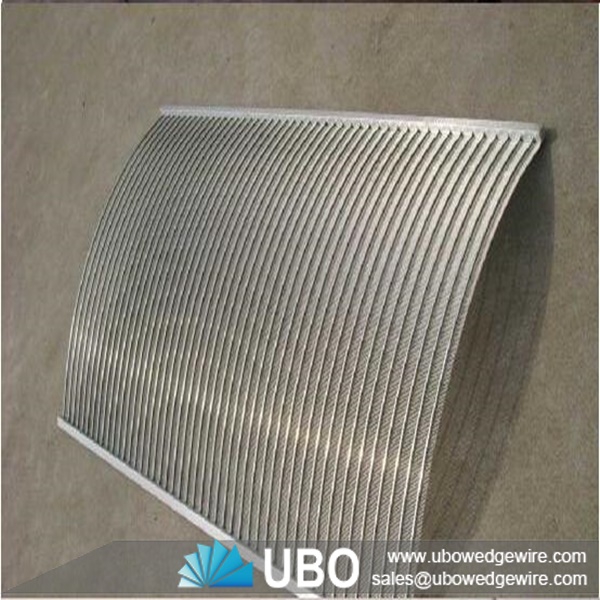

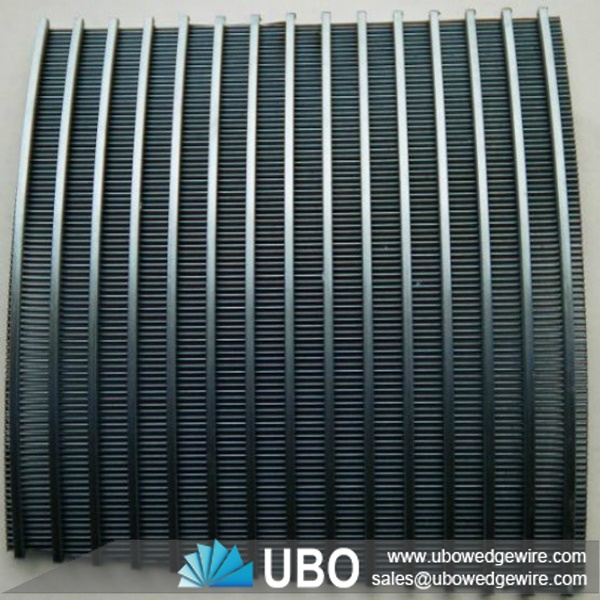

SS Vibrating Sieve Screen Plate for Filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS Vibrating Sieve Screen Plate for Filtration

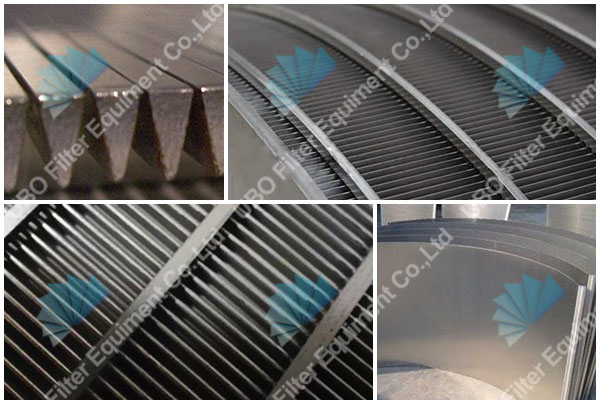

SS vibrating sieve screen plates are made of stainless steel wedge wires. They are consist of a concave curved profile wire screen, which are inserted into a stainless steel frame. The wedge wire sieve bends are manufactured by wrapping and welding stainless steel V-shaped profile wire and support rods. Then the panel screens are cutting and curved into arc screen. The wedge wire sieve bends have continuous slots, which has efficient filtering performance. Forces exerted as materials flows against the curved surface, curved screen structure has better filtering and greater capacity than the wedge wire screen panel.

Features of SS Vibrating Sieve Screen Plate for Filtration

-- High filtering, sizing, dewatering performance.

-- Good mechanical properties.

-- Great capacity than the traditional vibrating screens.

-- Corrosion and rust resistance.

-- High temperature resistance.

-- Low maintenance.

-- easy to clean and need less maintenance.

-- Non-clogging.

-- Long and durable service life.

-- Easy to install and replace.

Applications of SS Vibrating Sieve Screen Plate for Filtration

SS vibrating sieve screen plates is an arc shaped screen panel. The wedge wire screen panels are arced by machine to form the sieve bends. Sieve bends is widely used in the mine, coal, cement and other applications for dewatering, filtering and screening.

SS Vibrating Sieve Screen Plate for Filtration

Specifications of SS Vibrating Sieve Screen Plate for Filtration:

SS Vibrating Sieve Screen Plate

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Width:

from 1 inch -----45 inch.

Length:

Max 6 meters.

Slot size

Slot size

Radian:

15º,30º,45º,60º,120º as your request

SS Vibrating Sieve Screen Plate for Filtration

Packaging and Transportation of SS Vibrating Sieve Screen Plate for Filtration:
