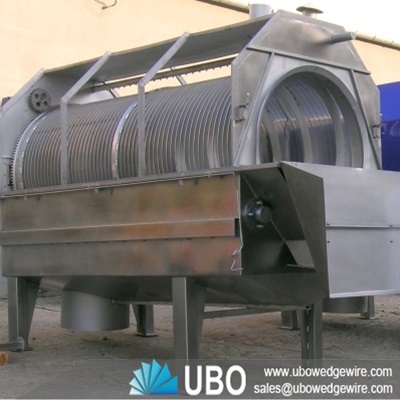

SS Rotary drum screen cylinders for water softener

   Drum screen used to separate materials by size, for example, separating the biodegradable fraction of mixed municipal waste or separating different sizes of mulch or crushed stone. Production rates can vary from 20 to 30 yards an hour to several hundred yards of material an hour based on number of factors described in this article.

Application for SS Rotary drum screen cylinders for water softener:

Drum screen is suitable for screening and classifying gravel, clay, mountain meal, sand, lump coal, coal dust, coal washing,lump,powder substance, etc. Drum screen is widely used in quarry, coal industry, chemical, mineral-selecting industry, metallurgy, construction and other industries

features for SS Rotary drum screen cylinders for water softener:

1. It is suitable to separate various materials included poor quality of coal, coal slime, or soot.
2. It do not require special facility and suitable for various material feeding methods.
3. It has higher efficiency by the installation of comb shape screen structure.
4. Cylindrical shape of screen provided larger surface area which has higher possibility of materials to contact with the screen mesh; therefore, it has higher capacity and more effective.
5. It is a energy saving equipment.

Working Principle for SS Rotary drum screen cylinders for water softener:

The screening tube is whirling in high speed by variable speed reducer system causing the materials to separate where the fine particle is passing through the opening part of the screening tube while the heavy and rough material is separated at the rear of the drum. Furthermore, GTS Drum screen consists of a comb shape screen structure which works simultaneity with screening tube to clean the screen continuously. By this action, the Drum screen is able to achieve clean, non-stick, no blocking performance along the operation.
