Processing customization high quality welded wedge wire screen

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Pipe
Application:petroleum, chemical, food, medicine, environmental protection, heavy machinery, film, water treatment, high temperature gas filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Processing customization high quality welded wedge wire screen

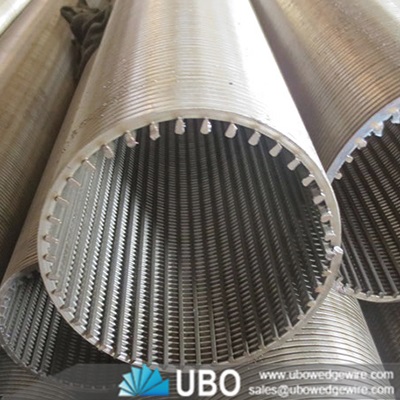

The welded continuous slot wedge wire screens are made up of rods and wire.


The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension.


At the same time, water well screens have heat-resistant, anti-corrosive, good machine capability, last long, safety and   reliability and so on characteristics. It can be used in many kinds of medium filtering.

Processing customization high quality welded wedge wire screen

Applications for Processing customization high quality welded wedge wire screen:

stainless steel wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,
many other liquids, solids separation applications.

Advantages for Processing customization high quality welded wedge wire scree:

1) Key-stone shaped slot pattern, low risk to plugging, easy to clean;

2) Superior resistant to corrosion and long lifespan in applications;

3) Optimized design for perforation, all welded structure, high mechanical strength which is competitive with casing of the same size;

4) Minimum slot opening: 0.1mm, which can satisfy the most of well-completion requirements.

5) High flow area;

6) The technical is mature, good adaptability.

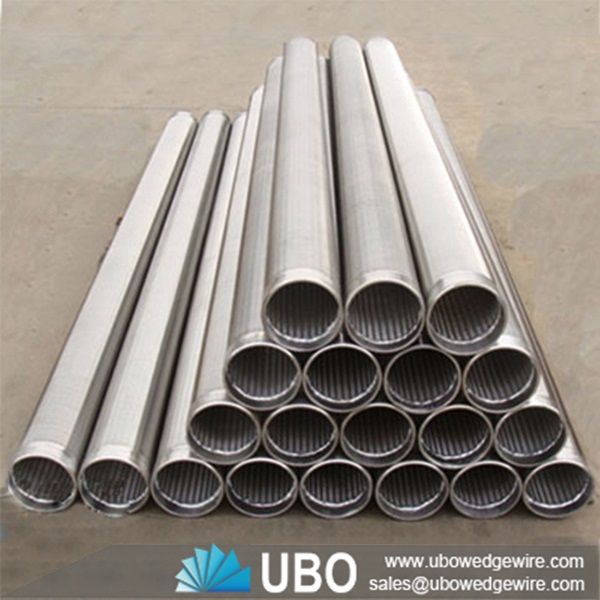

Processing customization high quality welded wedge wire screen

Specifications of Processing customization high quality welded wedge wire screen:

Processing customization high quality welded wedge wire screen


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Processing customization high quality welded wedge wire screen:

Processing customization high quality welded wedge wire screen

Processing customization high quality welded wedge wire screen
