welded wedge wire screens
Category: | Wedge Wire Screen Panel |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of welded wedge wire screens
The welded wedge wire screen can also be called Wedge Wire screen flat panel, wedge wire sieve bend screen,stainless steel screen plate.
The dewatering capacity of a welded wedge wire screen is primarily influenced by the screen width, the slot opening, and the wire size (width). Installation angle, feed velocity and uniform distribution across the screen are also very important.
Features of welded wedge wire screens
High strength
Excellent performance
Fine finish

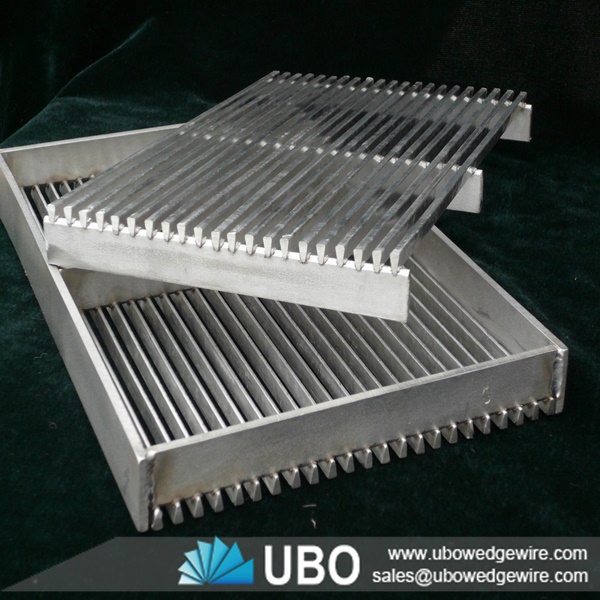

Typical static panels, including architectural panels, will have a surround frame welded around the screen
Typical vibrating panels will have angles welded down two sides of the panel and rubber vibration dampening strips glued to the top and bottom of the screen
Uses of welded wedge wire screens
It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

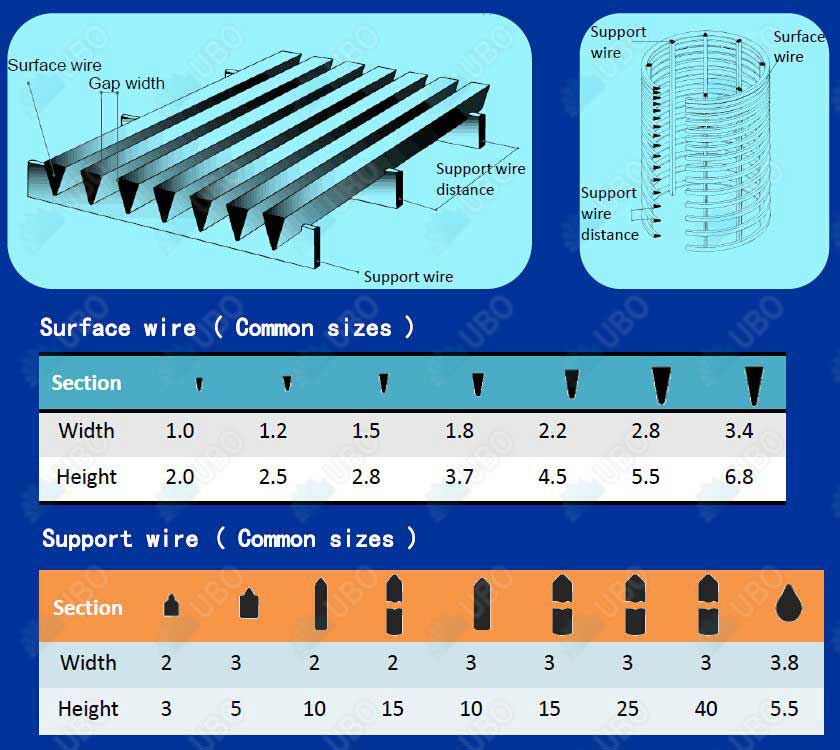

Specifications of welded wedge wire screens:
Slot size: 0.10, 0.15, 0.2, 0.25, 0.30mm, up to 3mm.
Open area: up to 60%.
Material: low carbon, low carbon galvanized steel (LCG) steel treated with plastic. spraying, stainless steel (304).
Lengths up to 6 meters.
Width: ranging from 25 to 2000mm.
