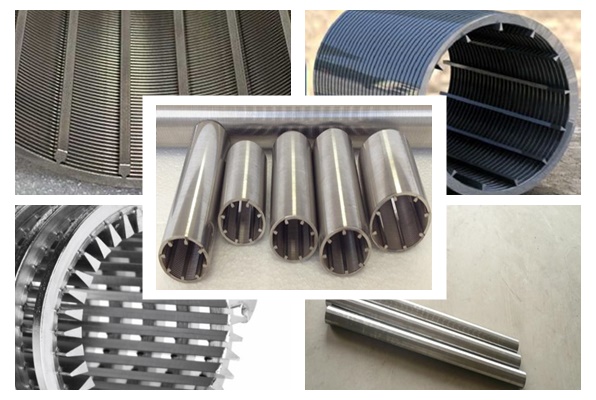

Intake screen pipe

More Views

Intake screen pipeIntake screen pipeIntake screen pipe

Intake screen pipe

Category:Wedge Wire Application
Material:stianless steel
Properties:wedge wire screen
Application:water filtration,oil filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

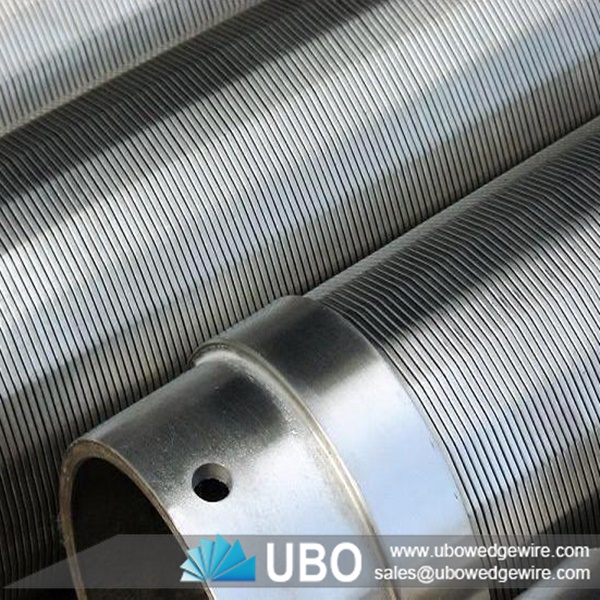

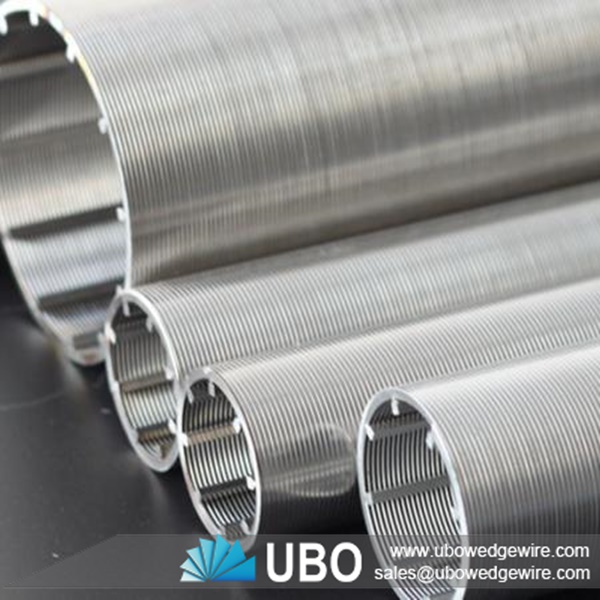

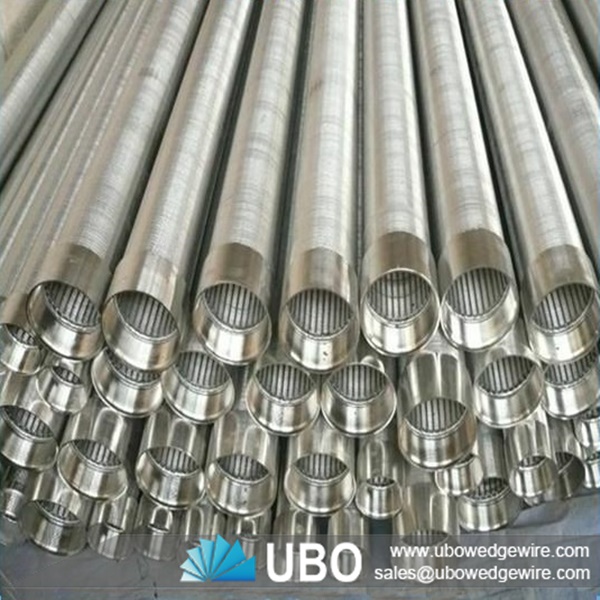

Details of Intake screen pipe

This screens are known in variety of names like: Water well screens, wedge wire well screens, v wire screens, continuous slot well screens, wire wrapped screens etc.
A wedge shaped wire is wrapped / spirally wound on internal array of support rods. Each and every intersection is welded automatically. This creates a continuous non clogging slot.

Characteristic of Intake screen pipe

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .

Usages of Intake screen pipe

1.) Widely used in vairous kinds of medium filtering
2.) As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
3.) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
4.) The organic solution recycling filter

           Intake screen pipe

Specifications of Intake screen pipe:

Diameter: 20-1200mm
Slot: 0.015-15mm
Length: 50-6000mm
Type: Reflexed Oil Screen tubes
Material: Stainless steel
Profile wire: V shape Wedge shap
Wire width: 1.5-3.7mm Customized accepted
Wire height: 2.2-6.3mm Customized accepted
Suppot rod: Wedge Round
Application: almost every industry

Support rods type:
1. Flat Screen with round support rods.
2. Flat Screen with rectangular support rods.
3. Screen Panel with side frame.
4. Heavy duty wedge wire.

Intake screen pipe

Packaging and Transportation of Intake screen pipe:

transport
