Filter nozzle for ion exchange

More Views

Filter nozzle for ion exchange

Category:Wedge Wire Application
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

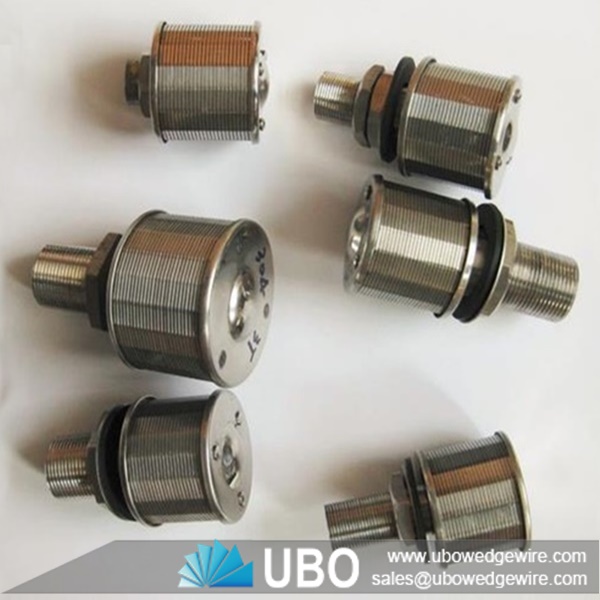

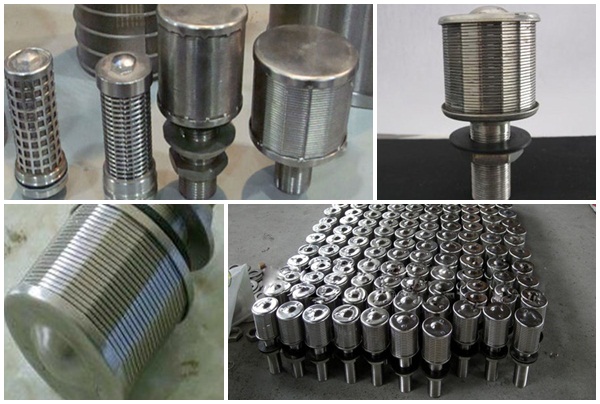

Details of Filter nozzle for ion exchange

Filter nozzles are widely used in various industries, especially suitable for water treatment or liquid filtration.The main part of the nozzle is stainless steel wedge wire screen . It’s a new type filter component.

Filter nozzles has a long life. The precise filter ratings are from 20 microns. It is made by welding with profile wire on every connection spots. According to diddferent application, There are many different kinds of connectors for the stainless steel nozzle.

Application of Filter nozzle for ion exchange

1 . Water well and oil/gas well
2 . water and waste water treatment
3 . Water supply
4 . Petro Chemical
5 . Food and beverage
6 . Pulp and paper
7 . Sugar and Starch

Feature of Filter nozzle for ion exchange

1.We use wedge-shaped profile wire in order to make the slot v-shaped.It can stop the impurities very well.

2.The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities

3.After work for a period of time, the filter can be back flush.It can use for many times.

Filtering direction from outside to inside (FOTI).

         Filter nozzle for ion exchange

Specifications of Filter nozzle for ion exchange:

Filter nozzle for ion exchange

Type DiameterD L L1 Slot Thread Open area
FYN1 45 98 34 0.2-0.25 M20 380-493
FYN2 45 100 34 0.2-0.25 M24 551-690
FYN3 53 100 34 0.2-0.25 M24 453-597
FYN4 53 100 50 0.2-0.25 M27 680-710
FYN5 53 105 34 0.2-0.25 M32 800-920
FYN6 57 115 35 0.2-0.25 M30 560-670
FYN7 57 120 55 0.2-0.25 M32 780-905
FYN8 60 120 55 0.2-0.25 G1″ 905-1100
FYN9 82 130 50 0.2-0.25 M33 1170-1280
FYN10 108 200 100 0.2-0.25 G2″ 3050-4600

Packaging and Transportation of Filter nozzle for ion exchange:
