AISI316L Drum Screens for municipal water

More Views

AISI316L Drum Screens for municipal waterAISI316L Drum Screens for municipal waterAISI316L Drum Screens for municipal water

AISI316L Drum Screens for municipal water

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:filter cartridge
Application: waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of AISI316L Drum Screens for municipal water

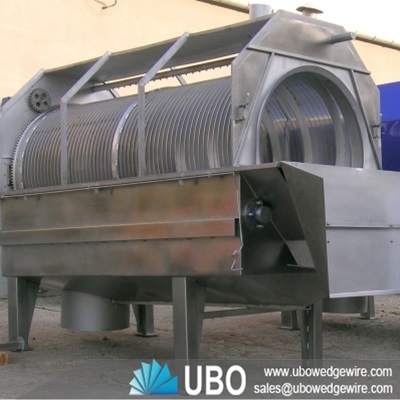

    Rotating trommel drums are commonly used to separate large amounts of solids from liquids,again the aperture of the screen will determine the size of the particles allowed to flow through the drum,rotating trommel drums work by getting slurry pumped into one end of the drum,as the drum rotates the smaller particles fall through the larger particles make their way to the end of th the drum as the drums are usually set up on a slight angle to help the material flow.

Application for AISI316L Drum Screens for municipal water:

Wedge Wire Rotary Drum Screen is always used in processing minerals such as ferrous metals including hematite & magnetite And nonferrous metals including Lead, Zinc, Gold and Silver etc.
Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
Chemical, Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.
Metallurgy, construction and other industries.

Features for AISI316L Drum Screens for municipal water:

1.Drum screen mesh is not easy to jam.
2.Smooth operation, low noise.
3.Simple structure, convenient maintenance.
4.Sieve tube can be closed, airtight dust easily.
5.The whole machine has high reliability, one-time investment is less.
6.Adopts special mesh, high screening efficiency, long service life.
productive process for factory v shaped wedge wire slot drum screen filter:

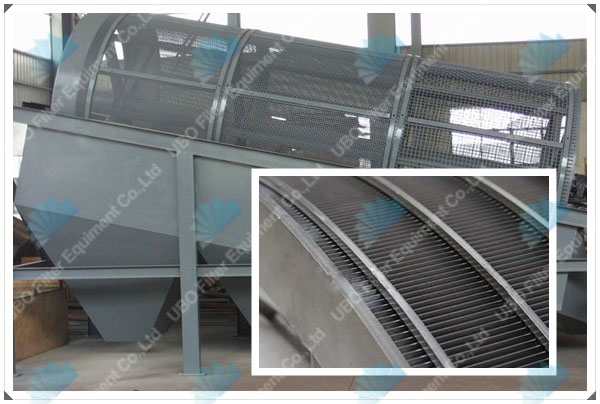

SS 304 wedge wire Rotary drum screen:

High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens

AISI316L Drum Screens for municipal water

Specifications of AISI316L Drum Screens for municipal water:

AISI316L Drum Screens for municipal water



Model
Mixed Juice Capacity (t/hr)
Drum Diameter (mm)
Drum Length (mm)
Drive (KW)
Feed (inlet) Size
Discharge (outlet)Size
Approx. Mass (kg)
WT610
40
600
1000
1.5
DN100
DN150
535
WT615
73
600
1500
1.5
DN100
DN150
650
WT1015
99
1000
1500
2.5
DN150
DN200
1050
WT1018
132
1000
1800
2.5
DN150
DN200
1170
WT1518
165
1500
1800
4.0
DN200
DN250
1775
WT1521
214
1500
2100
4.0
DN250
DN300
1940
WT1824
264
1500
1400
5.5
DN250
DN300
2130

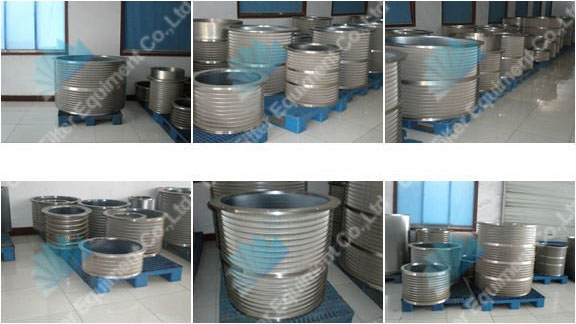

Packaging and Transportation of AISI316L Drum Screens for municipal water:

AISI316L Drum Screens for municipal water



AISI316L Drum Screens for municipal water



AISI316L Drum Screens for municipal water
