stainless steel Wedge wire slot tube for municipal water

More Views

stainless steel Wedge wire slot tube for municipal waterstainless steel Wedge wire slot tube for municipal waterstainless steel Wedge wire slot tube for municipal water

stainless steel Wedge wire slot tube for municipal water

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:stainless steel wedge wire
Application:the water well drilling, oil well drilling, farm irrigation, water-treatment, sewage treatment

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel Wedge wire slot tube for municipal water

   The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction

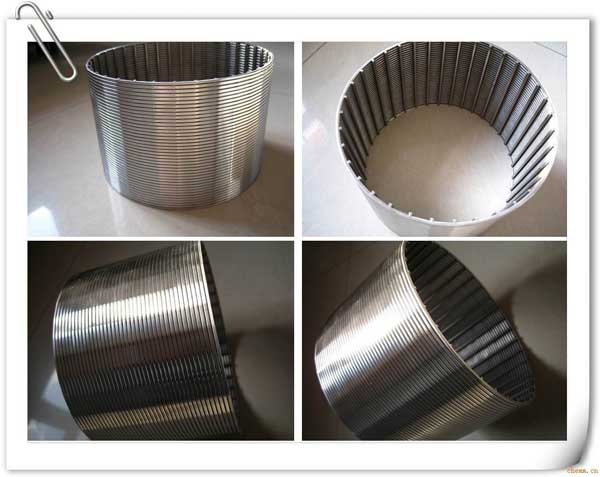

stainless steel Wedge wire slot tube for municipal water

Usage for stainless steel Wedge wire slot tube for municipal water:

The galvanized carbon steel wedge wire water well screen are mainly used for the water well drilling, oil well drilling, farm irrigation, water-treatment, sewage treatment, mineral processing and other industries, water,oil filter and other filtration equipment.

Advantages for stainless steel Wedge wire slot tube for municipal water:

When compared to conventional slotted pipe, Water Well Screens have superior open area due to their continuous slot openings. The benefits of which will :
Reduce energy consumption and increase water flow.
Reduce erosion of entry surfaces and increase well life.
Allow a uniform and efficient well development.
Reduce significantly potential pump damage and subsequent maintenance costs.
A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone (the aquifer)
A "V" shaped profile wire which avoids clogging and ensures an uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.

Characteristics for stainless steel Wedge wire slot tube for municipal water:

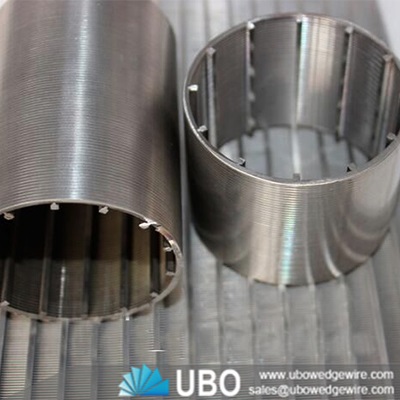

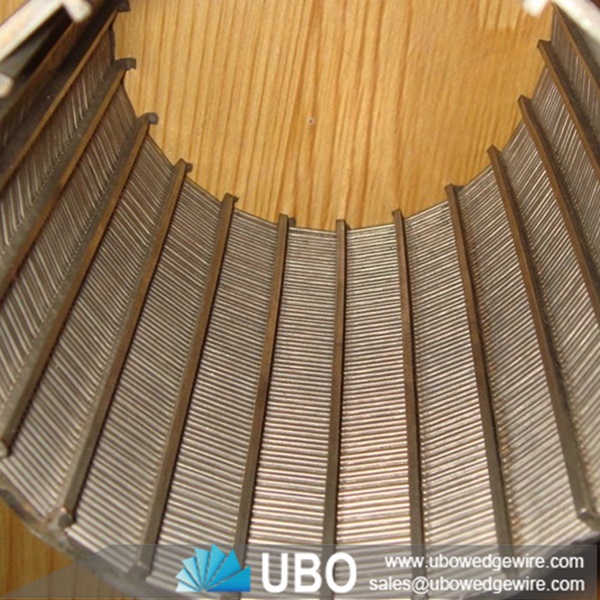

Its' material is stainless steel.The profile wire wraps around internal array of longitudinal support rods.Each intersecting point of these wires is fusion welded.
The profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening. So the screen can allow water and oil to enter the well freely.And at the same time,it keeps the majority of the sand and gravel out of the well.The length and the thickness are according to the customers' requirements.

Operation principle for stainless steel Wedge wire slot tube for municipal water:

The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water to enter the well freely in ample quantities while at the same time keeps the majority of sand and gravel out of the well.

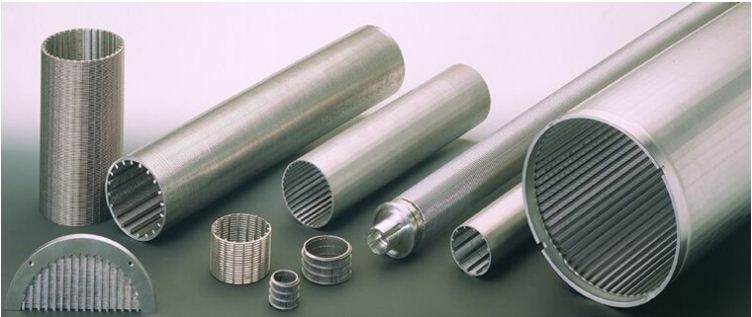

stainless steel Wedge wire slot tube for municipal water

Specifications of stainless steel Wedge wire slot tube for municipal water:

stainless steel Wedge wire slot tube for municipal water



Outside Diameter
Profile
wire
Rod
wire
Rod
quantity
Slot
size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25
45~3000
25
1
33.7
1.5*2
2*3
14
0.1~0.25
45~3000
32
1~1/4
42.4
1.5*2
2*3
16
0.1~0.25
45~3000
40
1~1/2
48.3
1.5*2
2*3
16
0.1~0.25
45~3000
50
2
60.3
1.5*2
2*3
18
0.1~0.5
45~3000
65
2~2/2
76.1
1.5*2
2*3
20
0.1~0.5
45~3000
80
3
88.9
1.8*2.5
2*3
24
0.1~0.5
45~3000
100
4
114.3
1.8*2.5
2*3
30
0.5~2
1000~6000
125
5
139.7
2.3*2.7
2*3
36
0.5~2
1000~6000
150
6
168.3
2.3*2.7
3*5
44
0.5~2
1000~6000
200
8
219.1
3.3*4.5
3*4.7
56
0.5~2
1000~6000
250
10
273
3.3*4.5
4*6
66
0.5~2
1000~6000
300
12
323.9
3.3*4.7
4*6
72
0.5~2
1000~6000
350
14
355.6
3.7*5
4*6
80
0.5~2
1000~6000
400
16
406.4
1.5*2
2*3
94
0.1~2
1000~6000
450
18
457
2*3
4*5
112
0.1~2
500~400
500
20
508
2*3
4*5
124
0.1~2
500~400
550
22
559
2*3
4*5
140
0.1~2
500~400
600
24
610
2*3
4*5
156
0.1~2
500~400
Siot:0.1mm~2mm    Tolerance:0.05

Packaging and Transportation of stainless steel Wedge wire slot tube for municipal water:

stainless steel Wedge wire slot tube for municipal water
