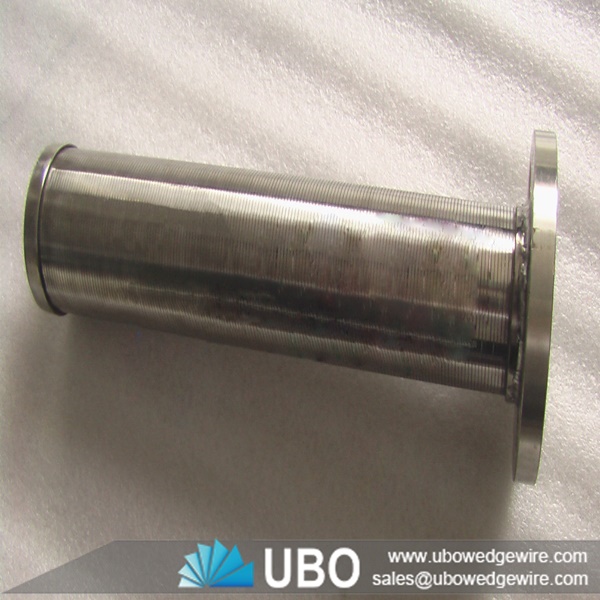

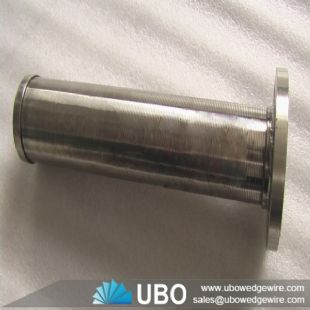

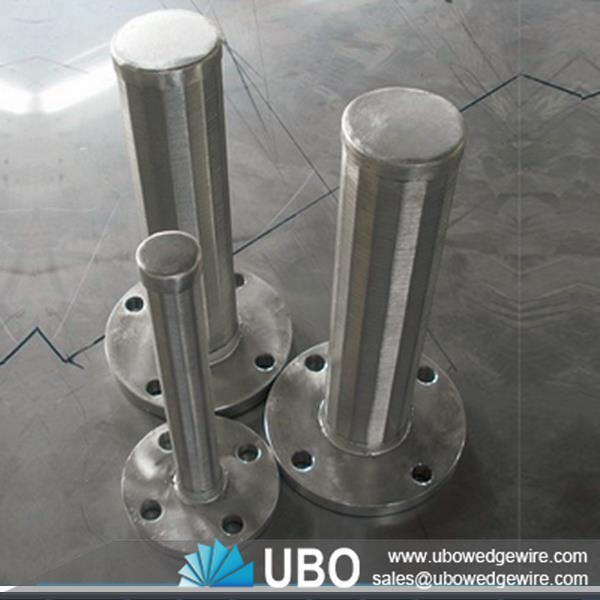

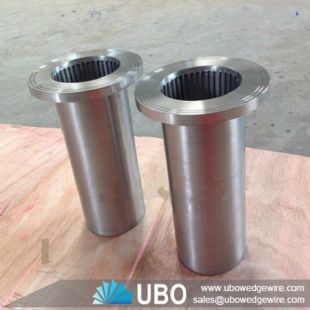

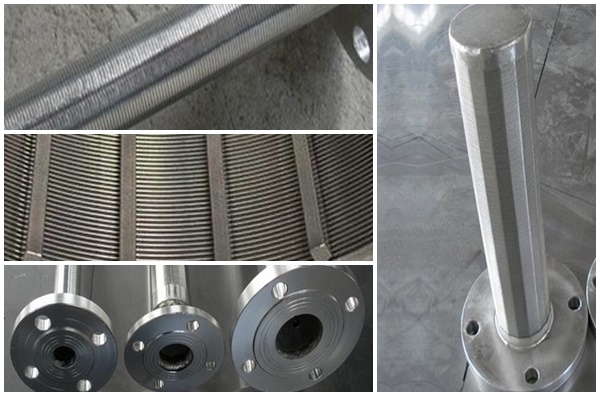

AISI 316 media trap for water treatment
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel |
Properties: | wedge wire screen |
Application: | water filtration,oil filtration,industry filtration |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of AISI 316 media trap for water treatment
The AISI 316 media traps are used down stream from ion exchange vessels and serve as a means of minimizing the loss of ion exchange resins. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly. UBO offers a complete range of resin trap styles to suit virtually any application. All are available in a full range of construction materials with a variety of connecting flanges and housings. In vessels using hydrochloric acid for regeneration, the resin trap must be of hastelloy construction.
Features of AISI 316 media trap for water treatment
-- Reduced costs, since wedge wire screens have a very long life.
-- Greater resistance to stresses of different pressure and temperature.
-- Maximum effective flow area & operating efficiency is maintained.
-- Costly downtime for cleaning plugged screens is minimize.
Applications of AISI 316 media trap for water treatment
-- Food & Beverage Screens
-- Mineral & Aggregate Processing
-- OEM Screen Components
-- Pulp & Paper Screens
-- Refining & Petrochemical
-- Water Process & Fluid Treatment
-- Water/oil Well
Specifications of AISI 316 media trap for water treatment:
Filtration precision: less than 6mm
Water volume for back-washing: less than 3% design flow
Hole shape: round
Length: R1 R2 R3,up to 6m
Wire type: wedge wire
Filter rating: 60% up
Slot size: 0.1min
Width: 1000mm
Thickness: 10mm
Diameter: 25-1500mm
Surface treatment: polishing,chroming
Connection: flange or thread, as your request
SIZE |
O.D(MM) |
SLOT(INCH) |
lENGTH(M) |
DIAMETER |
wRAP(MM) |
ROOD(MM) |
4 |
117 |
0.04 |
3 |
304/316 |
2.2*3 |
3.8MM/22 |
4 |
114.3 |
0.04 |
3 |
304/316 |
2.3*3 |
3.8MM/22 |
6 |
168.3 |
0.04 |
3 |
304/316 |
2.3*3.5 |
3.8MM/32 |
8 |
219.1 |
0.01 |
3 |
304/316 |
3.0*5 |
3.8MM/48 |
10 |
273.1 |
0.02 |
3 |
304/316 |
3.0*5.0 |
3.8MM/50 |
10 |
273.1 |
0.04 |
3 |
304/316 |
3.0*5.0 |
3.8MM/50 |
Packaging and Transportation of AISI 316 media trap for water treatment:
