AISI 316L Profile Screen Laterals electroplating rinse water

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Header Laterals
Application: waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of AISI 316L Profile Screen Laterals electroplating rinse water

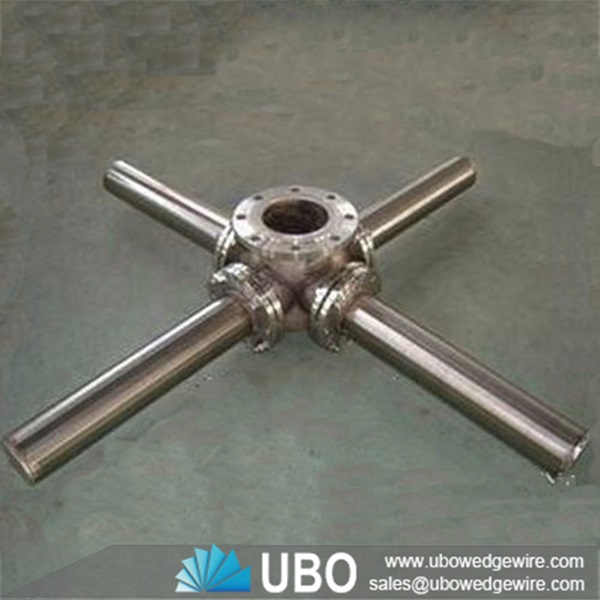

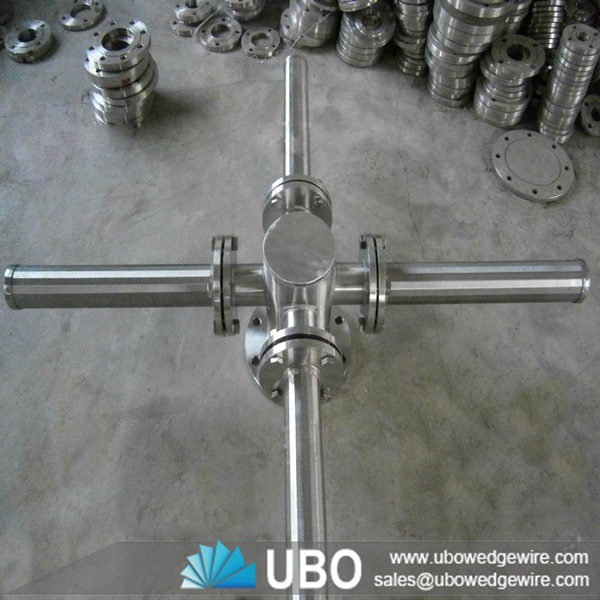

     Available as both Header Lateral and Hub lateral assemblies, wedge wire screen laterals and pipe based laterals can be connected to headers or hubs by the following methods : -standard NPT threaded connections -flanged connections. fabricated or ANSI -welded as one assembly Laterals are available in all standard pipe and tube outside diameters. Available in a variety of standard designs or can be customer designed to meet your requirements

Application for AISI 316L Profile Screen Laterals electroplating rinse water:

Application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Traditional laterals for AISI 316L Profile Screen Laterals electroplating rinse water:

With the advantage of the wrap wire screens pipe,large flow area, uniform water distribution, high mechanical strength,temperature resistance, pressure resistance, aging resistance,corrosion resistance have been greatly improved. Even if the branch pipe bending occurs, the resin still can’t flow out.Stainless steel wire slot size can be designed according to the resin size.

Feature for AISI 316L Profile Screen Laterals electroplating rinse water:

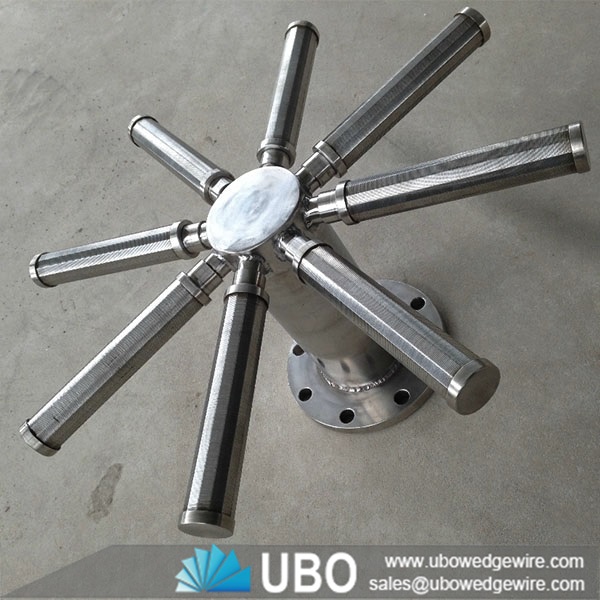

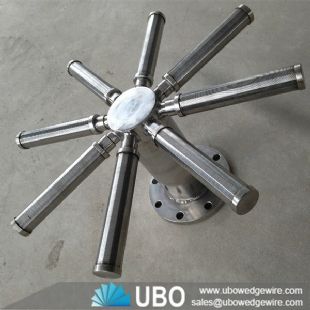

Hub Laterals can be designed for disc head vessels enabling the system to collect completely to the bottom of the vessel.
Header lateral design is also available for flat bottom vessel distributor or collector applications,All systems are designed for effective liquid or solid retention in a wide range of applications including ion exchangers, clay and sand filtration applications, carbon towers and power plants with water systems.

AISI 316L Profile Screen Laterals electroplating rinse water

Specifications of AISI 316L Profile Screen Laterals electroplating rinse water:

AISI 316L Profile Screen Laterals electroplating rinse water






No.

(mm)TYPE

OD

(mm)

 ID

(mm)

Support wire Number

Filter direction

1

SRD25.4

25.4

18.6

12

FOTI

2

SRD 33

33

24

8

FOTI

3

SRD 37

37

28

8

FOTI

4

SRD 40

40

31

8/10

FOTI/FITO

5

SRD 45

45

36

10/12

FOTI/FITO

6

SRD 48

48

38

12

FOTI/FITO

7

SRD 60

60

51

12

FOTI/FITO

8

SRD 70

70

61

12/18

FOTI/FITO

9

SRD 85

85

76

18

FOTI/FITO

10

SRD 110

110

101

24

FOTI/FITO

11

SRD120

120

111

24

FOTI/FITO

Packaging and Transportation of AISI 316L Profile Screen Laterals electroplating rinse water:

AISI 316L Profile Screen Laterals electroplating rinse water
