AISI 316 Wedge Wire water well screen pipe for vacuum infusion

Category:Wedge Wire Application
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Cylinder
Application: waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of AISI 316 Wedge Wire water well screen pipe for vacuum infusion

    Wedge Wire screen are made during simultaneous winding of specially profiled working wires on a spiral and welding them to carrying wires placed along the tube. This technology allows the production of wedge wire screens when very high gap precision and screen resistance are required. Due to using the newest welding technology we can obtain various distances between carrying wires, very accurate and repeatable gap and therefore produce screens according to customer’s particular requirements.

AISI 316 Wedge Wire water well screen pipe for vacuum infusion

Application for AISI 316 Wedge Wire water well screen pipe for vacuum infusion:

Wedge Wire wedge wire water well screen filter are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water,oil or gas filter and other filtration equipment.

Feature for AISI 316 Wedge Wire water well screen pipe for vacuum infusion:

1. Production process continuity: Vshaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.
2. Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.
3. Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.
4. Low operational costs: Large open area with an effective flow, high yield and a low pressure drop .
5. Long life: Welded at each intersection creating a strong and durable screen.
6. Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.
7. Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.

Characteristics for AISI 316 Wedge Wire water well screen pipe for vacuum infusion:

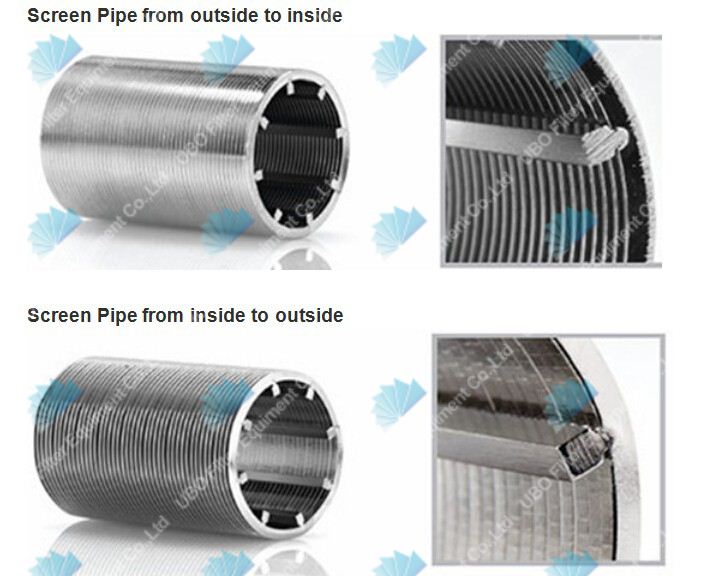

1.They consist of V-shape or wedge shape profile wire and the longitudinal support rods.
2.The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can filter sand better.
3.Each intersecting point of these wires is fusion welded, so it has sturdy construction and good mechanical property.

AISI 316 Wedge Wire water well screen pipe for vacuum infusion



AISI 316 Wedge Wire water well screen pipe for vacuum infusion

Specifications of AISI 316 Wedge Wire water well screen pipe for vacuum infusion:

AISI 316 Wedge Wire water well screen pipe for vacuum infusion



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

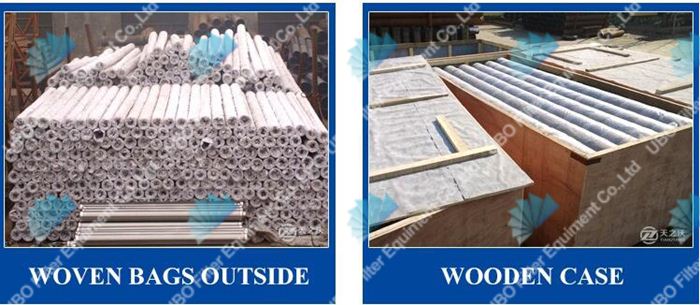

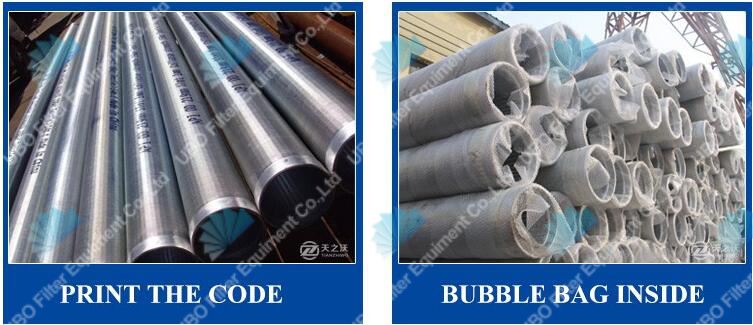

Packaging and Transportation of AISI 316 Wedge Wire water well screen pipe for vacuum infusion:

AISI 316 Wedge Wire water well screen pipe for vacuum infusion



AISI 316 Wedge Wire water well screen pipe for vacuum infusion



AISI 316 Wedge Wire water well screen pipe for vacuum infusion
