Quality Wedge Wire Screen Manufacturer in China

Wedge Wrapped Wire Screen Tube for Oil Filtration

More Views

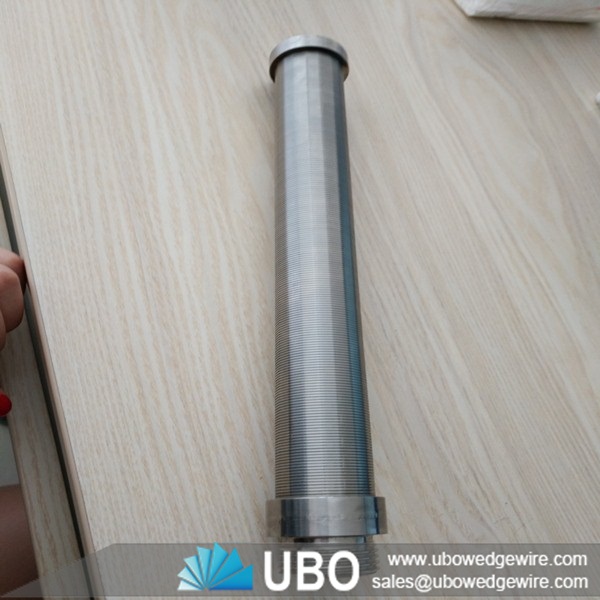

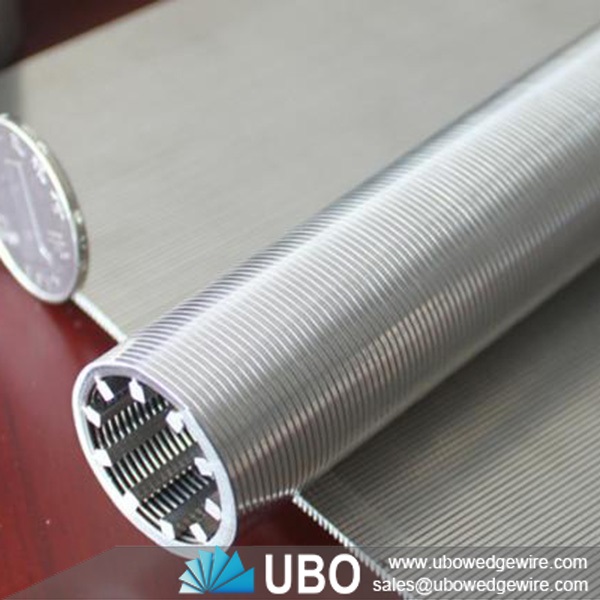

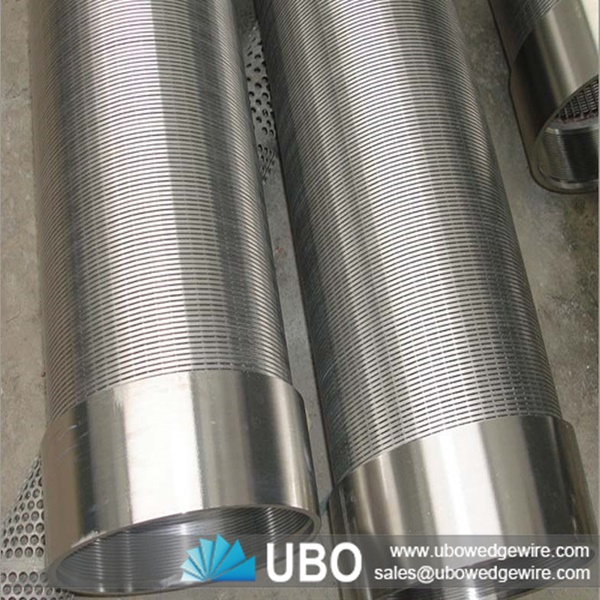

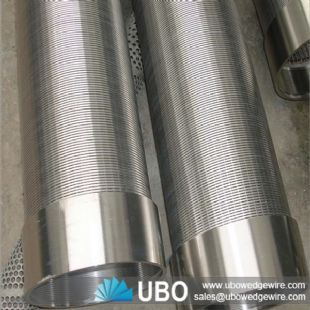

Wedge Wrapped Wire Screen Tube for Oil FiltrationWedge Wrapped Wire Screen Tube for Oil FiltrationWedge Wrapped Wire Screen Tube for Oil Filtration

Wedge Wrapped Wire Screen Tube for Oil Filtration

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen pipe
Application:water-treatment ,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wrapped Wire Screen Tube for Oil Filtration

The advanced wedge wrapped wire screen tube technology provides superior weld strength and accurate slot openings. The accurate V-shaped wires provide free flow and optimal sand control.
A large number of support rods increases tensile strength and achieves rounder and stronger screens.
The screen jacket is fully pickled and passivated for maximum corrosion resistance.

Application of wedge wrapped wire screen tube for oil filtration

Filter tube or wedge wire pipes are usually used as the water filter equipment. They are used in the deep well pump, submersible pump systems, they can also be used in water treatment equipment, environmental protection, the water of the sea into the industrial water and domestic water desalination treatment, water treatment, water softening treatment, oil chemical industry: the terminal filtration of oil products and chemical acid, alkali liquid filtration, alcohol and other organic solution of recycling.

Features of wedge wrapped wire screen tube for oil filtration

1.Filter pipe with high porosity is more efficient for the construction of water, oil and gas wells.
2.Filter pipe with low operating costs and high porosity is more conducive to groundwater infiltration, and plenty of deep water make the water level drop reduced, thereby reducing energy consumption.
3.Reducing pump wear, under the same conditions, the high porosity makes groundwater infiltration rate in the filter pipe penetration rate more slowly compared to other filtration apparatus, thus avoiding the sand enter the filter pipe in the larger pressure,reducing pump wear.
4.to extend the life of the well, relatively speaking, a high groundwater infiltration drainage pipe filter pores easier, low flow rate, extending the life of the well.

Wedge Wire screen type wedge wrapped wire screen tube for oil filtration

Wedge Wire screen type wedge wrapped wire screen tube for oil filtration

Wedge Wire screen type wedge wrapped wire screen tube for oil filtration

Specifications of Wedge Wrapped Wire Screen Tube for Oil Filtration:

Wedge Wire screen type wedge wrapped wire screen tube for oil filtration

Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50

Packaging and Transportation of Wedge Wrapped Wire Screen Tube for Oil Filtration:

Wedge Wire screen type wedge wrapped wire screen tube for oil filtration
