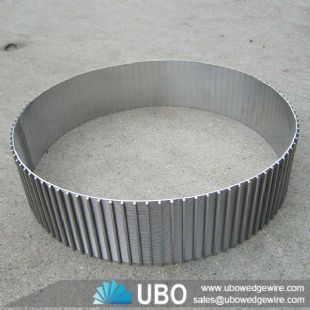

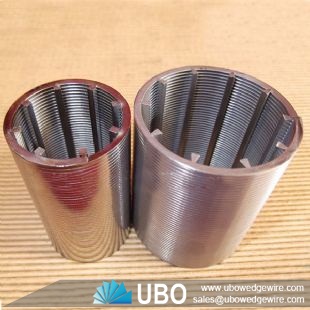

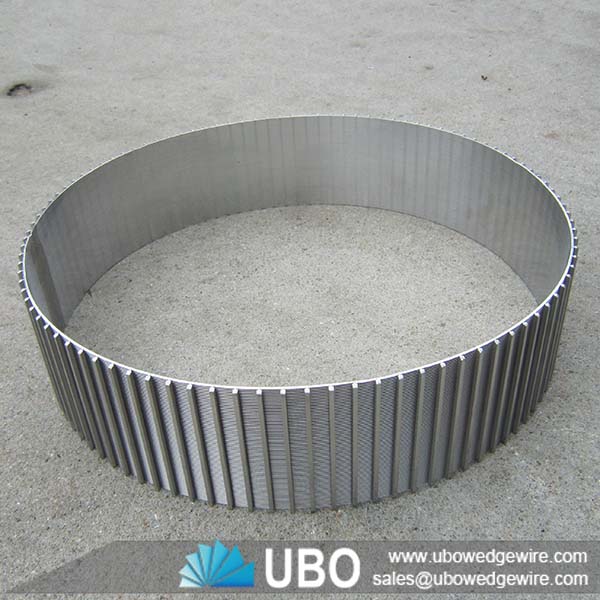

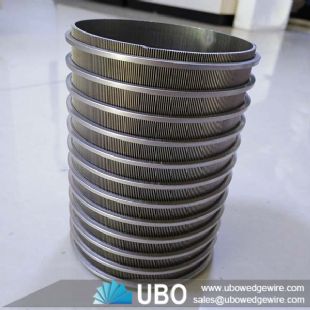

Wedge Wire Slotted Screen Tube Strainer

More Views

Wedge Wire Slotted Screen Tube StrainerWedge Wire Slotted Screen Tube StrainerWedge Wire Slotted Screen Tube Strainer

Wedge Wire Slotted Screen Tube Strainer

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen pipe
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Slotted Screen Tube Strainer

Wedge Wire slotted screen tube strainers are welded by profile V-wire and support wires,it is also called Wedge Wire screen. It has large filter area because of big opening,Wedge Wire structure are easy for automatic back washing and avoid pipe blocking.The pressure will be reduced when water flows in for greater filter area,avoid the grains of sand flow in the wedge wire tube in the high pressure conditions,so extend the pipe's life . Between the same length,diameter and slot size,wedge wire pipe is thrice than bridge filter pipes. Moreover, we have inside perforated metal and wedge wire tube outside filter.

Wedge Wire wedge wire slotted screen tube strainer

Feature of Wedge Wire slotted screen tube strainer

-- High mechanical strength can bear large pressure drop
-- Equal slots for filtering can form equally distributed filter cake
-- The wedge type slot can improve back flushing and regeration performance
-- It has resistant to pressure temperature aging corrusion can be applied for different kinds of fluid.

Advantages of Wedge Wire slotted screen tube strainer

The wedge tapered opening becomes progressively wider increasing dewatering efficiency.
Non plugging,to make sure the smooth circulation.
Slot sizes ranging form0.05mm to 20mm.
Durable and capable of carrying heavier loads without support structures.
One piece construction.
Wide range of materials.
Easy to clean,long service life,safe and reliable,low comprehensive cost.

Application of Wedge Wire slotted screen tube strainer

Mine Sieving Mesh Usage: Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.

Wedge Wire wedge wire slotted screen tube strainer

Wedge Wire wedge wire slotted screen tube strainer

Specifications of Wedge Wire Slotted Screen Tube Strainer:

Wedge Wire wedge wire slotted screen tube strainer

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Heigh(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Heigh(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

stainless steel (304,316 etc.) or carbon steel

Length

 up to 6 meters.

Diameter

 from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Wedge Wire Slotted Screen Tube Strainer:

Wedge Wire wedge wire slotted screen tube strainer
