Wedge Wire Pipe V Wire Wrap Screen Tube

More Views

Wedge Wire Pipe V Wire Wrap Screen TubeWedge Wire Pipe V Wire Wrap Screen TubeWedge Wire Pipe V Wire Wrap Screen Tube

Wedge Wire Pipe V Wire Wrap Screen Tube

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel and low carbon steel, such as 304 302 304L 316 316L
Properties:wedge wire screen
Application:water, oil, and gas wells, and for environmental well completions

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Pipe V Wire Wrap Screen Tube

The advanced wire wrapped screen technology provides superior weld strength and accurate slot openings. The accurate V-shaped wires provide free flow and optimal sand control.
A large number of support rods increases tensile strength and achieves rounder and stronger screens.
The screen jacket is fully pickled and passivated for maximum corrosion resistance.

Used for Wedge Wire pipe V wire wrap screen tube:

The stainless steel Wedge Wire water well screen pipe is used throughout the world for water, oil, and gas wells, and for environmental well completions. It is the dominant screen type used in the water well industry.

Advantages of Wedge Wire pipe V wire wrap screen tube:

When compared to conventional slotted pipe, Water Well Screens have superior open area due to their continuous slot openings. The benefits of which will :
Reduce energy consumption and increase water flow.
Reduce erosion of entry surfaces and increase well life.
Allow a uniform and efficient well development.
Reduce significantly potential pump damage and subsequent maintenance costs.

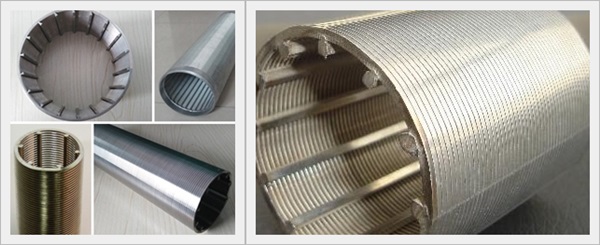

Characteristics of Wedge Wire pipe V wire wrap screen tube:

1.They consist of V-shape or wedge shape profile wire and the longitudinal support rods.
2.The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can filter sand better.
3.Each intersecting point of these wires is fusion welded, so it has sturdy construction and good mechanical property.

Wedge Wire pipe V wire wrap screen tube wedge wire screen

Specifications of Wedge Wire Pipe V Wire Wrap Screen Tube:

Wedge Wire pipe V wire wrap screen tube wedge wire screen

Specifications:
1.Materials: stainless steel and low carbon steel, such as 304 302 304L 316 316L Q235, and they can be made according to the customers requirement.
2.Diameter:33-600mm (1-20inch)
3.Slot:0.05,0.1,0.2,0.5,0.75,1,1.5,2mm
4.Length:1-10m(5.8m for the 20ft container)
5.Standard: ISO, API
6.Connection: Welding, Thread (STC,LTC,BTC),Flange
7.Supply capacity:6800m/month contact: xxhdzg16 at live dot cn
8. First class technology, High quality, Competitive price, Fast delivery
Meanwhile, the specification of products can change according to the real condition of the earth.
If you are interested in our product, please contact us for more information.

Packaging and Transportation of Wedge Wire Pipe V Wire Wrap Screen Tube:

Wedge Wire pipe V wire wrap screen tube wedge wire screen
