Stainless Steel Wrapped Water Well Wedge Wire Screen Tube

More Views

Stainless Steel Wrapped Water Well Wedge Wire Screen TubeStainless Steel Wrapped Water Well Wedge Wire Screen TubeStainless Steel Wrapped Water Well Wedge Wire Screen Tube

Stainless Steel Wrapped Water Well Wedge Wire Screen Tube

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen pipe
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wrapped Water Well Wedge Wire Screen Tube

Stainless Steel Mesh Wedge Wrap Wire Water Well Wedge Wire Screen Tube is manufactured by a V or wedge shaped wire around an internal array of longitudinal support rods. Each intersection point of this wire is fusion welded. The V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities while at the same time keeps the majority of sand and gravel out of the well.

Stainless Steel Mesh Wedge Wrap Wire Water Well Wedge Wire Screen Tube

Features of Stainless Steel Wrapped Water Well Wedge Wire Screen Tube

1) The V-shape section plane of Wedge wire screen pipe (Wedge Wire screens) creates the continuous slot, which can avoid blockage and make sure of the unimpeded water.

2) The consecutive slot of Wedge wire screen pipe (Wedge Wire screens) have wider open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so it can control sand better, which can increase the water yield and prolong service time of the well.

3) Wire and support rods are all-welded, which makes the Wedge wire screen pipe (Wedge Wire screens) more robust and longer life.

4) The longitudinal support rods and the continuous slot make the Wedge wire screen pipe (Wedge Wire screens) have more excellent pressure-resistant performance.

5) Specifications and end connections of Wedge wire screen pipe (Wedge Wire screens) can be fabricated according to customers’ requirements.

Applications of Stainless Steel Wrapped Water Well Wedge Wire Screen Tube

Wedge wire tubes can be employed in almost all industrial processes which require very fine and uniformly accurate aperture, combining rapid discharge of material and high mechanical strength. Some of the specialized applications of these screens are given below -
Wedge wire screen used in industries for water, oil filtration equipments like
Filteration Equipments
Filtration Systems.
Filters.
Wedge Wire Screen.

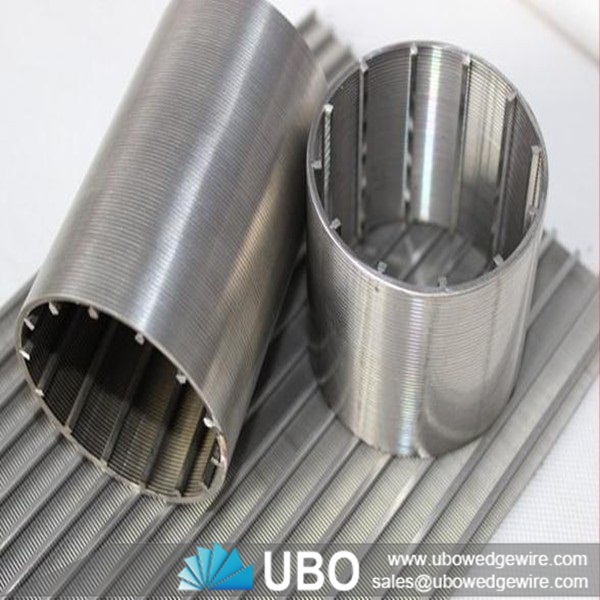

Stainless Steel Mesh Wedge Wrap Wire Water Well Wedge Wire Screen Tube

Stainless Steel Mesh Wedge Wrap Wire Water Well Wedge Wire Screen Tube

Specifications of Stainless Steel Wrapped Water Well Wedge Wire Screen Tube:

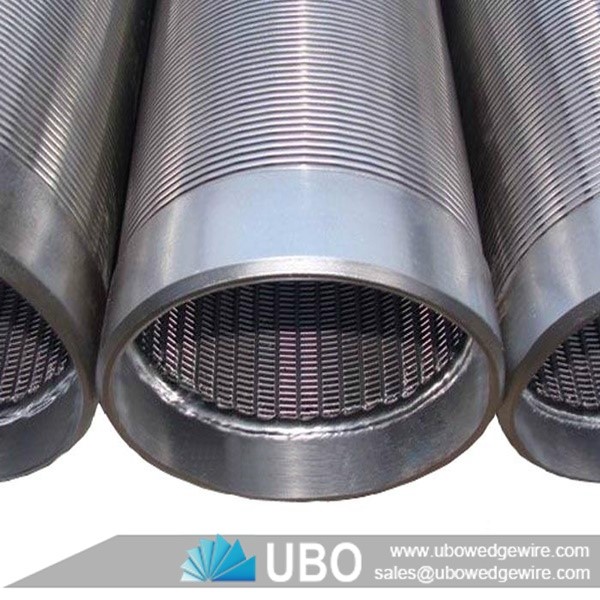

Stainless Steel Mesh Wedge Wrap Wire Water Well Wedge Wire Screen Tube

Specifications;
Gap:0.02-8.10mm
OD:19-1200mm
Length:20-6000mm
Nominal diameter: Can be customized according to customer’s requirements
Tolerance clearance:±0.1mm curing 120°
Material: 304,304L,316,316L,904L,2205,2507,hastelloy-c276,etc.
Mesh selection: wedge wire mesh

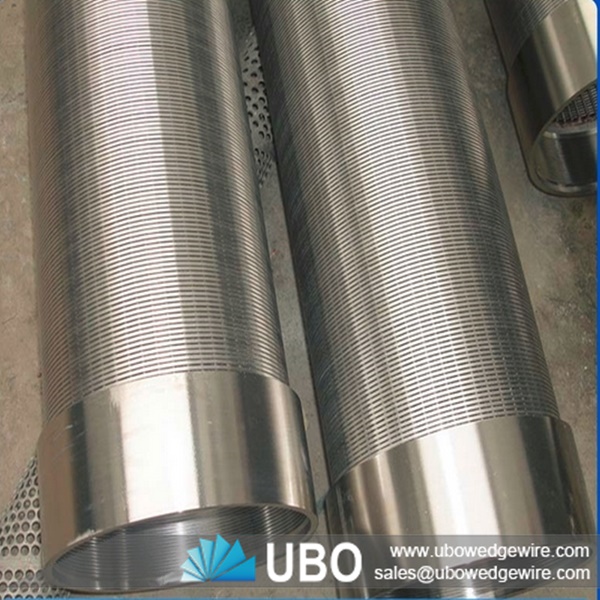

Stainless Steel Mesh Wedge Wrap Wire Water Well Wedge Wire Screen Tube

Packaging and Transportation of Stainless Steel Wrapped Water Well Wedge Wire Screen Tube:

Stainless Steel Mesh Wedge Wrap Wire Water Well Wedge Wire Screen Tube
