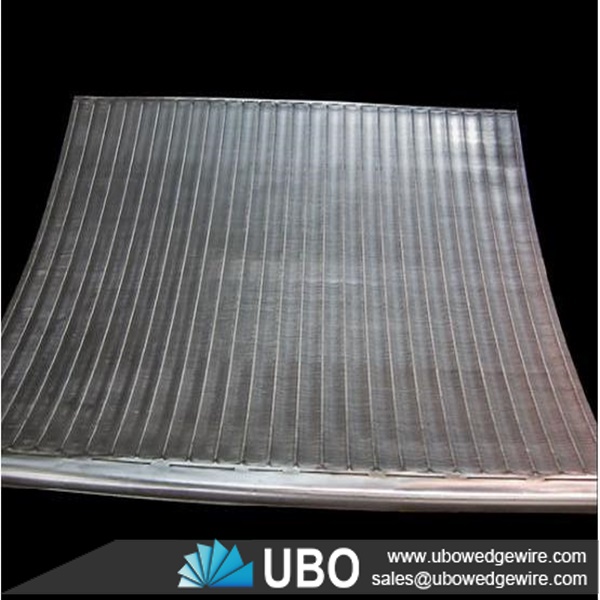

wedge wire screen parabolic sidehill screen

More Views

wedge wire screen parabolic sidehill screenwedge wire screen parabolic sidehill screenwedge wire screen parabolic sidehill screen

wedge wire screen parabolic sidehill screen

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen parabolic sidehill screen

Wedge wire screen parabolic sidehill screen  has a greater screeing capactity than a flat screen due to forces exerted as material flows against the curved surface.

This curved profile wire screen is mounted in a frame with the screen openings perpendicular to the flow.
In a typical feed situation,the leading edge of the wedge wire removes the water and fine particles through the over sized particles move across the top of the screen.

Separeation size in considerably smaller than screen openings,usually about one-half the opening size.
Sieve bend screens are ideal for sizing and dewatering applications in liquid/solid separation situations.It is extensively used for fine fiber removal in the starch industry.It also is used in other industries such as food processing waste water cleanup and corn wet milling.

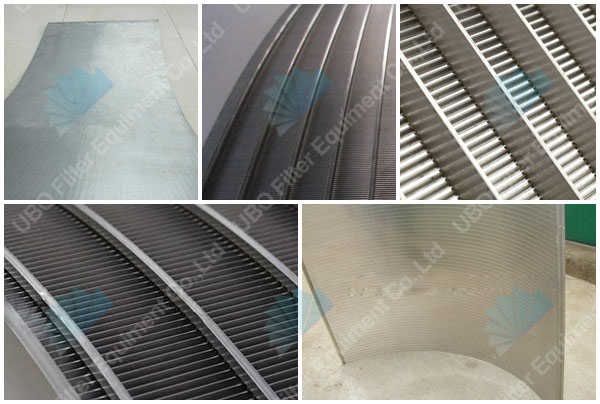

wedge wire screen parabolic sidehill screen

Benefits of wedge wire screen parabolic sidehill screen

Reduced equipment and installation costs
Low mantenance costs(No moving parts)
Better flow rate and finer fiber removal
Little space needed
Wide range of applications
Longer liftetime

Features of wedge wire screen parabolic sidehill screen

Width,length,aperture and wire depend on flow rate and size of particles to be separated.
Slot sizes range from 0.025mm to 10mm
Screen material is typically 304/316 SS with end bars.Other materials are available upon request.

Application of wedge wire screen parabolic sidehill screen

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.
Used for fiber removal in Starch industry.

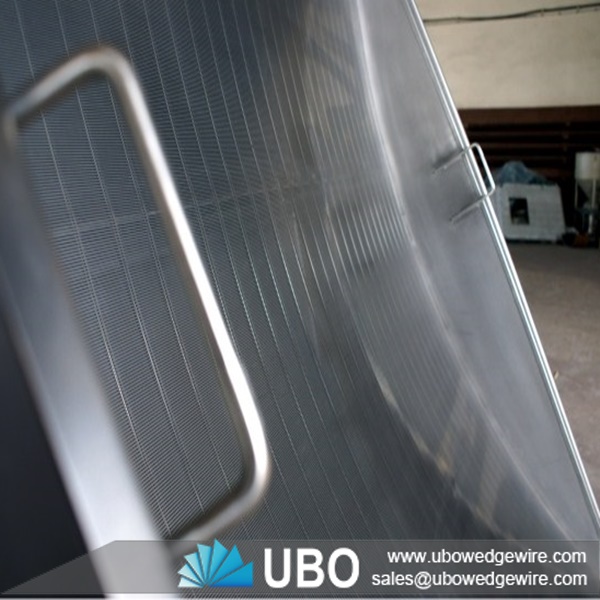

wedge wire screen parabolic sidehill screen

Specifications of wedge wire screen parabolic sidehill screen:

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

60º  120º or according to your special requirement

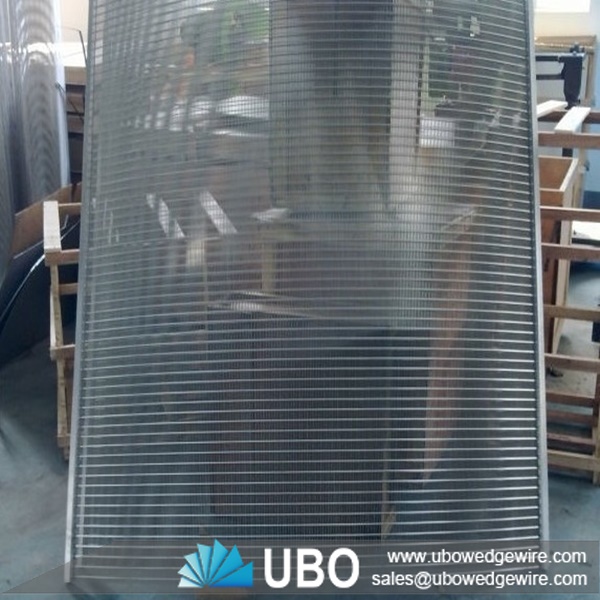

wedge wire screen parabolic sidehill screen

Packaging and Transportation of wedge wire screen parabolic sidehill screen:
