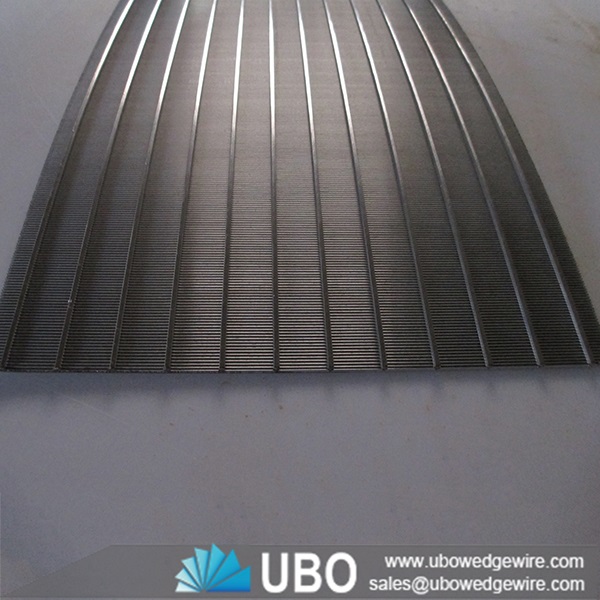

stainless steel wedge wire run down screen

More Views

stainless steel wedge wire run down screenstainless steel wedge wire run down screenstainless steel wedge wire run down screen

stainless steel wedge wire run down screen

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel wedge wire run down screen

Stainless steel wedge wire run down screen have another name as DSM sreens.Sieve bends are manufactured to suit a wide range of industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Widely used for fiber removal in Starch industry.

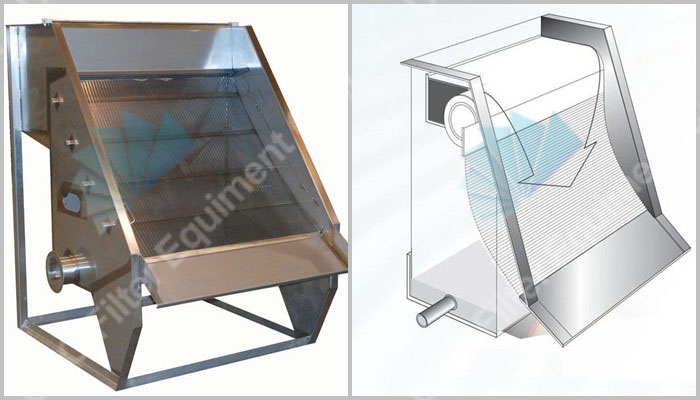

A wedge wire run down screen consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

Features of stainless steel wedge wire run down screen

Energy Efficient – operates with no moving parts and with no energy input.
Space Efficient – treats up to 122 litres per second per square metre of floor space.
Quiet Operation – no moving parts means no mechanical or electrical vibrations.
Accurate Sizing – can be used for sizing solid particles down to 20 micros.
Low Maintenance – the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement – a typical screen can be replaced in 10 minutes with no tools.
Flexible Design – we can supply units with any features you may require.

Applications of stainless steel wedge wire run down screen

Our wedge wire run down screens  are used in various food processing applications as well as for the de-watering of waste water in meat, poultry and vegetable processing industries.

It can be used in the starch industry,water-treating equipment,the environment protection,the running water treatment,water softening treatment,the liquid filters and so on the organic solution recycling filters.

stainless steel wedge wire run down screen

Specifications of stainless steel wedge wire run down screen:

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

60º  120º or according to your special requirement

stainless steel wedge wire run down screen

Packaging and Transportation of stainless steel wedge wire run down screen:

transportation
