Wire Mesh Wedge Wire curved surface screen filter

More Views

Wire Mesh Wedge Wire curved surface screen filterWire Mesh Wedge Wire curved surface screen filterWire Mesh Wedge Wire curved surface screen filter

Wire Mesh Wedge Wire curved surface screen filter

Category:Sieve Bend Screen
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wire Mesh Wedge Wire curved surface screen filter

Wire Mesh Wedge Wire curved surface screen filter has a greater screeing capactity than a flat screen due to forces exerted as material flows against the curved surface.

This Wire Mesh Wedge Wire curved surface screen filter is mounted in a frame with the screen openings perpendicular to the flow.
In a typical feed situation,the leading edge of the wedge wire removes the water and fine particles through the over sized particles move across the top of the screen.

Wire Mesh Wedge Wire curved surface screen filter can be re-used repeatedly. The precise filter ratings are from 20 micrion. Besides of this flat one, UBO screen filter are also available in the form of tubes, panels, filter cylinders and bags and special filter elements. It is made by welding with profile wire on every connection spots.

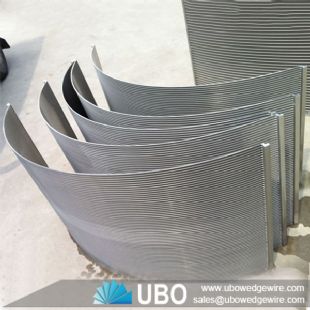

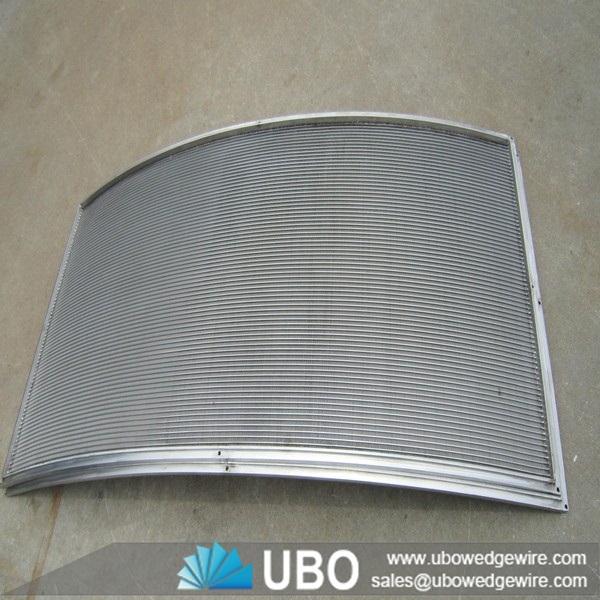

Wedge Wire Wedge Wire curved surface screen filter

Wedge Wire Wedge Wire curved surface screen filter

Application of Wire Mesh Wedge Wire curved surface screen filter

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.
Used for fiber removal in Starch industry.

Features of Wire Mesh Wedge Wire curved surface screen filter

Wedge Wire Dsm Sieve Bend Screen For Water and Effluent Treatment is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.

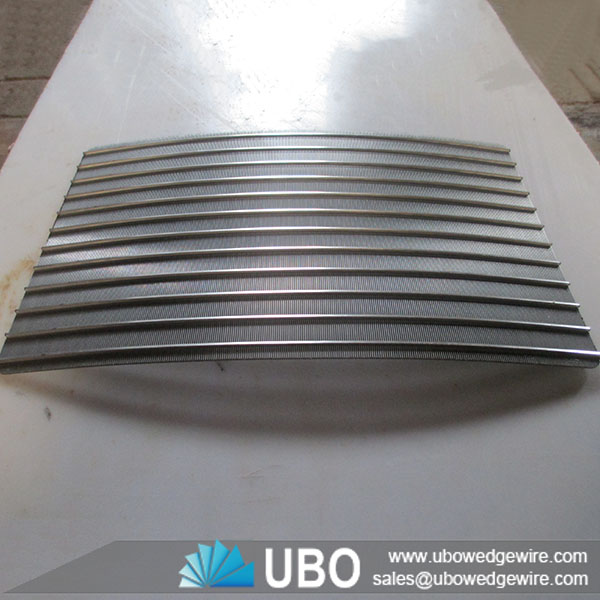

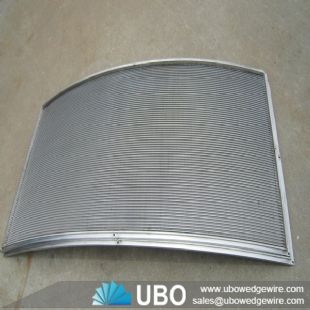

Wedge Wire Wedge Wire curved surface screen filter

Wedge Wire Wedge Wire curved surface screen filter

Wedge Wire Wedge Wire curved surface screen filter

Specifications of Wire Mesh Wedge Wire curved surface screen filter:

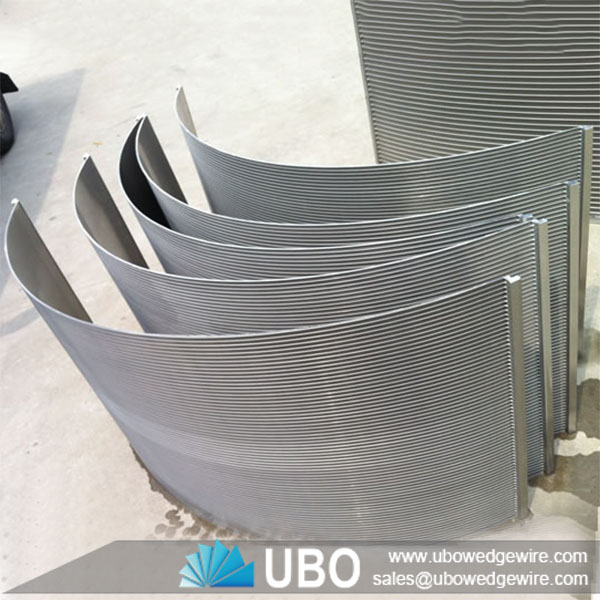

Wedge Wire Wedge Wire curved surface screen filter

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

60º  120º or according to your special requirement

Packaging and Transportation of Wire Mesh Wedge Wire curved surface screen filter:

Wedge Wire Wedge Wire curved surface screen filter
