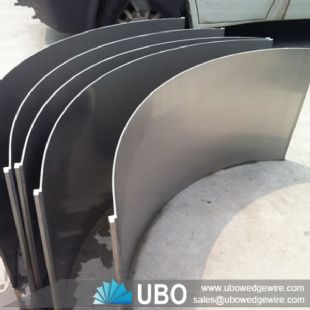

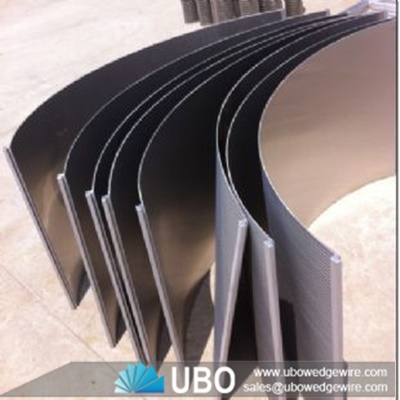

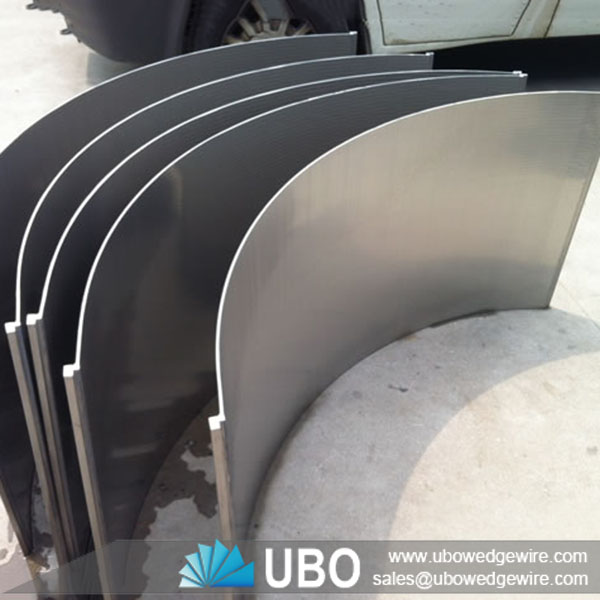

Wedge Wire wedge v wire sieve bend curved screen plate for food processing

More Views

Wedge Wire wedge v wire sieve bend curved screen plate for food processingWedge Wire wedge v wire sieve bend curved screen plate for food processingWedge Wire wedge v wire sieve bend curved screen plate for food processing

Wedge Wire wedge v wire sieve bend curved screen plate for food processing

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment ,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire wedge v wire sieve bend curved screen plate for food processing

Wedge Wire wedge v wire sieve bend curved screen plate also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery.


Wedge Wire wedge v wire sieve bend curved screen plate of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

Wedge Wire wedge v wire sieve bend curved screen plate for food processing

Wedge Wire wedge v wire sieve bend curved screen plate for food processing

Application of Wedge Wire wedge v wire sieve bend curved screen plate for food processing

Wedge wire dsm screens in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.

Feature of Wedge Wire wedge v wire sieve bend curved screen plate for food processing

Reduced equipment and installation costs
Low mantenance costs(No moving parts)
Better flow rate and finer fiber removal
Little space needed
Wide range of applications
Longer liftetime

Wedge Wire wedge v wire sieve bend curved screen plate for food processing

Wedge Wire wedge v wire sieve bend curved screen plate for food processing

Specifications of Wedge Wire wedge v wire sieve bend curved screen plate for food processing:

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

120º

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Wedge Wire wedge v wire sieve bend curved screen plate for food processing:

Wedge Wire wedge v wire sieve bend curved screen plate also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery.
