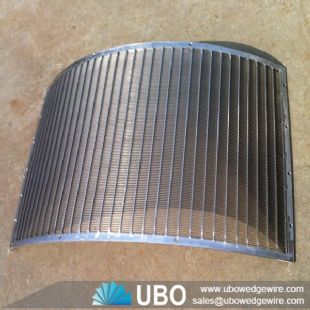

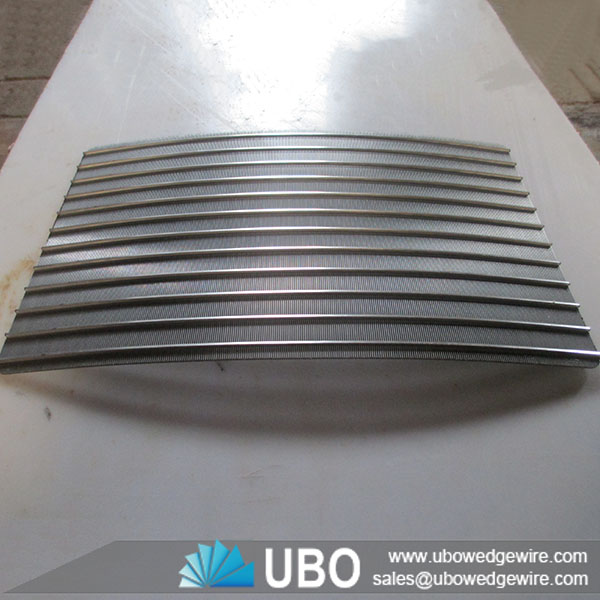

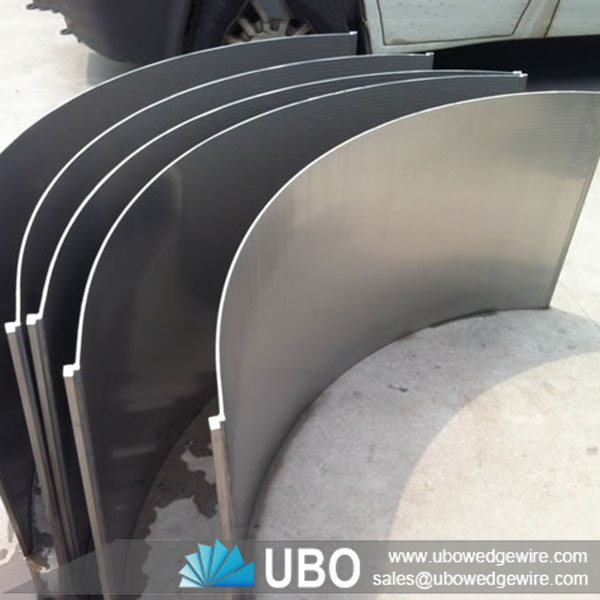

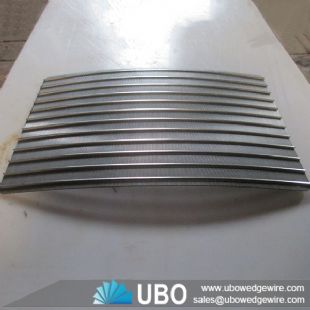

Wedge Wire arc sieve bend screen plate for aquaculture application

More Views

Wedge Wire arc sieve bend screen plate for aquaculture applicationWedge Wire arc sieve bend screen plate for aquaculture applicationWedge Wire arc sieve bend screen plate for aquaculture application

Wedge Wire arc sieve bend screen plate for aquaculture application

Category:Sieve Bend Screen
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire arc sieve bend screen plate for aquaculture application

Wedge Wire arc sieve bend screen plates are ideal for sizing and dewatering applications to remove solids from liquids, or in solid/solid separation for dry feed situations.
Wedge Wire arc sieve bend screen plate can be manufactured in a variety of widths, arc lengths, apertures or wedge wires to suit the flow rate and material being separated. Although most applications require Static Sieve Bends, "Cross Flow", "With Flow" and "Vibrating" Sieve Bends can also be manufactured.

Features of Wedge Wire arc sieve bend screen plate for aquaculture application

1. Working with the water gravity, no energy consumption
2. High water treatment capacity
3. Not easy to be blocked and easy to clean
4. Using stainless steel, it has high mechanical strength and long life.

Usage of Wedge Wire arc sieve bend screen plate for aquaculture application

The Sieve Bend Screen is commonly used in food processing and corn wet milling plants. In the corn wet milling process, CP Screens precisely manufactures the 120 Degree DSM Screen which is simple in shape, just like the common Sieve Bend Screen, however its very fine slot openings commonly 75 and 100 µm, are very critical.

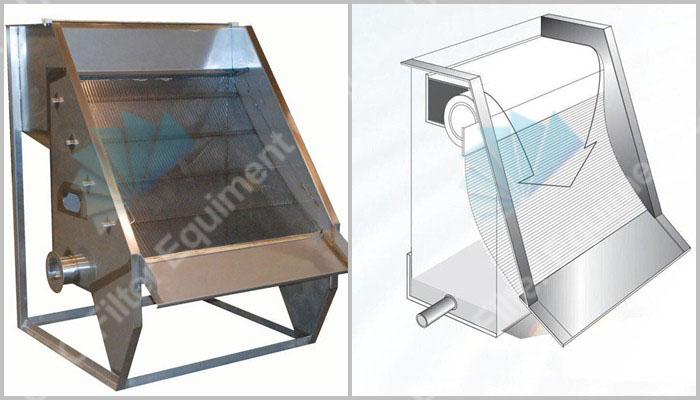

Wedge Wedge Wire arc sieve bend screen plate for aquaculture application
Wedge Wedge Wire arc sieve bend screen plate for aquaculture application
Wedge Wedge Wire arc sieve bend screen plate for aquaculture application

Specifications of Wedge Wire arc sieve bend screen plate for aquaculture application:

Wedge Wedge Wire arc sieve bend screen plate for aquaculture application

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

Length Range

Up to 6000mm

Width Range

Up to 6000mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5x2.5

2x3

2x4

3x5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5*2.5

2x3

2x3

3*5

3x5

3x5

4*6

5*8

Angle

90°,120°,140°,150°,160° etc.

Arc height

10mm,15mm,20mm,50mm or depend on you size of screen panel.

Frame

No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request.

Note

Customized according to requirement

Packaging and Transportation of Wedge Wire arc sieve bend screen plate for aquaculture application:

Wedge Wedge Wire arc sieve bend screen plate for aquaculture application
