Wedge Wire Static Sieve Bend Screen For Water and Effluent Treatment

More Views

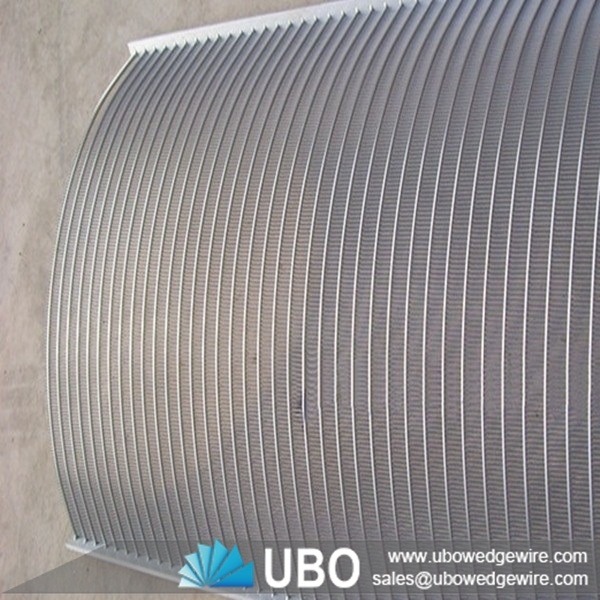

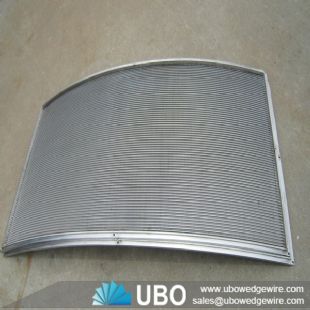

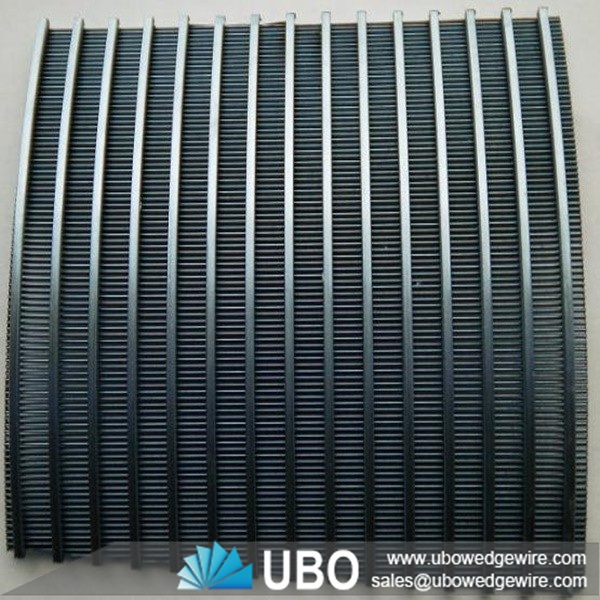

Wedge Wire Static Sieve Bend Screen For Water and Effluent TreatmentWedge Wire Static Sieve Bend Screen For Water and Effluent TreatmentWedge Wire Static Sieve Bend Screen For Water and Effluent Treatment

Wedge Wire Static Sieve Bend Screen For Water and Effluent Treatment

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Static Sieve Bend Screen For Water and Effluent Treatment

Wedge wire static sieve bend screen can be fabricated in a range of both flat panels and tubes. Wedge-wire and support profiles are resistance welded with accurate slot dimensions. The screens can be mechanically and electropolished, and given additional surface hardening treatments. Further support structures and fastening brackets, can be added. Tubes can have various end piece connections and additional internal strengthening. Thin wire tubes can be made for the support of other filter media, such as filter cloths.

Applications of Wedge Wire Static Sieve Bend Screen for Water and Effluent Treatment

V- Wire Screen is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.

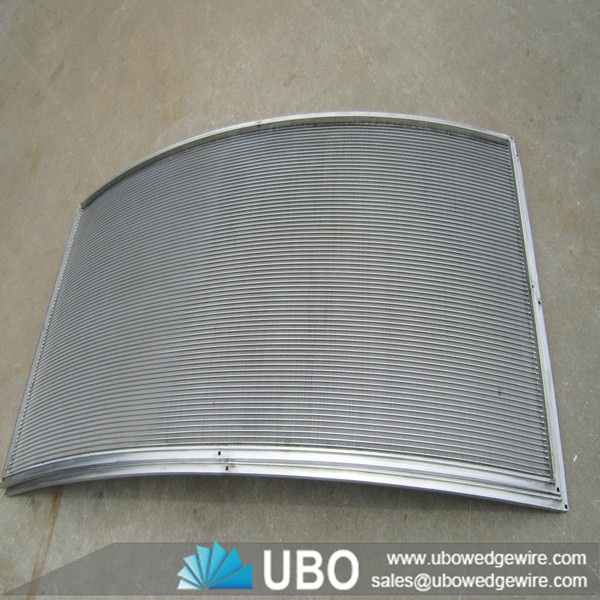

Wedge Wire Static Sieve Bend Screen For Water and Effluent Treatment

Advantages of Wedge Wire Static Sieve Bend Screen

-- A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.

-- A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.

-- A uniform and efficient well development due to the continuous slot opening.

-- Offering great strength. precision, long service life.

Constructions of Wedge Wire Static Sieve Bend Screen

-- A combination of different support profiles and pitches within one flat screen is possible

-- Variable spacing between support wires in one screen

-- Curved screens; curve direction and filtration direction are to be determined by the customer.

-- Frames and reinforcements can be designed and calculated on request

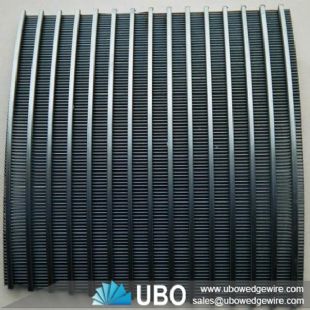

Wedge Wire Static Sieve Bend Screen For Water and Effluent Treatment

Specifications of Wedge Wire Static Sieve Bend Screen For Water and Effluent Treatment:

Wedge Wire Static Sieve Bend Screen For Water and Effluent Treatment


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

120º

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Wedge Wire Static Sieve Bend Screen For Water and Effluent Treatment:

Package: in wood case

Delivery: 10-20 days
