Quality Wedge Wire Screen Manufacturer in China

Wedge Wire Screen Parabolic Screen

More Views

Wedge Wire Screen Parabolic ScreenWedge Wire Screen Parabolic ScreenWedge Wire Screen Parabolic Screen

Wedge Wire Screen Parabolic Screen

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen Parabolic Screen

Wedge wire screen parabolic screen is manufactured by a V or wedge shaped wire around an internal array of longitudinal support rods. Each intersection point of this wire is fusion welded. The V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening

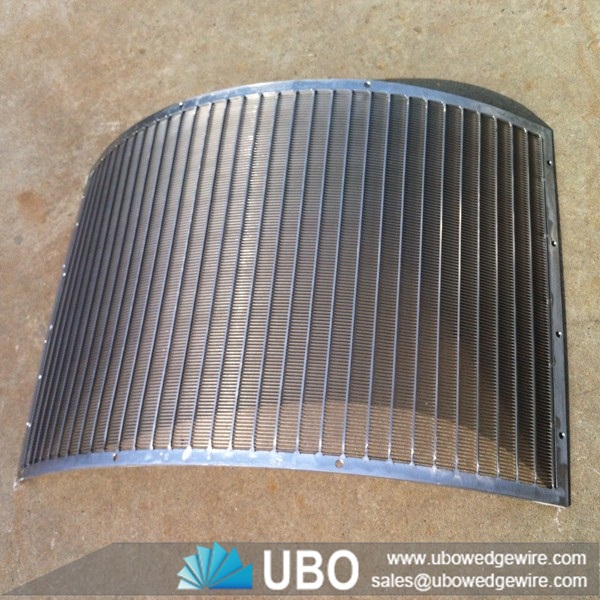

Wedge wire screen parabolic screen

Wedge wire screen parabolic screen

Usages of Wedge Wire Screen Parabolic Screen

It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Features of Wedge Wire Screen Parabolic Screen

-- High mechanical strength

-- High wear resistance

-- High impact resistance

-- Larger open area

-- Self-supporting structure

-- Non-plugging slot design

-- Lower operation and maintenance cost

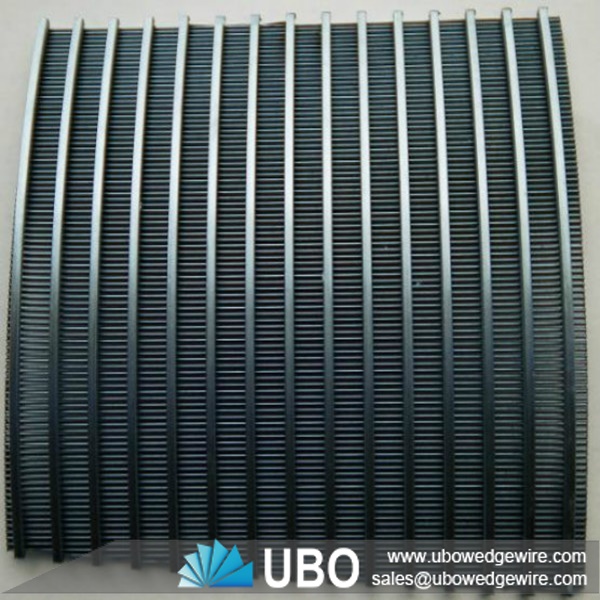

Wedge wire screen parabolic screen

Specifications of Wedge Wire Screen Parabolic Screen:





Wedge Wire Screen Parabolic Screen

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Width:

from 1 inch -----45 inch.

Length:

Max 6 meters.

Slot Size

Slot size

Radian:

120º,60º,45º as your request

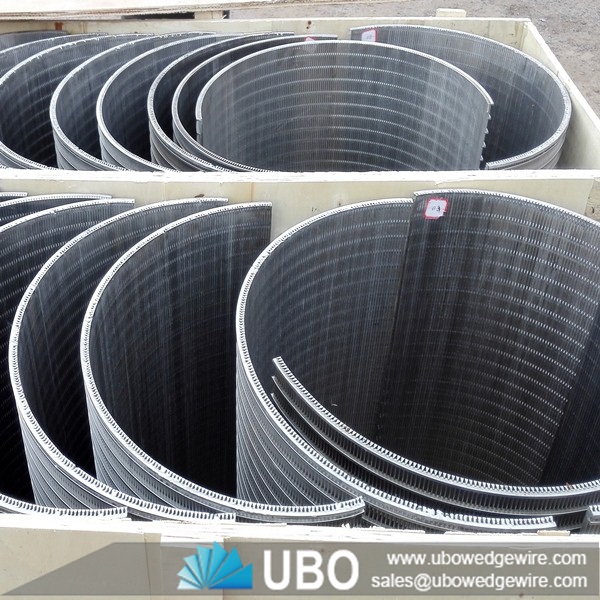

Packaging and Transportation of Wedge Wire Screen Parabolic Screen:

Package: in wood case

Delivery Time:5-25 days
