Wedge Wire Parabolic Filter for Aquaculture

More Views

Wedge Wire Parabolic Filter for AquacultureWedge Wire Parabolic Filter for AquacultureWedge Wire Parabolic Filter for Aquaculture

Wedge Wire Parabolic Filter for Aquaculture

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen panel
Application:water-treatment, water well drilling, oil well drilling, mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Parabolic Filter for Aquaculture

Wedge wire parabolic filter is a high efficiency curve separate madia by wet material pressure.


Vee wedge wire screen have high strenthen and carrying capacity,the V wire make sure the screen will not block,easy clean, working very long time. The Wedge wire parabolic filter made by UBO with high accuracy are widely used in many industries.

Material: AISI 302,AISI 304,AISI 304L,AISI 316,AISI 316L.

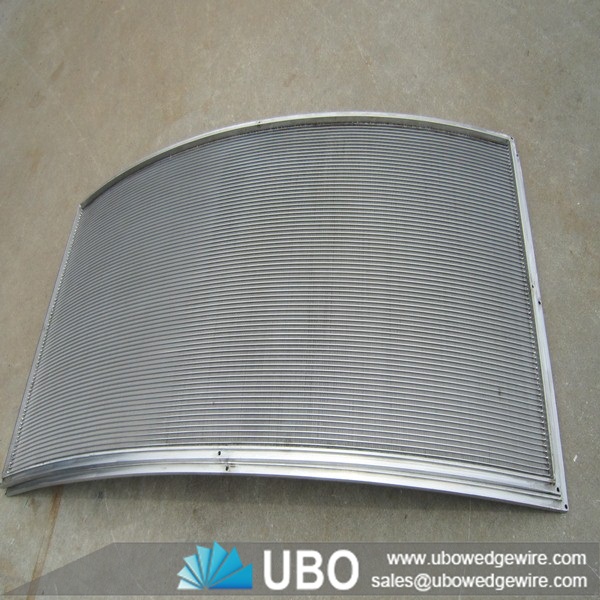

Wedge wire parabolic filter for aquaculture

Advantages of Wedge Wire Parabolic Filter for Aquaculture

1) flatness to within tight tolerances

2) no weakening of the welds, because of flattening (and no stress corrosion problems as a result)

3) accurate distance between support profiles

4) possibility of different support wires in one screen

5) possibility of variable spacing between support wires in one screen

Constructions of Wedge Wire Parabolic Filter for Aquaculture

1) A combination of different support profiles and pitches within one flat screen is possible

2) Variable spacing between support wires in one screen

3) Curved screens; curve direction and filtration direction are to be determined by the customer.Frames and reinforcements can be designed and calculated on request, provided that we know the temperature, supports and differential pressure.

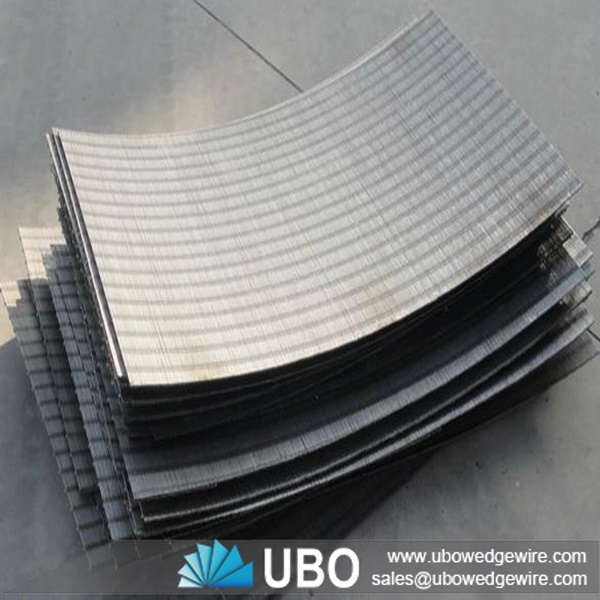

Wedge wire parabolic filter for aquaculture

Specifications of Wedge Wire Parabolic Filter for Aquaculture:

Item

Technical

Specification

1

Sieve

Width(mm)

605

800

1000

1200

1500

1800

2000

2

Sieve Length(mm)

800

800

800

800

800

800

800

3

Sieve angle(mm)

50°

50°

50°

50°

50°

50°

50°

4

Flow rate(m3/h)

15-25

45-85

55-110

65-130

80-160

100-180

120-220

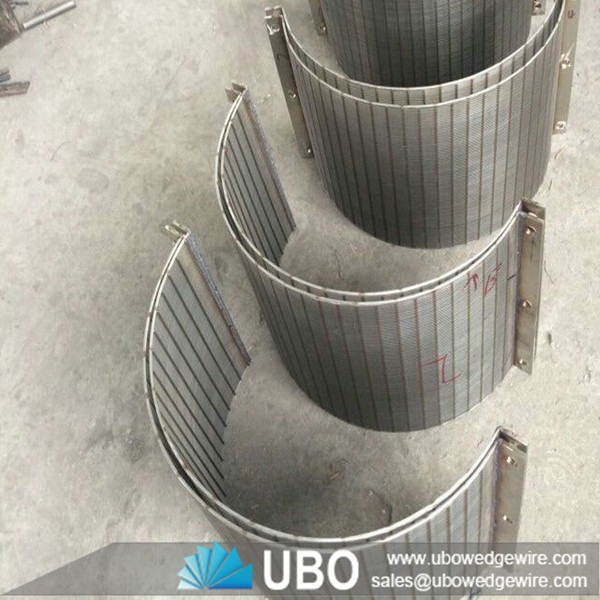

Wedge wire parabolic filter for aquaculture

Packaging and Transportation of Wedge Wire Parabolic Filter for Aquaculture:

transportation
