Wedge Wire Curved Screen Plate for Waste Water Treatment

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen panel
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Details of Wedge Wire Curved Screen Plate for Waste Water Treatment

Wedge Wire Curved Screen Plate for Waste Water Treatment  is called Wire mesh screen ,filter wire mesh ,are widely used in various industries, especially suitable for low maintenance applications as sieves and filters. It’s a new type filter component fabricated from the Fine Mesh Slot Opening Stainless Steel Wedge Wire filtration products.

Wedge Wire Curved Screen Plate  can be re-used repeatedly. The precise filter ratings are from 20 micrion. Besides of this flat one, SLOT-CHINA screen filter are also available in the form of tubes, panels, filter cylinders and bags and special filter elements. It is made by welding with profile wire on every connection spots.

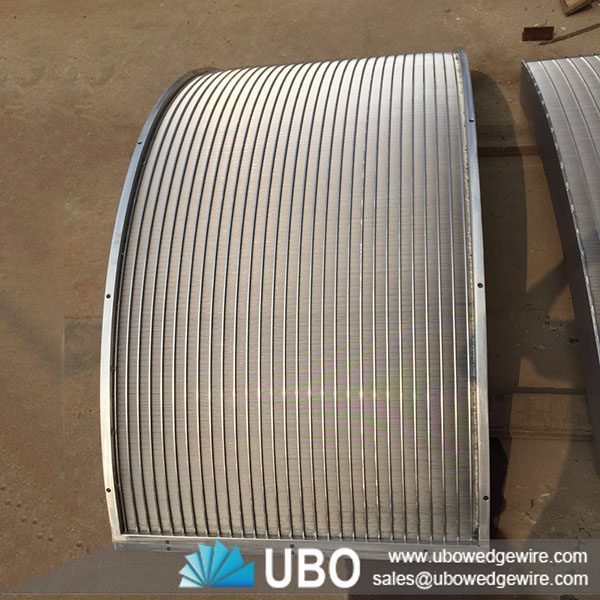

Wedge wire curved waste water treatment screen plate

Applications of Wedge Wire Curved Screen Plate for Waste Water Treatment

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.

Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.

Used for fiber removal in Starch industry.

Features of Wedge Wire Curved Screen Plate for Waste Water Treatment

-- flatness to within tight tolerances

-- no weakening of the welds, because of flattening (and no stress corrosion problems as a result)

-- accurate distance between support profiles

-- possibility of different support wires in one screen

-- possibility of variable spacing between support wires in one screen

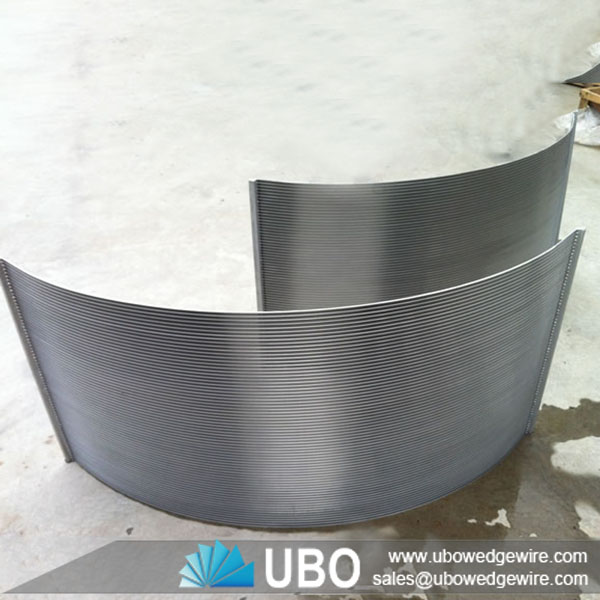

Wedge wire curved waste water treatment screen plate

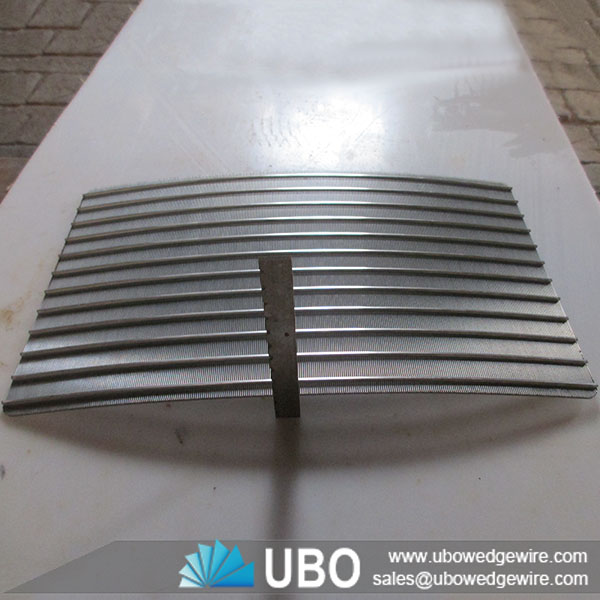

Wedge wire curved waste water treatment screen plate

Wedge wire curved waste water treatment screen plate

Specifications of Wedge Wire Curved Screen Plate for Waste Water Treatment:

Wedge wire curved waste water treatment screen plate

Item

Technical

Specification

1

Sieve

Width(mm)

605

800

1000

1200

1500

1800

2000

2

Sieve Length(mm)

800

800

800

800

800

800

800

3

Sieve angle(mm)

50°

50°

50°

50°

50°

50°

50°

4

Flow rate(m3/h)

15-25

45-85

55-110

65-130

80-160

100-180

120-220



Wedge wire curved waste water treatment screen plate

Packaging and Transportation of Wedge Wire Curved Screen Plate for Waste Water Treatment:

Package: in wood case

Delivery Time: 5-25 days
