Quality Wedge Wire Screen Manufacturer in China

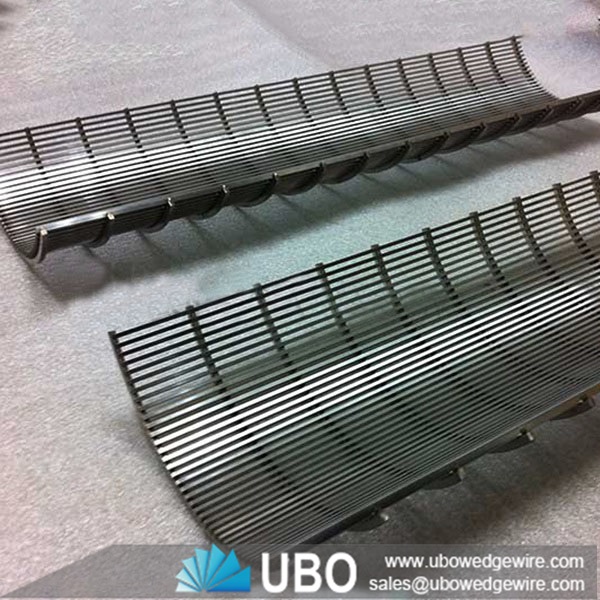

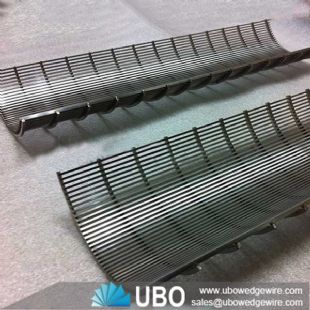

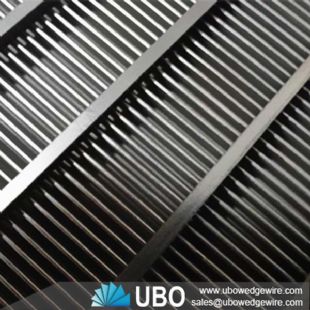

Steainless steel low carbon V wire sieve bend screen

More Views

Steainless steel low carbon V wire sieve bend screenSteainless steel low carbon V wire sieve bend screenSteainless steel low carbon V wire sieve bend screen

Steainless steel low carbon V wire sieve bend screen

Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Sieve Bend Screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Steainless steel low carbon V wire sieve bend screen

     Sieve Bend Screens also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery.

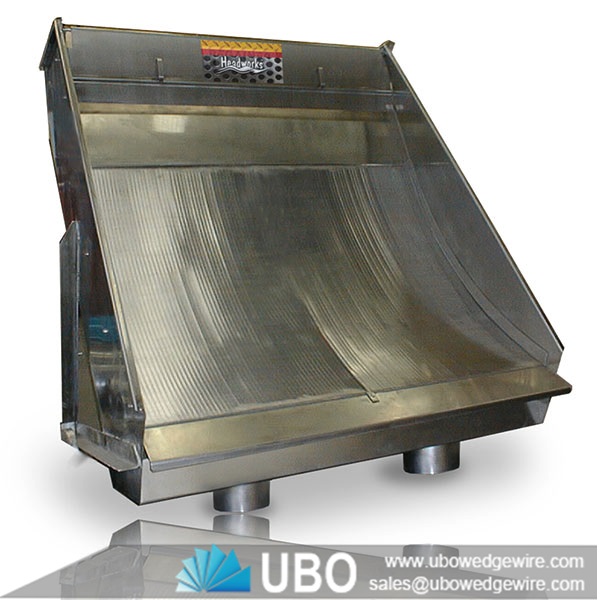

A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

Application for Steainless steel low carbon V wire sieve bend screen:

V- Wire Screen is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.

Advantages for Steainless steel low carbon V wire sieve bend screen:

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

Features for Steainless steel low carbon V wire sieve bend screen:

Low Headroom - only 1.1 metres (44") tall for the 900mm arc length unit.
Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.2mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.

Steainless steel low carbon V wire sieve bend screen

Specifications of Steainless steel low carbon V wire sieve bend screen:

Steainless steel low carbon V wire sieve bend screen



Surface Profile

W
H

Material

10S

0.75
1.425

S304,S316L Hastelloy, Monel alloy of nickel

 and titanium, and other stainless steel

11SL

10.75
1.8

22S

1.8
3.7

4S

0.45
1.2

50SL

3.4
7.5



Surface Profile
W
H
Material
Q22
2
2.28

S304,S316L Hastelloy, Monel alloy of nickel

 and titanium, and other stainless steel

Q35
3
5
Q53
4
3
D56
4
5.6
D45
3.8
6.0

Packaging and Transportation of Steainless steel low carbon V wire sieve bend screen:

Steainless steel low carbon V wire sieve bend screen
