Steainless steel low carbon V Wrap Cylinder Basket

More Views

Steainless steel low carbon V Wrap Cylinder BasketSteainless steel low carbon V Wrap Cylinder BasketSteainless steel low carbon V Wrap Cylinder Basket

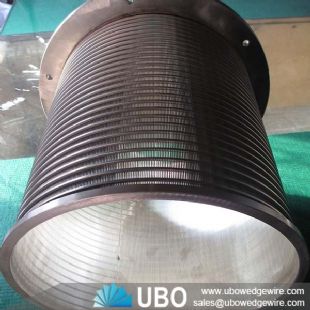

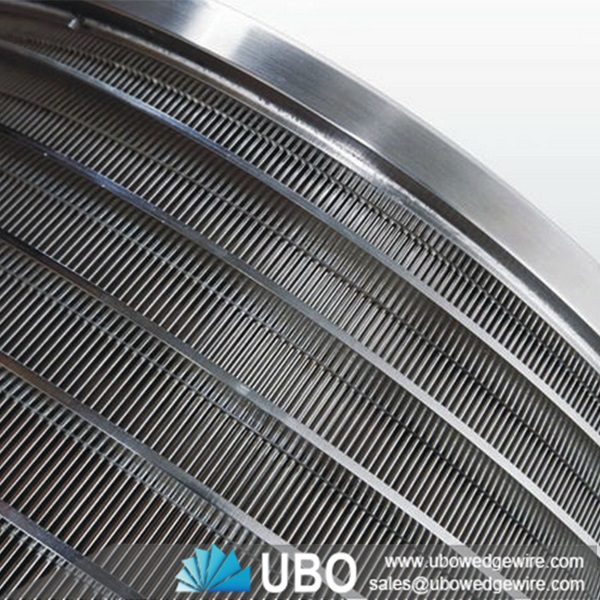

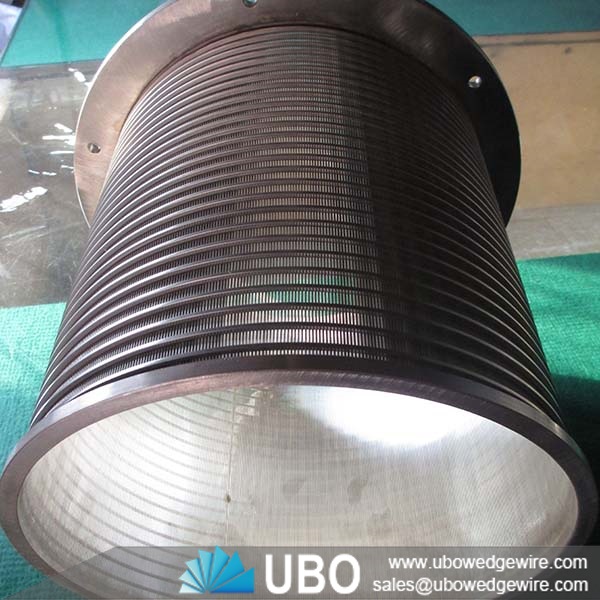

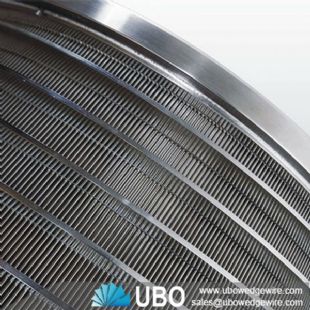

Steainless steel low carbon V Wrap Cylinder Basket

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Cylinder
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Steainless steel low carbon V Wrap Cylinder Basket

   The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction

Application for Steainless steel low carbon V Wrap Cylinder Basket:

widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.

Advantages for Steainless steel low carbon V Wrap Cylinder Basket:

1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2.A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3.A uniform and efficient well development due to the continuous slot opening.
4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

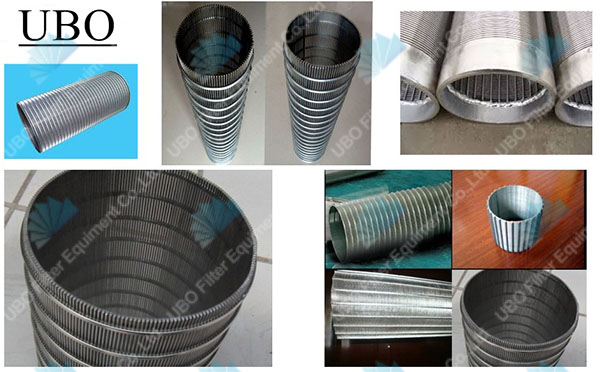

Type for Steainless steel low carbon V Wrap Cylinder Basket:

Wedge wire screen have flat type , cylinder type , slope type and basket type . So Wedge wire screen is called as flat welded screen panel , cylinder wedge screen and sieve bend screen . According to the weaving type , they are also called woven wedge wire and welded wedge wire such as crimped wedge wire . welded wedge screen panels.

Steainless steel low carbon V Wrap Cylinder Basket

Specifications of Steainless steel low carbon V Wrap Cylinder Basket:

Steainless steel low carbon V Wrap Cylinder Basket

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Steainless steel low carbon V Wrap Cylinder Basket:

Steainless steel low carbon V Wrap Cylinder Basket



Steainless steel low carbon V Wrap Cylinder Basket
