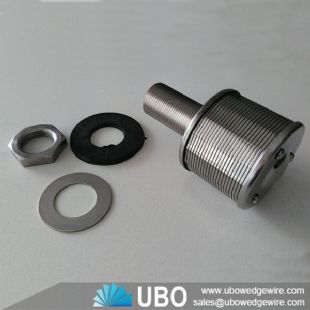

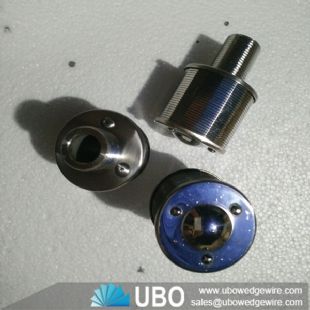

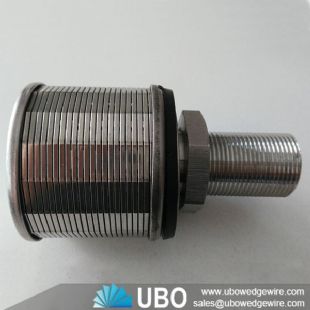

Steainless steel low carbon V wire screen Nozzle for Filtration

More Views

Steainless steel low carbon V wire screen Nozzle for FiltrationSteainless steel low carbon V wire screen Nozzle for FiltrationSteainless steel low carbon V wire screen Nozzle for Filtration

Steainless steel low carbon V wire screen Nozzle for Filtration

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Filter Nozzle
Application:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Steainless steel low carbon V wire screen Nozzle for Filtration

     Wedge Wire Screen Water Screen Nozzles are made from V shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded, with an unique welding process. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. The pitch of winding gives different spacing between two adjacent turns of wire.

Application for Steainless steel low carbon V wire screen Nozzle for Filtration:

The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Advantages for Steainless steel low carbon V wire screen Nozzle for Filtration:

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly

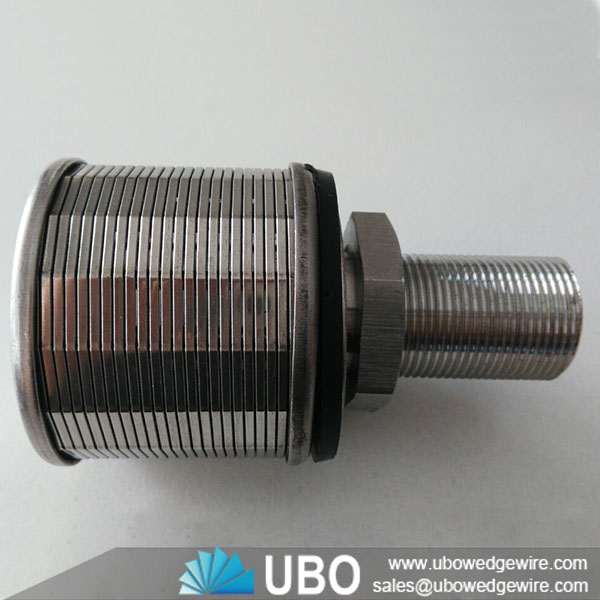

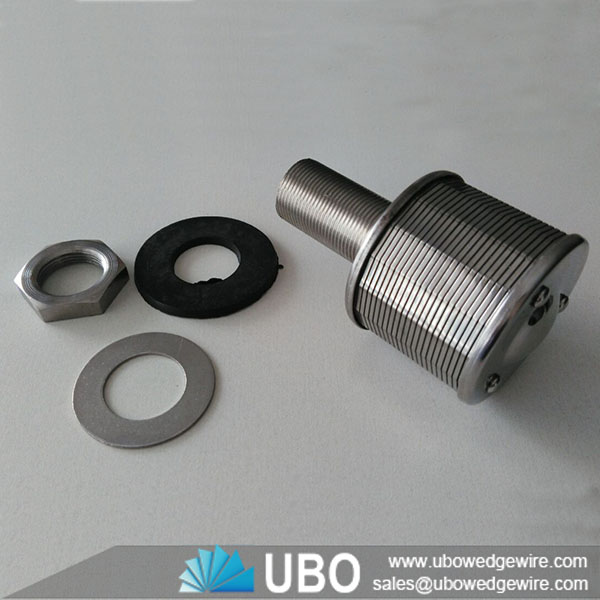

Steainless steel low carbon V wire screen Nozzle for Filtration

Specifications of Steainless steel low carbon V wire screen Nozzle for Filtration:

Material:stainless steel

Type:filter nozzle

Connector:3/4'' NPT

OD (mm)
Material
Profile wire size
Support rod size
Support rod no.
Filtering Slot size
37
SS304/316L
10S/12S/18S
Q22/Q25
8
0.025~3.00mm
40
SS304/316L
10S/12S/18S
Q22/Q25
10
0.025~3.00mm
42
SS304/316L
10S/12S/18S
Q22/Q25
10
0.025~3.00mm
45
SS304/316L
10S/12S/18S
Q22/Q25
12
0.025~3.00mm
48
SS304/316L
10S/12S/18S
Q22/Q25
12
0.025~3.00mm
60
SS304/316L
10S/12S/18S
Q22/Q25
12
0.025~3.00mm
64
SS304/316L
10S/12S/18S
Q22/Q25
18
0.025~3.00mm
70
SS304/316L
10S/12S/18S
Q22/Q25
18
0.025~3.00mm
76
SS304/316L
10S/12S/18S
Q22/Q25
18
0.025~3.00mm
85
SS304/316L
10S/12S/18S
Q22/Q25
18
0.025~3.00mm
100
SS304/316L
10S/12S/18S
Q22/Q25
24
0.025~3.00mm


Packaging and Transportation of Steainless steel low carbon V wire screen Nozzle for Filtration:

Steainless steel low carbon V wire screen Nozzle for Filtration
