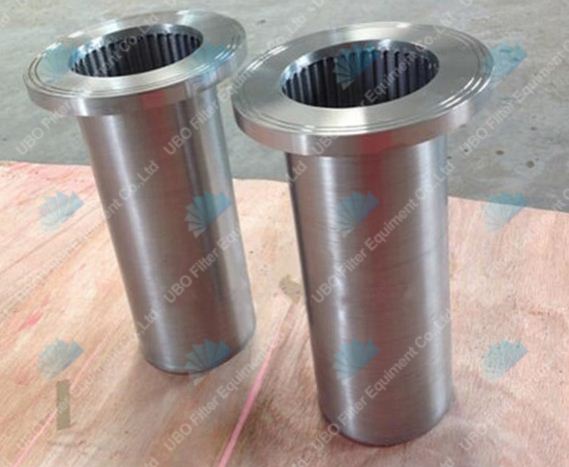

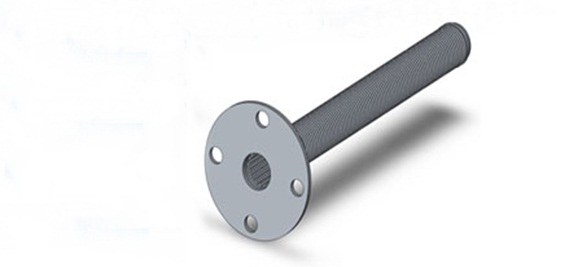

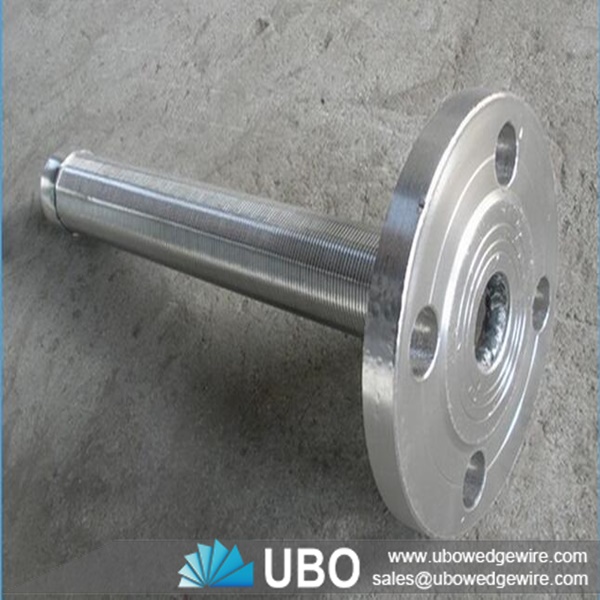

Stainless Steel Wedge Wire Resin Trap Strainer
Category: | Resin Traps |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Stainless Steel Wedge Wire Resin Trap Strainer
Stainless Steel Wedge Wire Resin Trap Strainers are produced by profile wire and support rod, V wire shape is the feature in wedge wire screens to create pressure difference, the filtering , the screen mesh will easily intercepted particle ( resin traps, activated carbon, and sands ) , Screen resin traps widely used in Cation Exchanger, Anion Exchanger, Mixed bed exchanger, active carbon filter, Quartz Sand Filter.
Features of Stainless Steel Wedge Wire Resin Trap Strainer
• Reduced costs, since wedge wire screens have a very long life.
• Greater resistance to stresses of different pressure and temperature.
• Maximum effective flow area & operating efficiency is maintained.
• Costly downtime for cleaning plugged screens is minimize.
Application of Stainless Steel Wedge Wire Resin Trap Strainer
Resin Trap Screen Predominantly used in water treatment processes namely in ‘Ion Exchange’ and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screen system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.
Specifications of Stainless Steel Wedge Wire Resin Trap Strainer:
Type
|
Slots mm
|
ΦA
|
Flange DN
|
L1mm
|
AM1
|
0.05, 0.1, 0.2 0.3, 0.5, 1.0
|
45,57,76,89,108,
133, 159, 219
|
40,50,65,80,
100,125,150,
200
|
442,496,547,
600,654,705,
758,812,863,
916,970,1021,
1074,1128,1179,
1232, 1286
|
