Screen wedge wire screen with flange for filtration

More Views

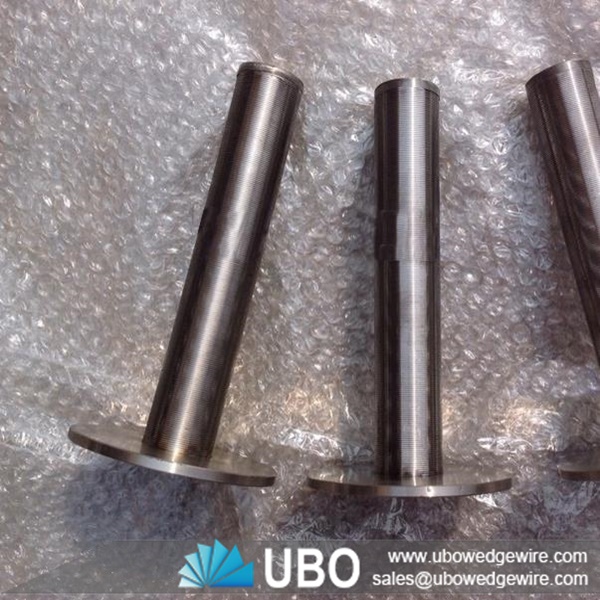

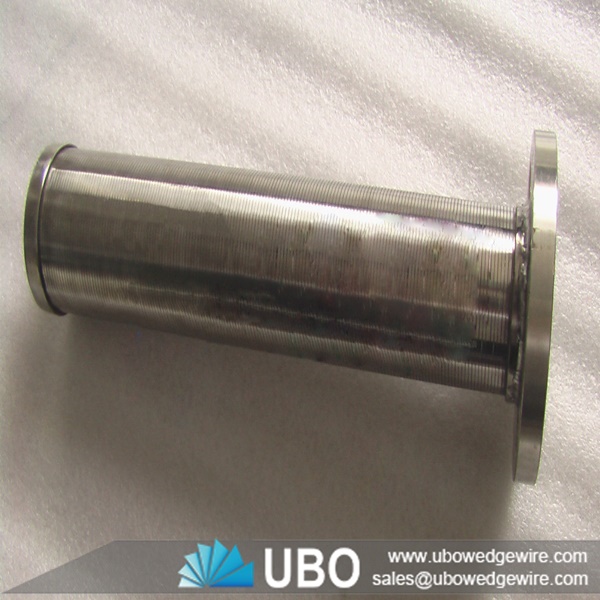

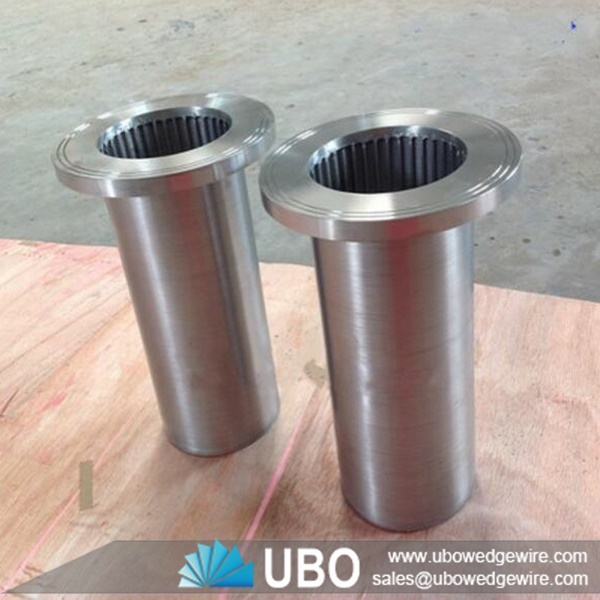

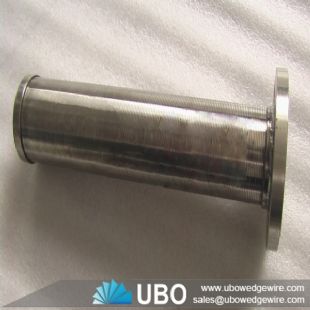

Screen wedge wire screen with flange for filtrationScreen wedge wire screen with flange for filtrationScreen wedge wire screen with flange for filtration

Screen wedge wire screen with flange for filtration

Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Screen wedge wire screen with flange for filtration

Screen wedge wire screen with flange is made of V shaped stainless steel wire. It has flow area.water distribution uniformity, the high mechanical strength, temperature,pressure,anti aging, anti corrosive has been greatly enhanced. Stainless steel wire around the space under the index finger to the size of the design.

Application of Screen wedge wire screen with flange for filtration

A resin trap is normally used: to capture expensive resin that escapes from a treatment vessel by accident, to protect equipment further downstream. A strainer is often used in tubes to block unwanted particles or dirt that would otherwise damage downstream equipment. Cleaning is carried out by removing the strainer from the tube

Characteristics of Screen wedge wire screen with flange for filtration

1. filter made of stainless steel trapezoidal wire, screen slot is v-shape, can effectively intercept resin impurities.
2. trapezoidal wire evenly circumferentially array on the support bar,ensure the screen filter area and non-obstructive, avoiding impurities concentrated.
3. resin trap all connected by welding, durable, long life.
4. After working for some time,can filter backwash, multiple use

Feature of Screen wedge wire screen with flange for filtration

1. It has high mechanical strength, can bear large pressure drop.
2. The wedge type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, uedes in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

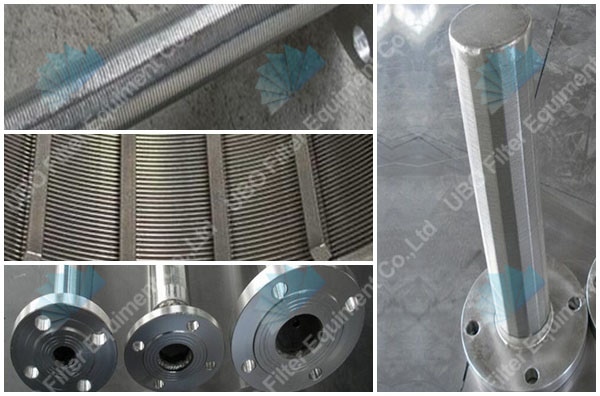

Screen wedge wire screen with flange for filtration

Specifications of Screen wedge wire screen with flange for filtration:

Screen wedge wire screen with flange for filtration

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

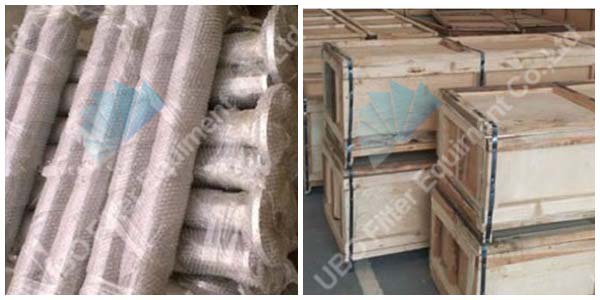

Packaging and Transportation of Screen wedge wire screen with flange for filtration:

transportation

transportation
