SS Hub and header laterals for Industrial

More Views

SS Hub and header laterals for IndustrialSS Hub and header laterals for IndustrialSS Hub and header laterals for Industrial

SS Hub and header laterals for Industrial

Category:Profile Screen Laterals
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Pipe&Cylinder
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS Hub and header laterals for Industrial

Stainless steel wedge wire screen lateral distributor is widely used in the under draining applications with the features of effective filtering and screening performance. Wedge wire lateral assemblies are a typical screen type used in the under draining.

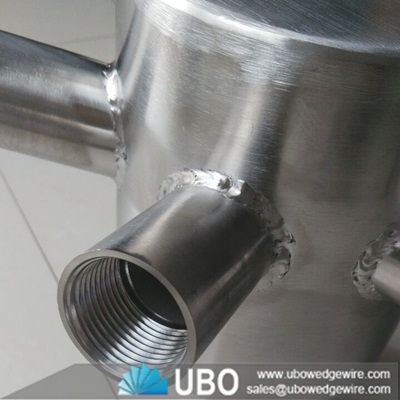

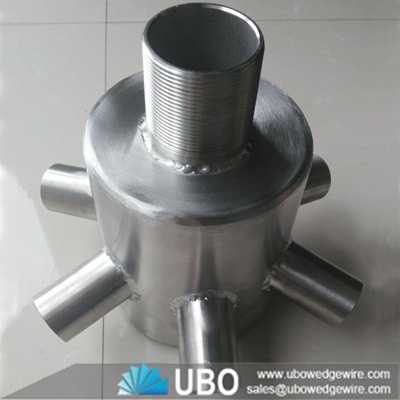

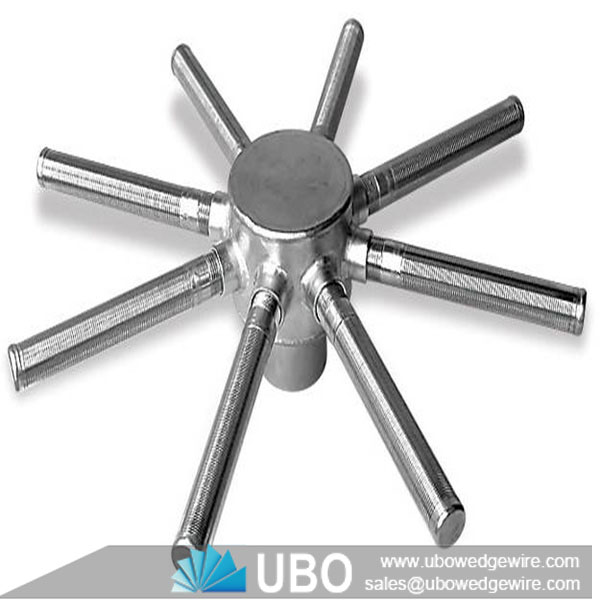

Stainless steel wedge wire screen lateral distributor, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.

Application for SS Hub and Header Laterals for Industrial:

The header assembly are the key parts of the treatment equipment and water distribution, they are widely used in the power plant, petroleum, chemical, pharmaceutical, food, sewage treatment, water plant and other industries of water treatment equipment and so on.

Advantage for SS Hub and Header Laterals for Industrial:

1) Uniform slot, no leakage of resin or material

2) High opening area, high flow area which can meet large flow requirement

3) Large liquid distribution area and uniform distribution

4) Diversified structure which can meet the requirements of the container

5) High pressure tolerance of branch pipe

6) High quality material ensures the longer life

Traditional Laterals for SS Hub and Header Laterals for Industrial:

With the advantage of the wrap wire screens pipe,large flow area, uniform water distribution, high mechanical strength,temperature resistance, pressure resistance, aging resistance,corrosion resistance have been greatly improved. Even if the branch pipe bending occurs, the resin still can’t flow out.Stainless steel wire slot size can be designed according to the resin size.

SS Hub and header laterals for Industrial

Specifications of SS Hub and header laterals for Industrial:

SS Hub and header laterals for Industrial





Wedge wire

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support rod

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length up to 6m
Diameter from 25mm to 1200mm.
End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of SS Hub and header laterals for Industrial:

SS Hub and header laterals for Industrial
