Water wedge wire distributor

Category:Profile Screen Laterals
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:header lateral
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Water wedge wire distributor

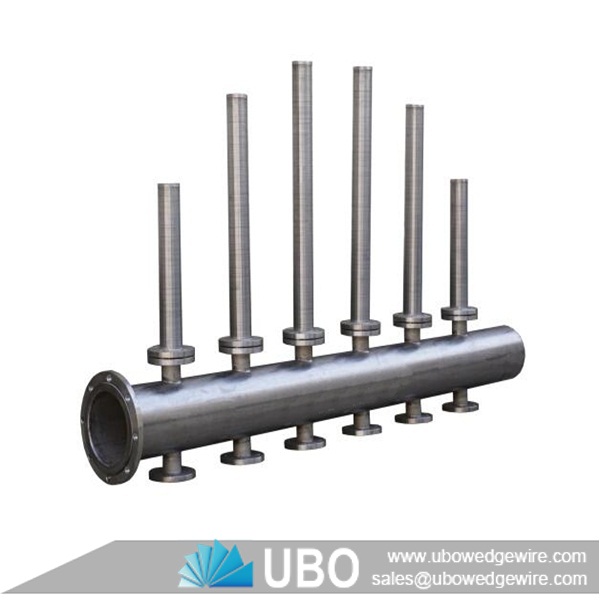

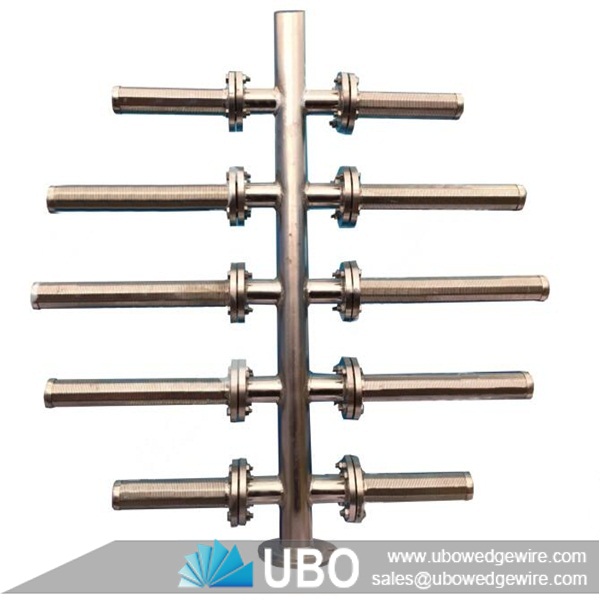

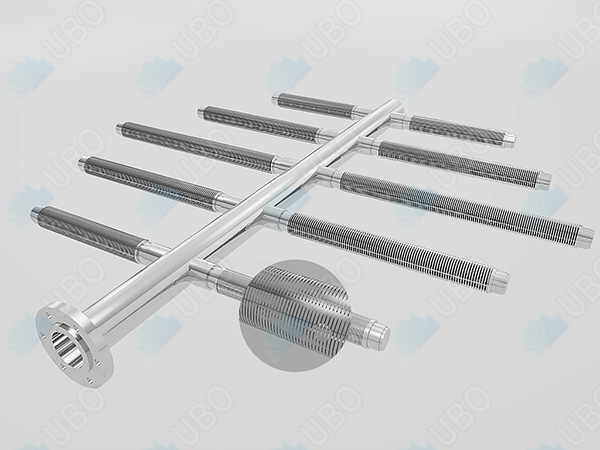

Water wedge wire distributor, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The V wire screen lateral distributor has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The V wire screen lateral distributor has various slot size, wire size and diameters to suit common or customized applications.

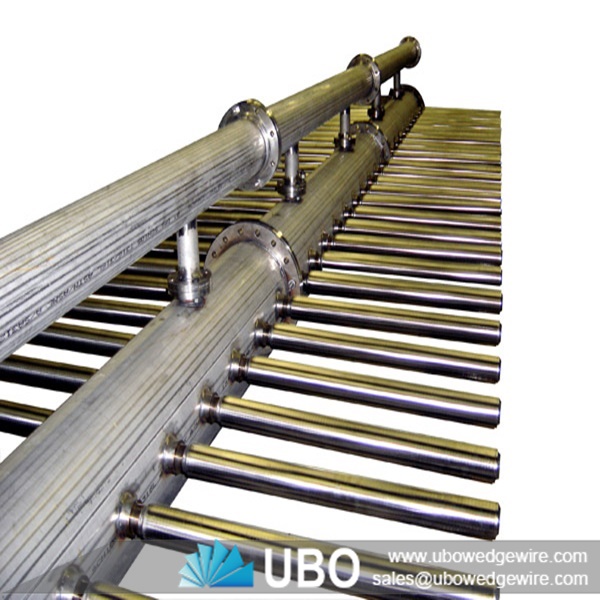

Water wedge wire distributor promote even distribution while also avoiding flow/pressure concentrations. Each header lateral consists of a series of screen laterals connected to a central header to provide uniform flow within a vessel containing treatment media. Header laterals can be used to either distribute inflow or collect flow, depending on their location within a vessel.

Water wedge wire distributor

Advantage of Water wedge wire distributor

1) Uniform slot, easy to penetrate,no leakage of resin or material

2) High opening area, high flow area which can meet large flow requirement

3) Large liquid distribution area and uniform distribution

4) Diversified structure which can meet the requirements of the container

5) High pressure tolerance and Temperature resistance of branch pipe

6) High quality material ensures the longer life

7) High mechanical strength,having good wear-resisting and corrosion resistance

8) High efficiency and high performance

9) Easy to move and install

10) Easy and convenient operation

11) Strong body

12) Reduce the abrasion of the pump.

13) Extend the life span of well.

Application of Water wedge wire distributor

Profile Screen Header laterals are used in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Water wedge wire distributor

Specifications of Water wedge wire distributor:

Water wedge wire distributor

Material

 stainless steel (304,316 etc.)

Wedge Wire (mm)

Width : 0.75 1.50 1.80 2.30 3.00 3.30 3.70

       0.75*1.5, 1.0*2.0,1.5*2.5, 1.5*2.5, 2*3, 2.3*3, 3*5

Support Rod (mm)

Width : 1.00 1.80 2.00 3.00 4.00 5.00

Height : 2.00 2.50 3.00 5.00 6.00 8.00

Branch Quantity(pcs)

4, 6, 8, 10, as client's requirement

Nomional Diameter

According to the flow raiting and the vessel diameter

Connection

Flange or thread

Diameter

mini 20mm

Slot size

0.02,0.05,0.1 0.15, 0.20, 0.25, 0.30,....., 3.00mm also achieved upon request.

Note



Other specifications can be customized according to your requirement



Packaging and Transportation of Water wedge wire distributor:

Water wedge wire distributor
