Wedge Wire Header Lateral Collector

More Views

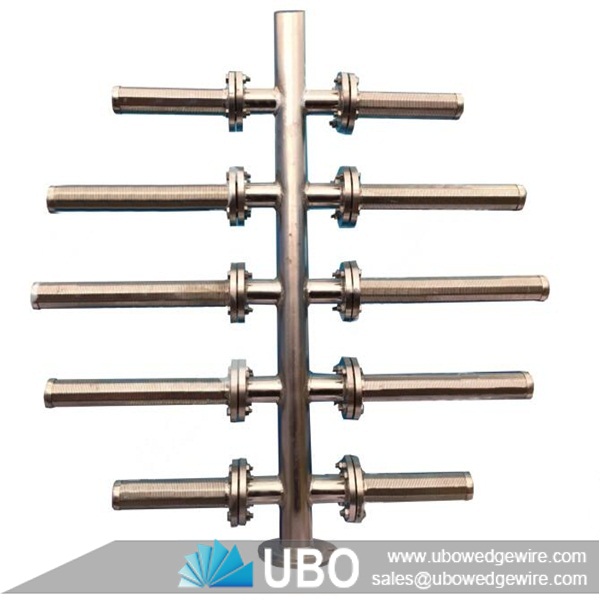

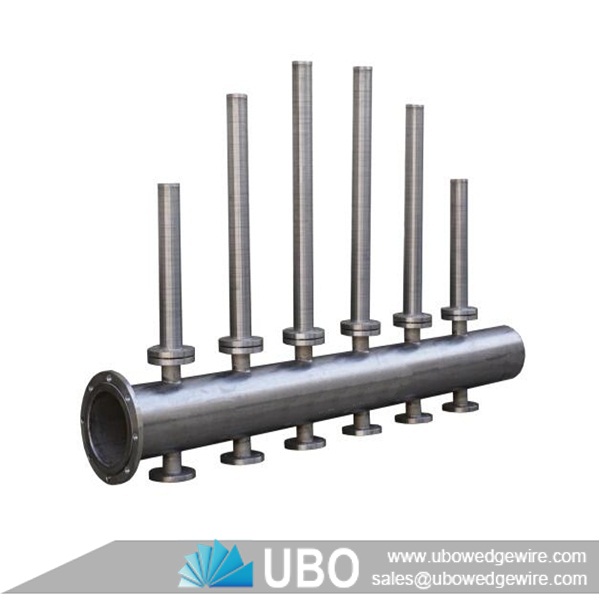

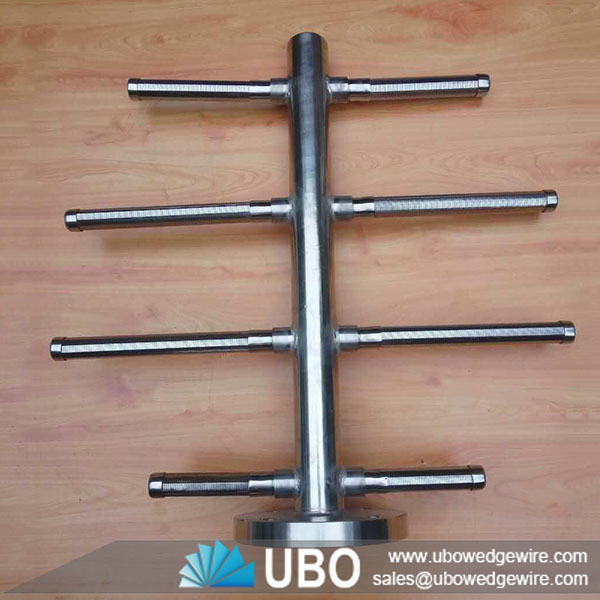

Wedge Wire Header Lateral CollectorWedge Wire Header Lateral CollectorWedge Wire Header Lateral Collector

Wedge Wire Header Lateral Collector

Category:Profile Screen Laterals
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:header lateral
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Details of Wedge Wire Header Lateral Collector

Wedge wire header lateral collector promotes even distribution while also avoiding flow/pressure concentrations. The non-plugging header lateral style design is ideal for accommodating disc head vessels. Made to your specification of size, open area and material, you can expect easy maintenance and exceptional long-term durability.UBO can builds hub laterals to your specifications for material, wire and rod size as well as open area.

Wedge wire header lateral collector

Advantages of Wedge Wire Header Lateral Collector



Wedge wire lateral collectors are made of V shaped stainless steel wire. It has flow area.water distribution uniformity, the high mechanical strength, temperature,pressure,anti aging, anti corrosive has been greatly enhanced. Stainless steel wire around the space under the index finger to the size of the design.

Applications of Wedge Wire Header Lateral Collector


The header laterals are the key parts of the treatment equipment and water distribution, they are widely used in the power plant, petroleum, chemical, pharmaceutical, food, sewage treatment, water plant and other industries of water treatment equipment and so on.

strcuture of Wedge wire header lateral collector

Specifications of Wedge Wire Header Lateral Collector:

Wedge wire header lateral collector

Material:
stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 0.75 1.50 1.80 2.30 3.00 3.30 3.70
Support Rod (mm):
Width : 1.00 1.80 2.00 3.00 4.00 5.00
Height : 2.00 2.50 3.00 5.00 6.00 8.00
Width:
Width Up To 2.5 meters
Length:
lengths up to 6 meters.
Slot Size:
0.02,0.05,0.1 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note:
Other specifications can be customized according to your requirement

The Packaging and Transportation of the Wedge Wire Header Lateral Collector:

transportation of Wedge wire header lateral collector
