Quality Wedge Wire Screen Manufacturer in China

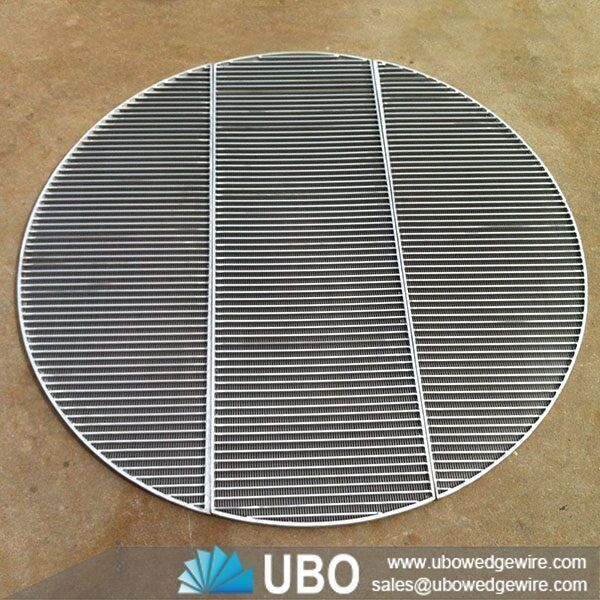

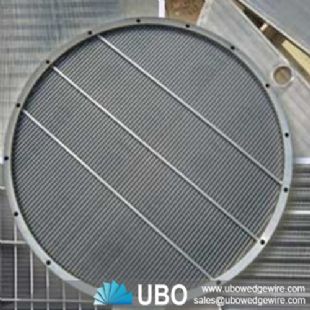

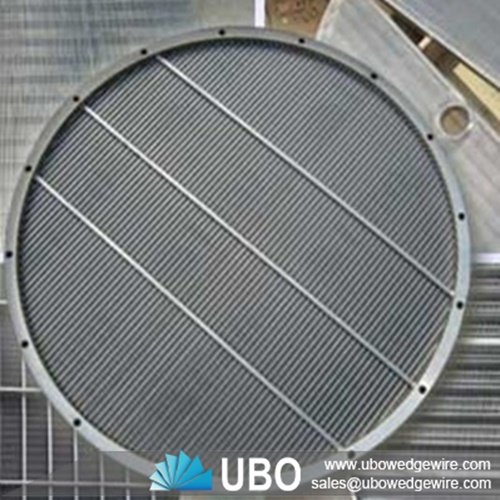

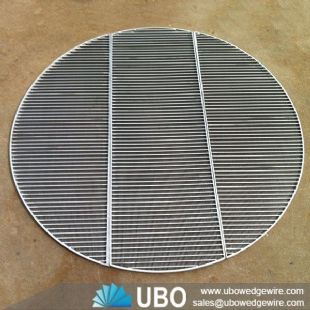

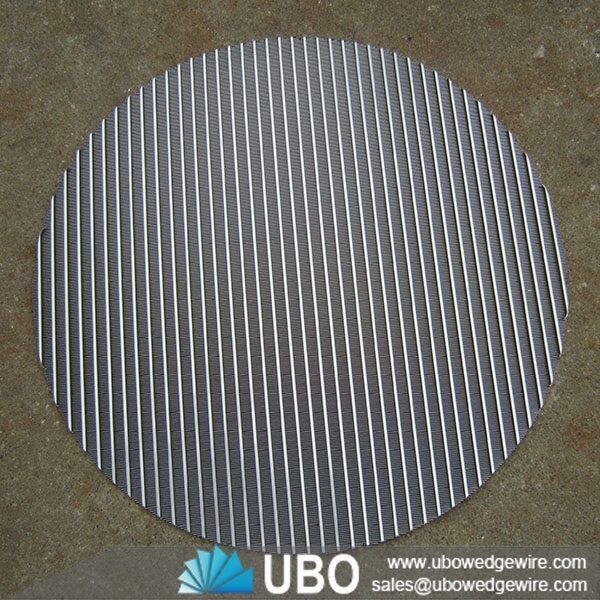

wedge wire circle screen plate

More Views

wedge wire circle screen platewedge wire circle screen platewedge wire circle screen plate

wedge wire circle screen plate

Category:Wedge Wire Screen Panel
Material:stainless steel 302,304,316,316L
Properties:wedge wire screen
Application:water, oil, food, beer euipment,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire circle screen plate

wedge wire circle screen plate is a metal mesh structural elements for screening and filtering. It is widely used in many industries, filtration, dehydration, removing mud and other operations. It has high strength, rigidity and load capacity, can be made into various shapes of rigid screening.


Our company has the most sophisticated processing equipment and the most advanced detection system. Precision is up to ± 0.05 mm, hole accuracy is up to ± 0.05 mm ,sieve slit is up to 0.1 mm minimum.

Features of Wedge Wire Circle Screen Plate

-- High strength

-- Excellent performance

-- Fine finish

-- Typical static panels, including architectural panels, will have a surround frame welded around the screen

-- Typical vibrating panels will have angles welded down two sides of the panel and rubber vibration dampening strips glued to the top and bottom of the screen

Usages of Wedge Wire Circle Screen Plate

It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

wedge wire circle screen plate

Specifications of wedge wire circle screen plate:

Wedge wire circle screen plate

Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Diameter ranging

from 1 inch -----45 inch.

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

Note: Other specifications can be customized according to your requirement
