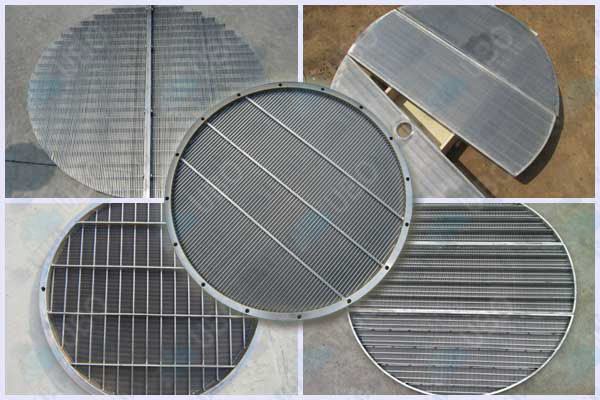

flat lauter screen panel

More Views

flat lauter screen panel

Category:Wedge Wire Screen Panel
Material:stainless steel
Properties:wedge wire screen
Application:water filter,industry filter,liquid filter

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of flat lauter screen panel

The flat lauter screen panel —stainless steel screen mesh for welding is the accessory of vibrating screen, usually used for the classification of materials. The outline dimension, thread, hole diameter and frame structure could be customized upon user's requirements.

Characteristic of  flat lauter screen panel

1.)wedge wire screen style isn't easy to be locked
2.)due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.)we are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) we have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles

Usages of  flat lauter screen panel

tis screen panel is used in the field of sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation; filtration of oils, greases, paints, food products, fuels, liquid cooling agents, chemicals etc.

         flat lauter screen panel

Specifications of flat lauter screen panel:

The Max gap: 8mm; Min.gap:0.05mm
Length: 20-5000mm or customized

NO.

Nominal  Dia

O.D

Flow area
Gap:0.2/m

NO.

Nominal  Dia

O.D

Flow area
Gap:0.2-0.25/m

1

20

25

7850mm

13

Nonstandard

86

27000

2

Nonstandard

28

8790mm

14

80

89

27900

3

25

32

10050mm

15

Nonstandard

108

33900

4

32

38

11930mm

16

100

114

36400

5

Nonstandard

42

13180mm

17

Nonstandard

133

41700

6

40

45

14130mm

18

125

159

49900

7

Nonstandard

48

15700mm

19

150

196

61500

8

Nonstandard

53

16640mm

20

Nonstandard

219

68700

9

50

57

17890mm

21

200

273

85700

10

Nonstandard

70

21980mm

22

250

325

102000

11

65

76

23860mm

23

300

350

109900

12

Nonstandard

82

25740mm

24

Nonstandard

610





Packaging and Transportation of flat lauter screen panel:

Packaging & Delivery

Packaging Details: generally first put into water proof plastic paper, then into iron pallets/wooden boxes/containers
Delivery Detail: 15~20days after the advanced payment
