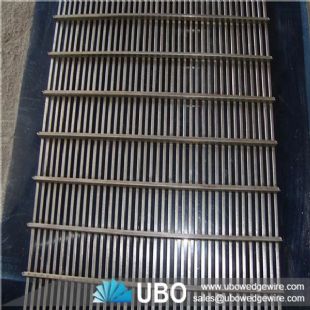

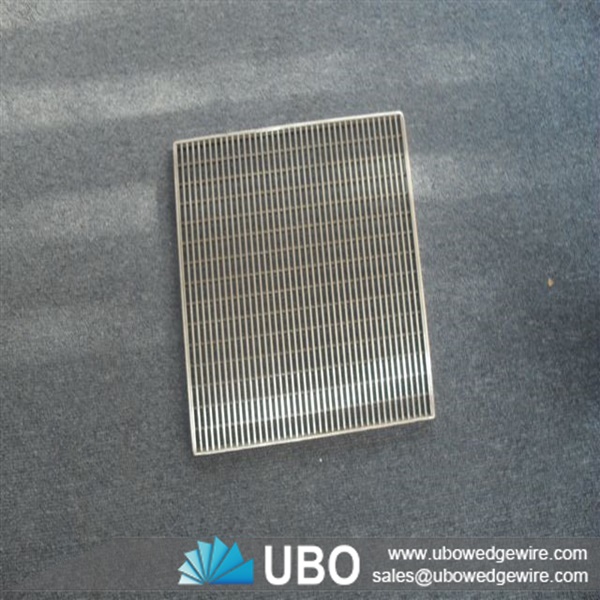

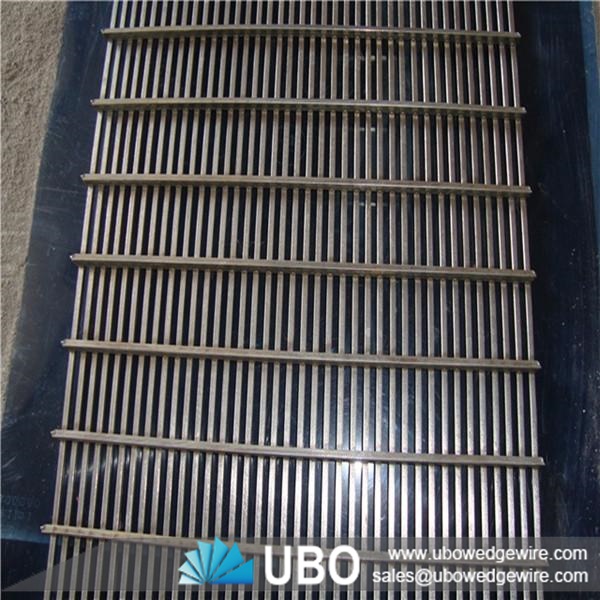

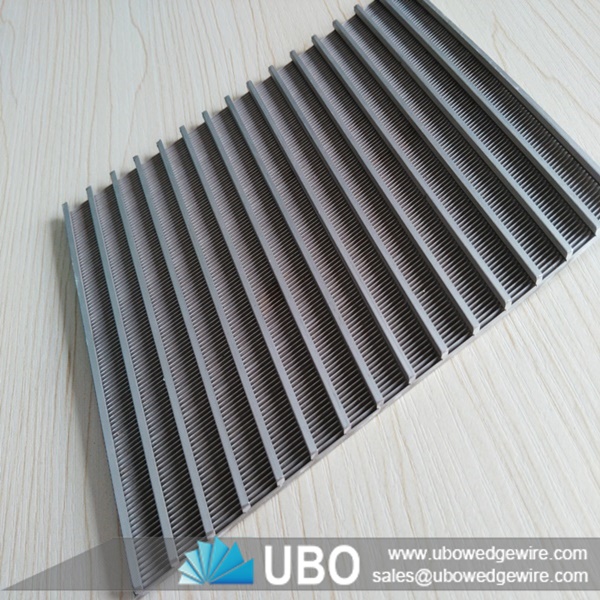

SS Wedge Wire Sieve Bend Screen

SS wedge wire screen panel have a high open area by comparison with woven wire screen media. Supplied in mainly flat forms or curved panel forms. High opening screen gives lower entrance velocities and higher flow rates through the screen. In the case of pump in-taking screens, pumping costs are lower.

The sieve bend screen have continuous slot openings that widen inwardly. This makes the screen self-cleaning by allowing "near slot size" particles to pass through the screen rather than plug the opening. And the products are made by continuously winding a wrap wire onto a frame of support rods. This is done on precision built, electronically controlled machinery which ensures consistently high strength, precise slot openings and product durability.

Features of SS Wedge Wire Sieve Bend Screen

Accurate slot gap, high efficiency performance, stable structure, anti-high temperature, anti-corrosive, good mechanical properties, long-lasting and durable, safe and reliable, various field can be applied.

Usages of SS Wedge Wire Sieve Bend Screen

Wedge wire sieve screen can be parts of deep well pumps or submersible pumps; can be used for water treatment equipment, environment protection, the sea water desalination, water softening treatment, oil and chemical processing; terminal filtration for petroleum products, filtration for chemical acid and soda liquid, for alcohol and other organic solvents recycle filtration.

Slot size (mm): 0.025mm 0.10, 0.15, 0.2, 0.25, 0.30-3mm

Open area: up to 60%

Material: low carbon, low carbon galvanized steel (LCG) steel , stainless steel (304 etc.) Lengths up to 6 meters

Diameter: ranging from 25 to 800mm

End connection: plain beveled ends for butt welding or threaded

Material: Low Carbon Galvanized ( LCG ) and Stainless Steel (SS)

Slot (mm): 0.025 0.1、0.25、0.50、0.75、1.00、1.50、2.00、3.00 and so on.
