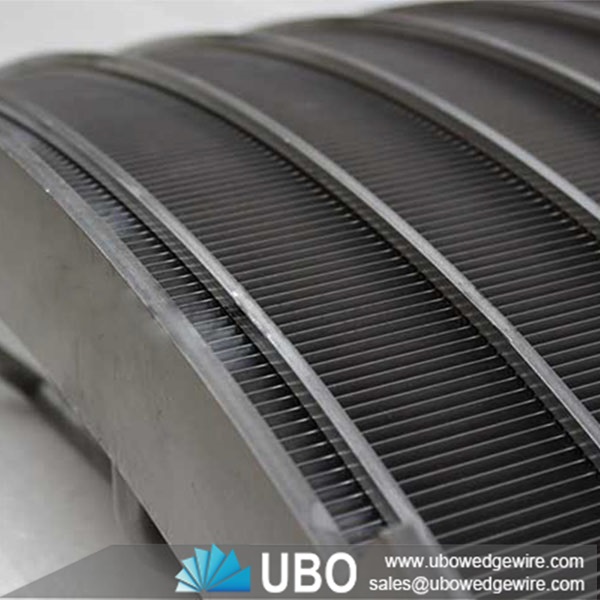

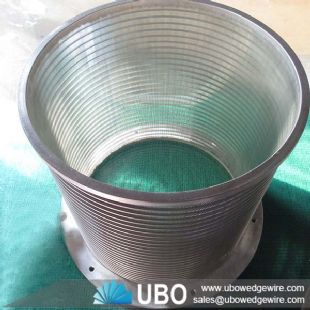

Wedge Wire Screen Rotary Drum

More Views

Wedge Wire Screen Rotary DrumWedge Wire Screen Rotary DrumWedge Wire Screen Rotary Drum

Wedge Wire Screen Rotary Drum

Category:Wedge Wire Screen Basket
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Screen Basket
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Screen Rotary Drum



Wedge wire screen drums are producing by profile wire and support rods with the materials of galvanized steel, stainless steel and low carbon steel.

Usage for Wedge Wire Screen Rotary Drum:

Be suitable for all kinds pressure screen in pulp making system and paper making system,mining,coal mills,etc.


Advantages for Wedge Wire Screen Rotary Drum:

1) Many wing pieces, no winding, highly efficient rotary drum type rotor.

2) Pulp consistency can reach 2.5~4%, reduce water consumption and fiber loss of production process.

3) Heavy impurity discharge tube, ensure the security of the sieve drum operation.

4) Advanced structure, strong and durable, easy dismounting, low energy consumption, less wastage fiber.

5) Equipped with automatic oiling and mechanical seal water monitoring device, high degree of automation.

6) Compact structure, small power, high output.

7) 1 year warranty and best after-sale service

Working Principle for Wedge Wire Screen Rotary Drum:

Wedge wire screen drum under the rotating function of drum sieve and rotating cylinder and centrifugation effect. The machine will separate the qualified pulp and non-qualified pulp.It consist of cylinder, cylinder cover, sieve drum, rotary cylinder,base and transmission parts, etc.

wedge wire screen for outlet baskets

Specifications of Wedge Wire Screen Rotary Drum:

Outside Diameter
Profile
Wire
Rod
Wire
Rod
Quantity
Slot
Size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25
45~3000
25
1
33.7
1.5*2
2*3
14
0.1~0.25
45~3000
32
1~1/4
42.4
1.5*2
2*3
16
0.1~0.25
45~3000
40
1~1/2
48.3
1.5*2
2*3
16
0.1~0.25
45~3000
50
2
60.3
1.5*2
2*3
18
0.1~0.5
45~3000
65
2~2/2
76.1
1.5*2
2*3
20
0.1~0.5
45~3000
80
3
88.9
1.8*2.5
2*3
24
0.1~0.5
45~3000
100
4
114.3
1.8*2.5
2*3
30
0.5~2
1000~6000
125
5
139.7
2.3*2.7
2*3
36
0.5~2
1000~6000
150
6
168.3
2.3*2.7
3*5
44
0.5~2
1000~6000
200
8
219.1
3.3*4.5
3*4.7
56
0.5~2
1000~6000
250
10
273
3.3*4.5
4*6
66
0.5~2
1000~6000
300
12
323.9
3.3*4.7
4*6
72
0.5~2
1000~6000
350
14
355.6
3.7*5
4*6
80
0.5~2
1000~6000
400
16
406.4
1.5*2
2*3
94
0.1~2
1000~6000
450
18
457
2*3
4*5
112
0.1~2
500~400
500
20
508
2*3
4*5
124
0.1~2
500~400
550
22
559
2*3
4*5
140
0.1~2
500~400
600
24
610
2*3
4*5
156
0.1~2
500~400
Siot:0.1mm~2mm    Tolerance:0.05

Packaging and Transportation of Wedge Wire Screen Rotary Drum:

Package: in wood case

Delivery Time: 5-15 days.
