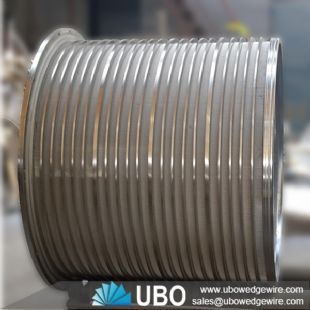

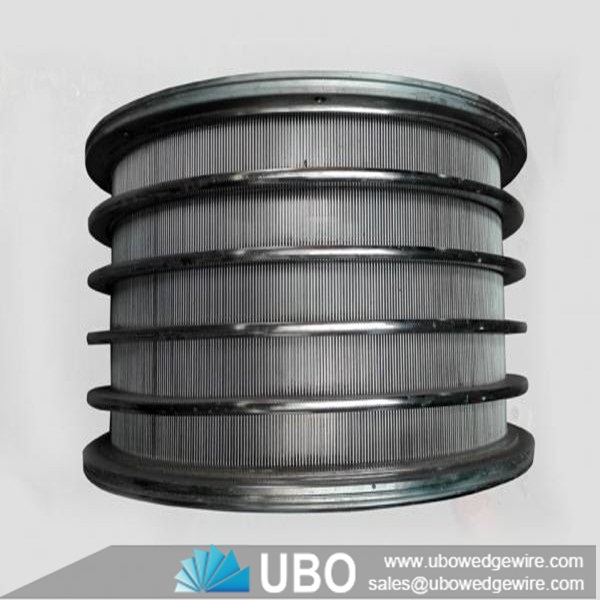

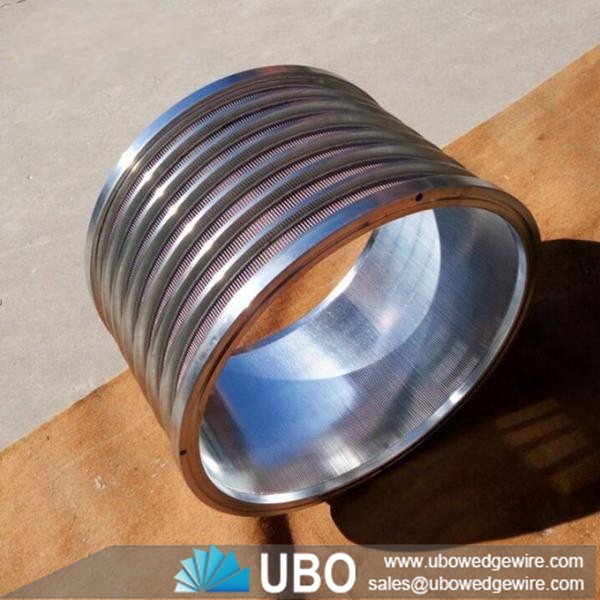

SS wedge wire pressure screen basket

More Views

SS wedge wire pressure screen basketSS wedge wire pressure screen basketSS wedge wire pressure screen basket

SS wedge wire pressure screen basket

Category:Wedge Wire Screen Basket
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of SS wedge wire pressure screen basket

SS wedge wire pressure screen basket can be designed with slot openings and wires running radially on the outside surface of the screen cylinder (above left) or they can be positioned axially on the inside of the cylinder (above right)
Screen cylinders are manufactured in various diameters from 1/2" pipe size to 35" . Screen cylinders (above right) can be fabricated into larger diameters. Each intersection of wedge wire and support rod is welded for strength and durability.
Various wedge wire and support rod combinations can be used to produce the best screen .
SS wedge wire pressure screen basket typically use wedgewire for the screening media. The above externally fed unit has a spiral wound wedgewire screen drum 36" OD x 120" long.

SS wedge wire pressure screen basket

Characteristics of SS wedge wire pressure screen basket

- More open area;
- Precise openings;
- Maximum design flexibility;
- Stronger and more durable, economical;
- Easier installation and long-term operating etc.

Application of SS wedge wire pressure screen basket

- Separating;
- Sizing;
- Straining;
- De-watering;
- Filtering;
- Drying;
- Water intake;
- Media retention.

Advantages of SS wedge wire pressure screen basket

Maximum effective flow area and maximum operating efficiency are maintained throughout service life.
Maintenance costs are reduced drastically due to reduced clogging and stapling of fibrous material.
Long-lived straining element provides reduced operating costs over entire service life.
Rigid element prevents flexing which can cause premature element failure.
Efficient, effective debris collection at media/screen interface.
We can also make manufacture according to your detail specifications and we assure that we will give you the best services.
If you are interested in our products please feel free to contact us and your inquiry will meet with our careful attention.

SS wedge wire pressure screen basket

Specifications of SS wedge wire pressure screen basket:

SS wedge wire pressure screen basket

Material

   Galvanized low carton (LCG), Stainless steel(SS)

Wedge Wire (mm)

   Width : 1.50 1.80 2.30 3.00 3.30 3.70

   Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00



Support Rod (mm)



   Width : 2.30 3.00 3.30 3.70

   Height : 2.70 3.60 4.70 5.60 6.30

   Round : 2.50mm -- 6.0mm

Slot Size

   0.02 -- 6.00mm ,also can be customized as your request.

Length

   Max 6 meters.

Out Diameter

   25mm -- 1200mm.

End connection

   Plain beveled ends, flanged or threaded couplings

Note: Other specifications can be customized according to your requirement.
