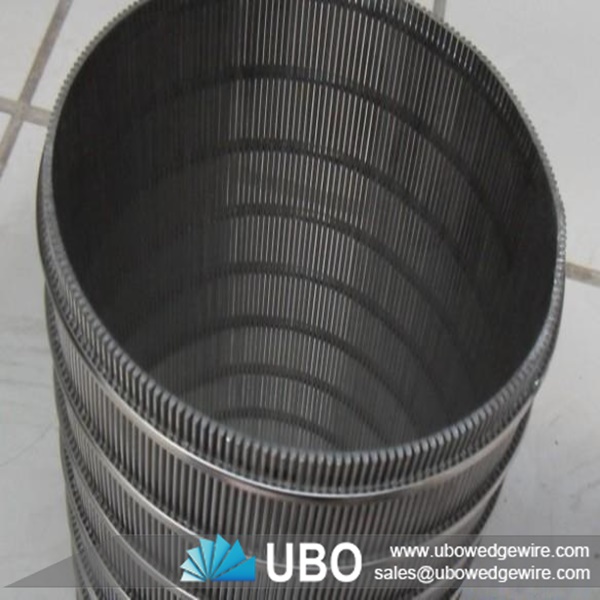

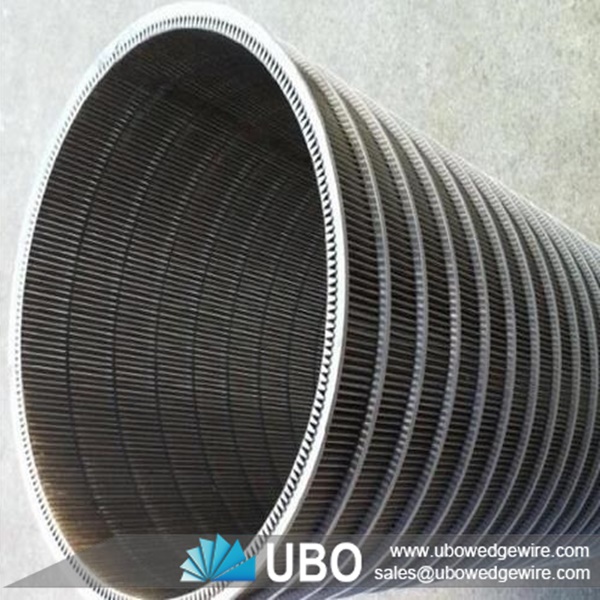

wire wrap screen for filtration

More Views

wire wrap screen for filtrationwire wrap screen for filtrationwire wrap screen for filtration

wire wrap screen for filtration

Category:Wedge Wire Application
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:water filtration,liquid filtration,industry filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wire wrap screen for filtration

The wire wrap screens are made of SS "V" shaped and SS "V" shaped or SS "V" shaped and SS rod or SS "V" shaped and SS "Convex "shaped rod with the unique computer controlled machinery in which a continuous length of profile wire of a triangular section is fusion welded into support rods. This 'V' shaped profile wire is wound around the support rods over the full length of the screen thus creating a continuous slot opening. The Cylinder Screen have a perfectly flat and smooth surface with rectangular openings , also named SS wedge wire screen, SS wedge profile wire screen Cylinder or SS wedge Cylindrical Screen.

Advantages of wire wrap screen for filtration

-- A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.

-- A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.

-- A uniform and efficient well development due to the continuous slot opening.

-- Offering great strength. precision, long service life.

Applications of wire wrap screen for filtration

Wedge wire products are used for solid / liquid and solid / gas separation, sizing, dewatering and media retention in Oil & Gas wells, Water Wells, monitoring & soil sanitation, the (petro) chemical industry, food and process industry and architecture.

         wire wrap screen for filtration

Specifications of wire wrap screen for filtration:


No.
(mm)TYPE OD
(mm)
ID
(mm)
Support wire Number Filter direction
1 SRD25.4 25.4 18.6 12 FOTI
2 SRD 33 33 24 8 FOTI
3 SRD 37 37 28 8 FOTI
4 SRD 40 40 31 8/10 FOTI/FITO
5 SRD 45 45 36 10/12 FOTI/FITO
6 SRD 48 48 38 12 FOTI/FITO
7 SRD 60 60 51 12 FOTI/FITO
8 SRD 70 70 61 12/18 FOTI/FITO
9 SRD 85 85 76 18 FOTI/FITO
10 SRD 110 110 101 24 FOTI/FITO
11 SRD120 120 111 24 FOTI/FITO

wire wrap screen for filtration



wire wrap screen for filtration

Packaging and Transportation of wire wrap screen for filtration:

1) Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)

2) We have a very trust forwarding company cooperate for long time and establish a solid partnership,of course,you can also arrange forward to take products from our factory.

transport
