wedge wire water well screen pipe for liquid filtration

More Views

wedge wire water well screen pipe for liquid filtrationwedge wire water well screen pipe for liquid filtrationwedge wire water well screen pipe for liquid filtration

wedge wire water well screen pipe for liquid filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire water well screen pipe for liquid filtration

Wedge wire water well screen pipe , also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

The wedge wire water well screen pipe  is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

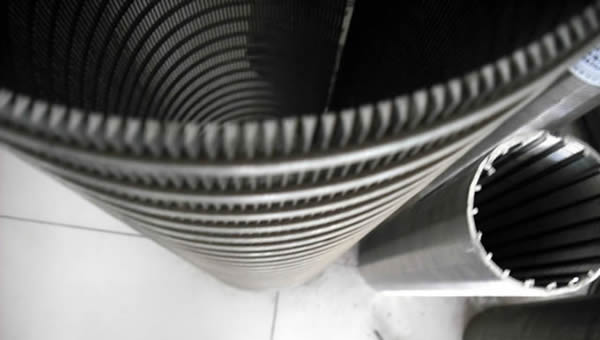

Construction of wedge wire water well screen pipe for liquid filtration

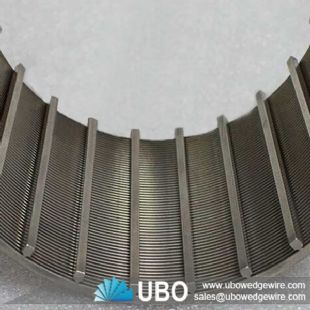

Rods spaced evenly around the circumference support the screen and prevent the screen from deformation.
V-shaped wire produces self-cleaning action and non-clogging performance. The slot width on surface is increasing towards the internal side of the screen. This slot geometry is called keystone slot which has the ability of anti-plugging. Precise slot width should be designed to satisfy operation requirements. Usually, the slot width is two times the size of the formation sand.
End fittings can be customized to secure the screen body.

wedge wire water well screen pipe for liquid filtration

Feature of wedge wire water well screen pipe for liquid filtration

Wedge wire screen, a rod-based wire wrapped screen features the largest open area compared with either slotted liner or pipe-based screen. Versatile wedge wire screens can be found in a great number of well applications, such as rude oil production, natural gas production, vessel internals and ground water exploration and so on.

Advantages of wedge wire water well screen pipe for liquid filtration

1. automation is easy
2. easy cleaning
3. long filtration cycle
4. low maintenance cost (no moving parts)

Applications of wedge wire water well screen pipe for liquid filtration

Petroleum industry. Oil filtration.
Water treatment industry. Desalination of seawater, treatment of industrial water and domestic water. Water softening treatment.
Chemical industry. End products of chemical organic solution filtration, such as acid, alkali liquid filtration, alcohol and other products filtering.
Hydro-geological exploration.
Drilling construction.
Geothermal development.

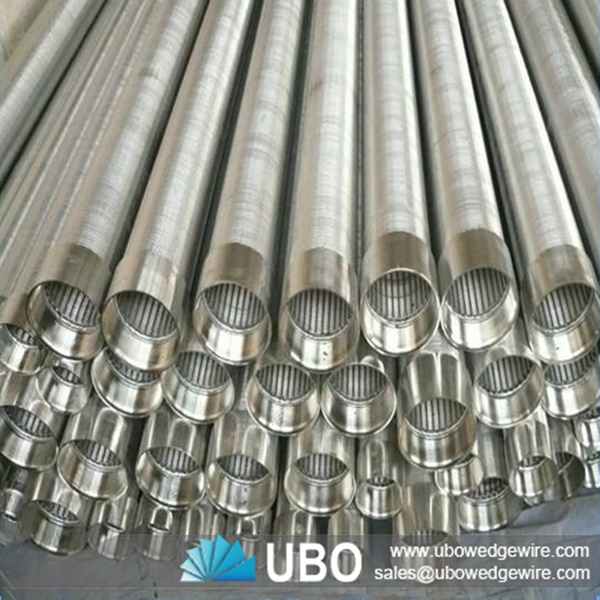

wedge wire water well screen pipe for liquid filtration

Specifications of wedge wire water well screen pipe for liquid filtration:

  • Material: stainless steel wire or galvanized wire.
  • Surface profile: triangle wire.
  • Support profile: triangle wire, and wedge wire.
  • Slot size: 0.05 mm - 35 mm.
  • Cylinder diameter: 10 mm - 1200 mm.
  • Length: up to 6 m.

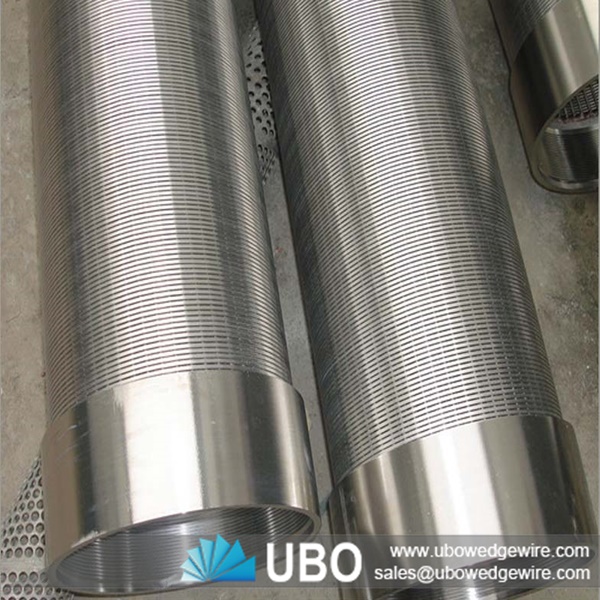

wedge wire water well screen pipe for liquid filtration

Packaging and Transportation of wedge wire water well screen pipe for liquid filtration:
