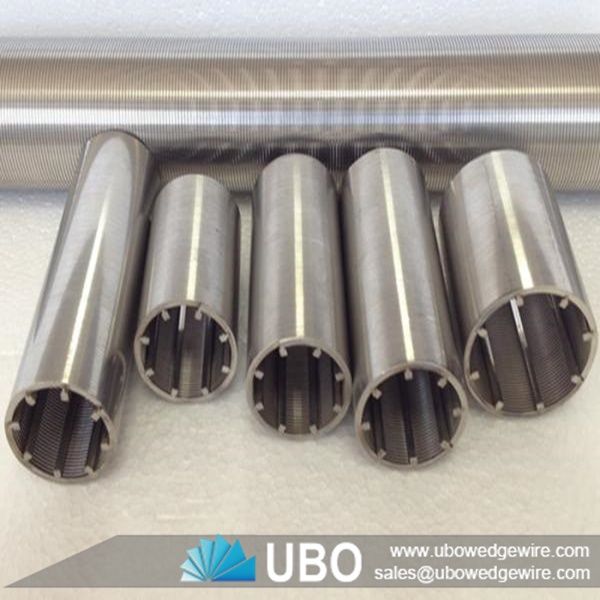

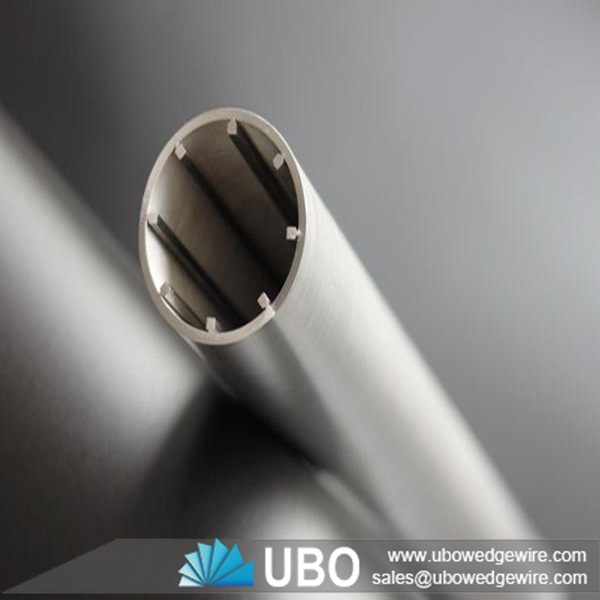

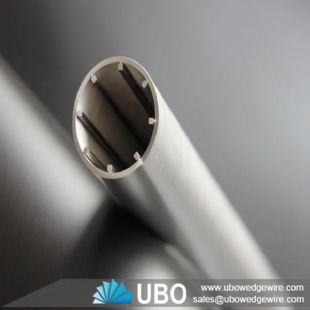

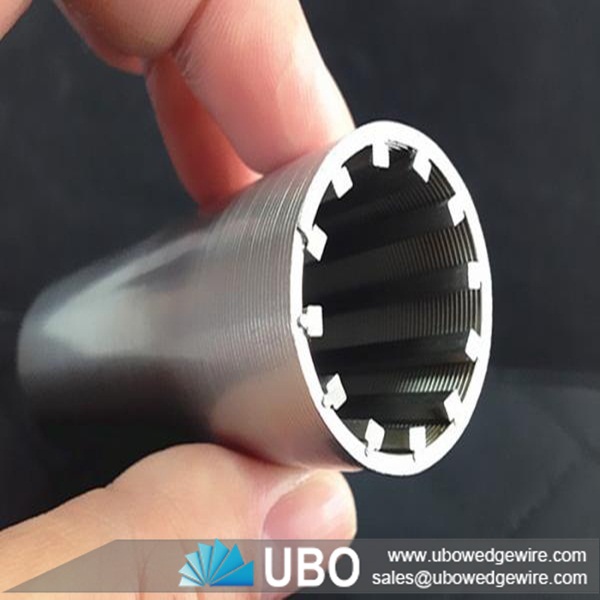

Vee stainless steel wire wrapped filter screen
Category: | Wedge Wire Pipe&Cylinder |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen pipe |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Vee stainless steel wire wrapped filter screen
Vee stainless steel wire wrapped filter screens are welded by profile V-wire and support wires,it is also called Wedge Wire screen. It has large filter area because of big opening,Wedge Wire structure are easy for automatic back washing and avoid pipe blocking.The pressure will be reduced when water flows in for greater filter area,avoid the grains of sand flow in the wedge wire tube in the high pressure conditions,so extend the pipe's life . Between the same length,diameter and slot size,wedge wire pipe is thrice than bridge filter pipes. Moreover, we have inside perforated metal and wedge wire tube outside filter.
Application of Vee stainless steel wire wrapped filter screen
widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.
Feature of Vee stainless steel wire wrapped filter screen
1. It has high mechanical strength, can bear large pressure drop.
2. The wedge type slot can improve backflushing and regeneration performance.
3. Resistance to pressure, temperature, aging, corrosion, uedes in kinds of fluid.
4. Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
Advantages of Vee stainless steel wire wrapped filter screen
High mechanical strength can bear large pressure drop.
Equal slots for filtering can form equally distributed filter cake.
The wedge type slot can improve backflushing and regeneration performance.
It has resistant to pressure temperature aging corrusion can be applied for different kinds of fluid.
Material 316L, 304, can be made as per your option.
Specifications of Vee stainless steel wire wrapped filter screen:
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
Note: other specifications available as per request |
|
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length |
up to 6 meters. |
Diameter |
from 25mm to 1200mm. |
End connection |
Plain beveled ends, flanged or threaded couplings |
Surface profiles | Support profiles | Min.diam. in mm | Min. slot width in mm |
10S | Q25 | 21 | 0.10 |
11S | Q20 or Q25 | 23 | 0.030 |
12S | 22S | 30 | 0.050 |
12S | Q25 | 23 | 0.030 |
12S | Q35 | 30 | 0.050 |
18S | 22S or Q35 | 30 | 0.050 |
18S | Q25 | 25 | 0.030 |
18S | D45 | 300 | 0.20 |
18S | 10x3 | 300 | 0.20 |
22S | 22S or Q35 | 45 | 0.10 |
22S | D45 or 10x3 or 25x3 | 300 | 0.20 |
28S | Q35 | 215 | 0.20 |
28S | D45 or 10x3 or 25x3 | 300 | 0.20 |
34S | Q35 | 300 | 0.20 |
34S | D45 | 300 | 0.20 |
34S | 10x3 or 25x3 | 300 | 0.20 |
42S | Q35 or D45 | 300 | 0.20 |
42S | 10x3 or 25x3 | 300 | 0.20 |
