wedge wire water distributor for tanks filter
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,316,316L |
Properties: | wedge wire screen |
Application: | water filter,industry filter,liquid filter |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of wedge wire water distributor for tanks filter

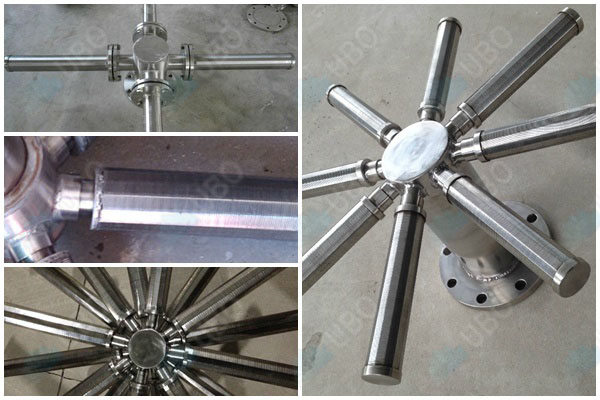

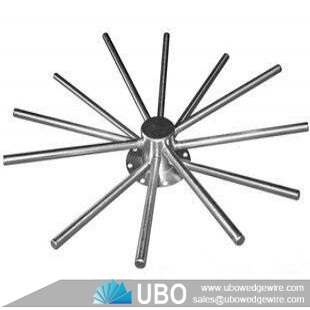

wedge wire water distributor lateral arm, mainly used in water input device, resin sprayer fittings, water distributor, center distribution drainage device, screen lateral systems.
These assemblies consist of a series of screen laterals connected to either a central header pipe or a hub. They are designed for effective media retention in a wide range of applications, including ion exchangers, clay and sand filtration applications, and carbon towers.
Features of wedge wire water distributor for tanks filter
-- Composed of surface profile
-- High open area, non clogging filter surface
-- Spirally wrapped around the axial support profile
-- Accurate, narrow slot openings
-- Triangular wedge wire design creates orifice effect
-- Cake discharge by back washing
Applications of wedge wire water distributor for tanks filter
wedge wire water distributor consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications
Specifications of wedge wire water distributor for tanks filter:
Type
|
Slots mm
|
ФA mm
|
ФB mm
|
H mm
|
L1 mm
|
L2 mm
|
Flange1 DN
|
Flange2 DN
|
AMD
|
0.05
0.1
0.2
0.3
0.5
1
|
45
57
76
89
108
133
159
219
|
108
133
159
219
|
200 250
275 300
325 350
400
|
420 480
600 680
720
|
1100
1280
1500
1700
1800
|
25
32
40
50
65
80
100
125
150
200
|
50
65
80
100
125
150
200
|
Packaging and Transportation of wedge wire water distributor for tanks filter:
Packaging Details: waterproof film in wooden case into the container.
as per customer's requirement
Delivery Detail: Based on the quantity to supply exact delivery time
