wedge wire vibrate screen for food procesing

More Views

wedge wire vibrate screen for food procesing

Category:Wedge Wire Application
Material:stainless steel 304,316,316L
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry,

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire vibrate screen for food procesing

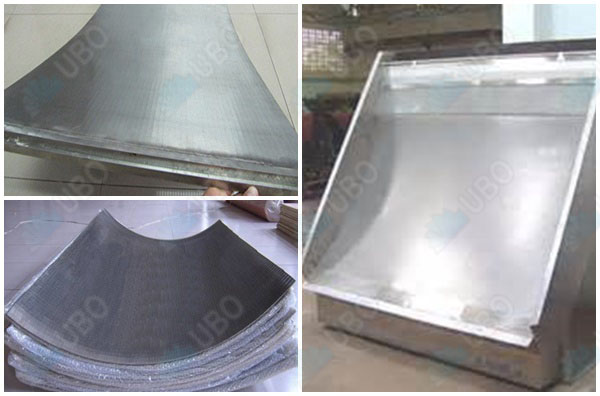

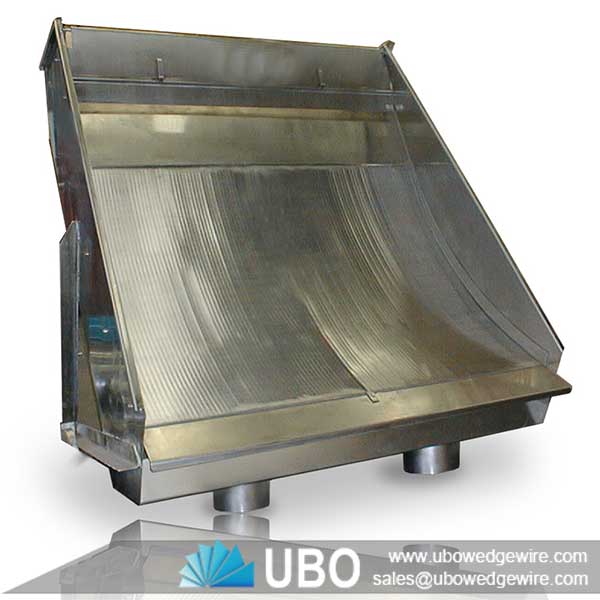

wedge wire vibrate screen also known as side hill screens, parabolic screens,rundown screens, gravity screens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes,corn wet milling, coal preparation, and gold recovery.Sieve Bends are cross-flow screens. The profile wires are slightly tilted so that the leading edge is position higher which greatly increases the dewatering capacity.A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.

 Application of Sieve Bend Dewatering Screen

This series vibrating screen is mainly used to dewater,deslime,take off medium,grading and slurry recycling. It is more suitable for hydrocyclone and sieving, desliming and dewatering for fine material.

Features of Sieve Bend Dewatering Screen

This series arc vibrating screen is a kind of grading equipment for fine material. It is mainly composed of arc sieving frame, stainless steel slot screen plate, vibration motor and distributing device. This machine has simple structure and easy installation. Also it has a good adaptability for fine mine sieving and is easily through sieve plate.

        wedge wire vibrate screen for food procesing

Specifications of wedge wire vibrate screen for food procesing:

Model
Structure
Capacity
(m3/h)
Sieve  pore
size Width
(mm)
Screening
surface
width(mm)
Installation
slope
angle (°)
Vibration
time
(r/min)
Power
(KW)
ZHS1200
Single
80~120
0.3~1.0
1200
52
1460
0.25*2
ZHS1600
Single
120~200
0.3~1.0
1600
52
1460
0.55*2
ZHS2100
Single
200~280
0.3~1.0
2100
52
1460
0.55*2
ZHS2400
Single
280~350
0.3~1.0
2400
52
1460
0.75*2
ZHS2800
Single/ Double
350~420
0.3~1.0
2800
52
1460
0.75*2
ZHS3000
Single/ Double
420~480
0.3~1.0
3000
52
1460
1.1*2
ZHS3400
Double
480~520
0.3~1.0
3400
52
1460
1.1*2
ZHS3800
Double
520~600
0.3~1.0
3400
52
1460
1.5*2

Packaging and Transportation of wedge wire vibrate screen for food procesing:
