Wedge Wire Curved Sieve Bend Screen Panel for Food Processing

More Views

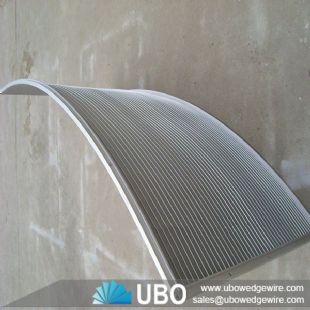

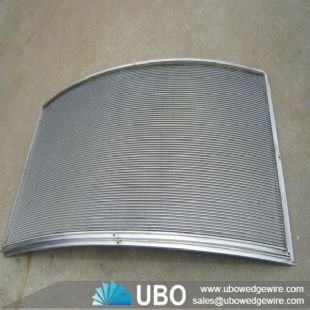

Wedge Wire Curved Sieve Bend Screen Panel for Food ProcessingWedge Wire Curved Sieve Bend Screen Panel for Food ProcessingWedge Wire Curved Sieve Bend Screen Panel for Food Processing

Wedge Wire Curved Sieve Bend Screen Panel for Food Processing

Category:Wedge Wire Application
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Curved Sieve Bend Screen Panel for Food Processing

Wedge wire curved sieve bend screen panel for food processing is a screen surface for the arc to open away from wet fine screening equipment. According to the different feeding methods are divided into gravity and pressure arc curved sieve screen. curved screen is a small curvature, low pressure, low-speed feeding curved screen, thanks to a certain height difference of the feed material screening and to the mouth, along the arc tangent in the direction screen surface for gravity feed. Pressure is a sweeping curved screen, high-pressure, high-speed feeding curved screen, which is the use of sand pump nozzle into the raw material to the slurry under the action of the material at high speed along the curved screen surface tangent to the direction of the pressure feedstock.

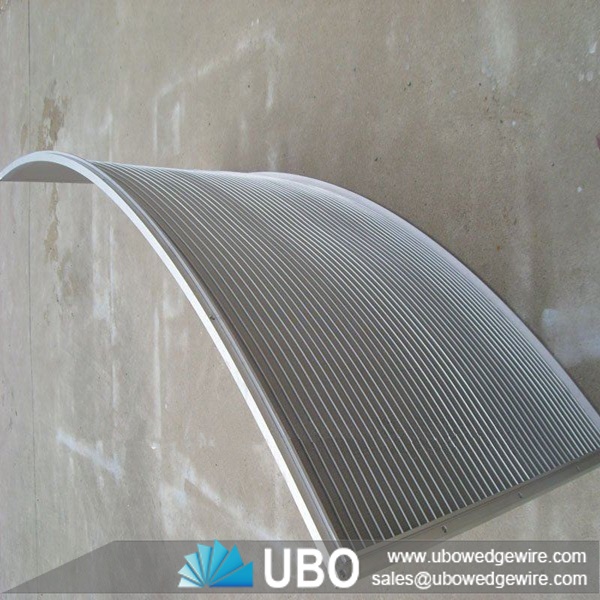

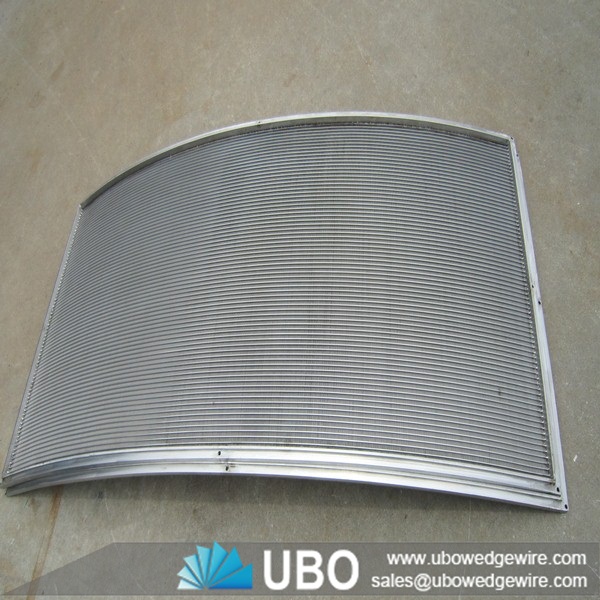

Wedge wire curved sieve bend screen panel for food processing

Wedge wire curved sieve bend screen panel for food processing



Application of Wedge Wire Curved Sieve Bend Screen Panel for Food Processing




Stainless steel sieve bend screen is widely used for wine-making, malting, paper making, mining, cement producing, food processing, oil-refining, painting as well as the industries of cigarete, sugar, foodstuff, noise silencer, environmetal protection, agricultural machine, chemical industry and pharmacy industry.



Features of Wedge Wire Curved Sieve Bend Screen Panel for Food Processing



Compact construction, heat resistant, rust-resistant, good mechanism performance, long working life, wear-resistant;
Well-proportioned screen aperture, not prone to jam, increase quality and efficiency of refined powder.

Proper construction, saving time and strength during installation and replacement, i.e. reducing time for installation, examination and maintenance, decreasing labor strength.

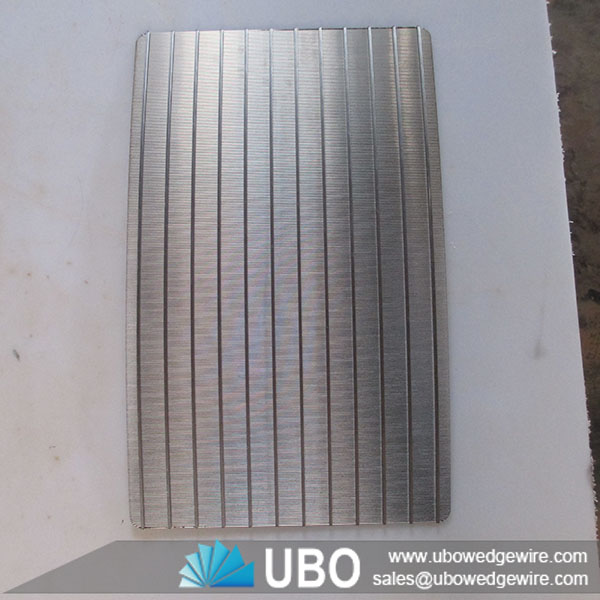

Wedge wire curved sieve bend screen panel for food processing

Wedge wire curved sieve bend screen panel for food processing

Wedge wire curved sieve bend screen panel for food processing

Specifications of Wedge Wire Curved Sieve Bend Screen Panel for Food Processing:

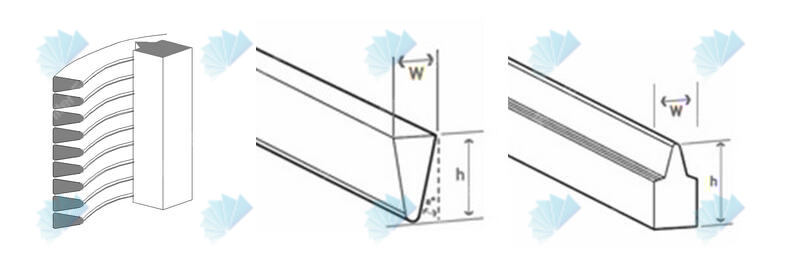

Wedge wire curved sieve bend screen panel for food processing

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot Size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

120º

End Connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Wedge Wire Curved Sieve Bend Screen Panel for Food Processing:

Wedge wire curved sieve bend screen panel for food processing
