wedge wire single nozzle filter for liquid filtration
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen |
Application: | water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration. |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

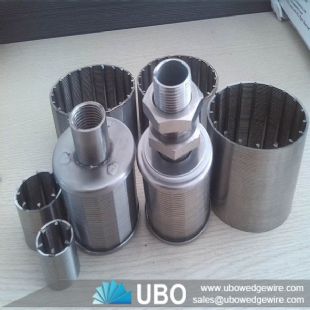

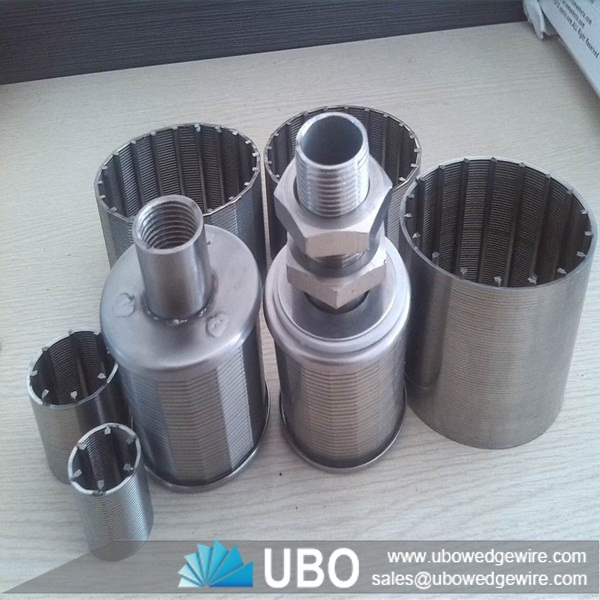

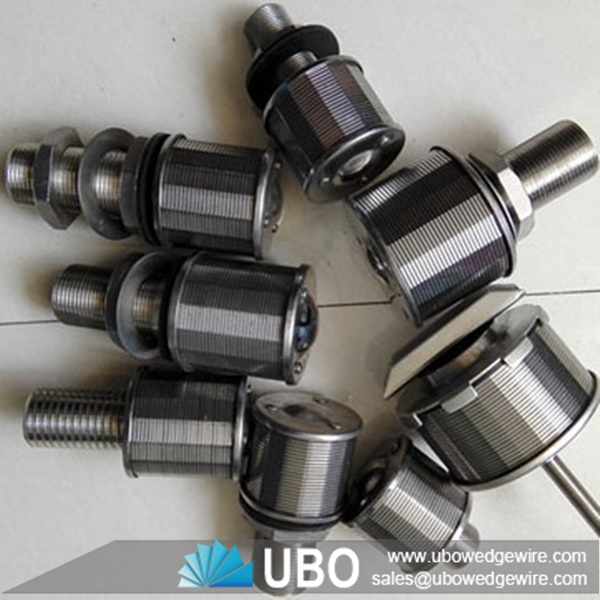

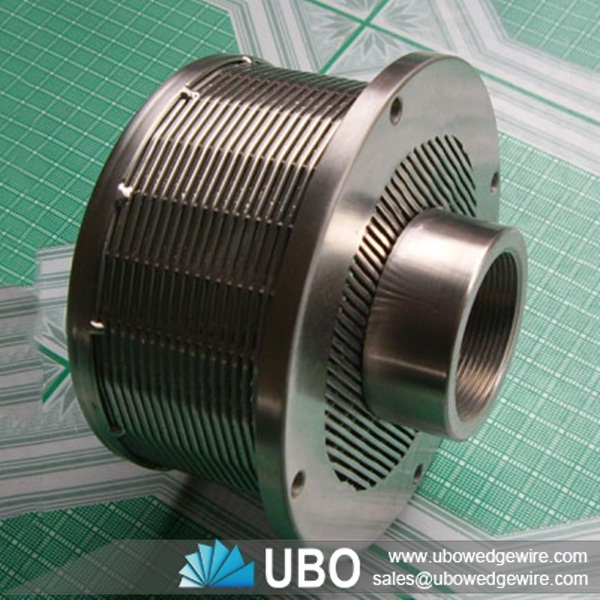

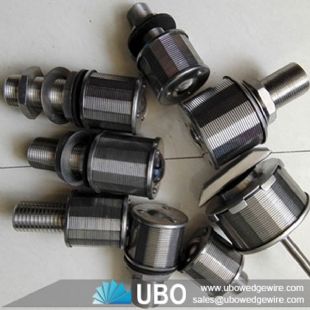

Details of wedge wire single nozzle filter for liquid filtration
Wedge wire single nozzle filter around the plate water cap for chemical industry is made up of stainles steel or Hastelloy C wedge wire screen. It use in the water softening treatment equipment, replace Polypropylene(PP) filter.
wedge wire single nozzle filter, manufactured uniquely in stainless steel or alloy, are successfully used in mixed beds, ion exchangers and regenerators of condensate polishing system.

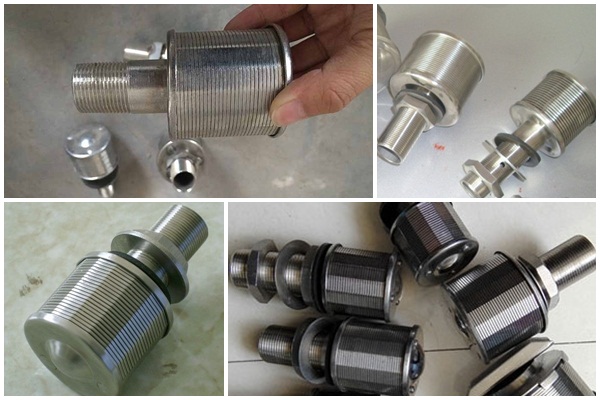

The wedge wire element in a nozzle is a screen pipe. Nozzles are closed on one side and have a threaded fitting on the other. One rubber shim , one steel shim and two thin nuts of the same material for a nozzle. Material: SUS304, 1Cr18Ni9Ti, AISI316L, 316 etc.
Advantages of wedge wire single nozzle filter
-- Excellent roundness
-- Very good slot width precision
-- High mechanical load capacity
-- No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
-- Automated welding process for high-precision manufacturing
-- Perfectly adjusted screen basket profiles
-- Available for all screens
-- Surface finishing as required
Application of wedge wire single nozzle filter for liquid filtration
1) Water well and oil/gas well
2) water and waste water treatment
3) Water supply
4) Petro Chemical
5) Food and beverage
6) Pulp and paper
7) Sugar and Starch
Specifications of wedge wire single nozzle filter for liquid filtration:
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Type:screen nozzle
Thread Spec.: 3/4 NPT
No. |
Slot |
Dimension |
Flow area/mm2
(Slot:0.2mm) |
|||
D |
H |
L |
M |
|||
1 |
0.25/0.4 |
82 |
50 |
50 |
130 |
1072 |
2 |
82 |
50 |
50 |
130 |
1072 |
|
3 |
53 |
33 |
35 |
110 |
485 |
|
4 |
53 |
33 |
35 |
110 |
485 |
Packaging and Transportation of wedge wire single nozzle filter for liquid filtration:
