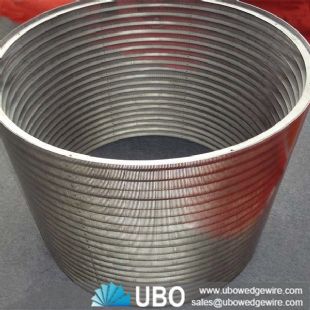

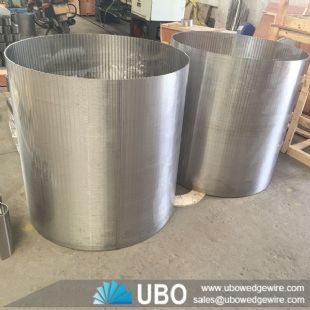

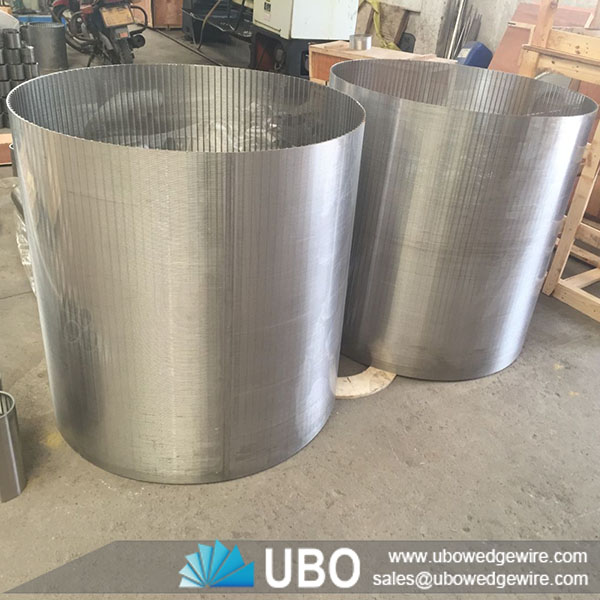

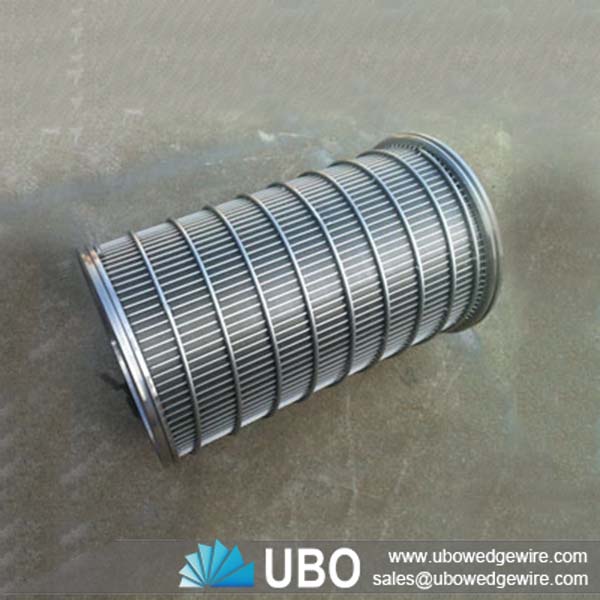

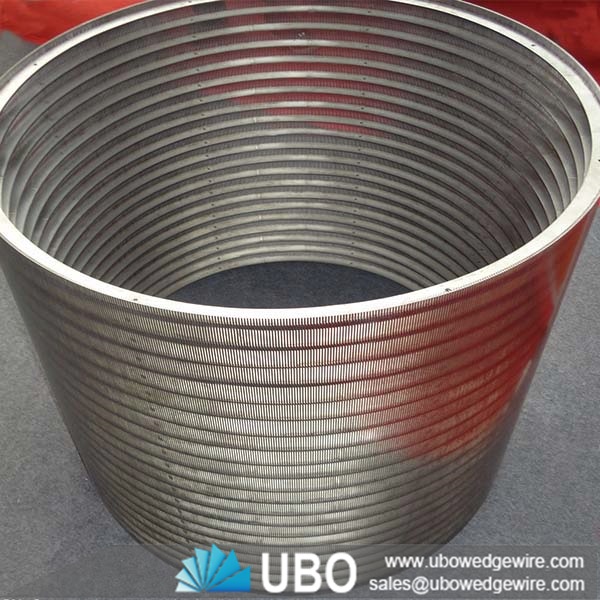

Wedge Wire Wedge Wire Rotary Drum Screen Cylinder

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen cylinder
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Wedge Wire Rotary Drum Screen Cylinder

Wedge Wire wedge wire rotary drum screen cylinder, also known as Wedge Wire, V-wire and Tri Wire, are custom made for your application. The features of this type of screen make it an attractive solution for separating solids from liquids, retaining media, filtering, sizing, dewatering, collecting, adn distributing.

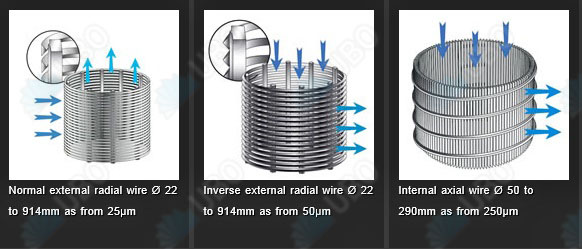

Wedge Wire wedge wire rotary drum screen cylinders are available for both externally-fed (flow from outside to inside) and internally feed applications. Externally-fed cylinders can be manufactured without requiring a weld seam up to about 36” OD, larger diameters must be fabricated.
Internally-fed cylinders are fabricated to customer’s requirements.

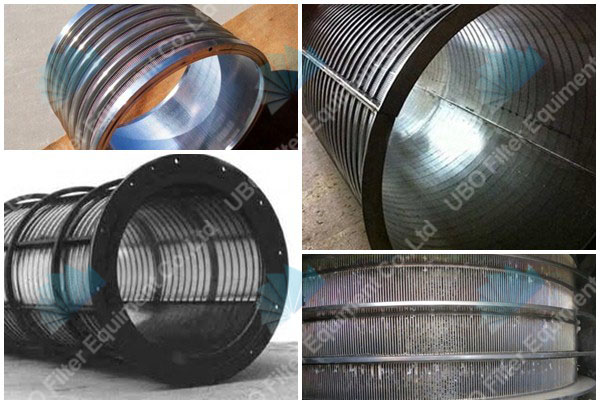

Wedge Wire wedge wire rotary drum screen cylinder

Feature of Wedge Wire Wedge Wire Rotary Drum Screen Cylinder

1) It has high mechanical strength, can bear large pressure drop.
2) Wedge type slot can improve backflushing and regeneration performance.
3) Resistance to pressure, temperature, aging, corrosion, uedes in kinds of fluid.
4) Equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

Application of Wedge Wire Wedge Wire Rotary Drum Screen Cylinder

Mine Sieving Mesh Usage: Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.

Wedge Wire wedge wire rotary drum screen cylinder

Specifications of Wedge Wire Wedge Wire Rotary Drum Screen Cylinder:



Wedge Wire wedge wire rotary drum screen cylinder

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Heigh(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Heigh(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot Size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

stainless steel (304,316 etc.) or carbon steel

Length

 up to 6 meters.

Diameter

 from 25mm to 1200mm.

End Connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of Wedge Wire Wedge Wire Rotary Drum Screen Cylinder:

Package: in wood case

Delivery Time:5-25 days
