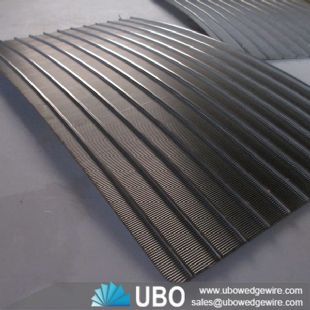

wedge wire sieve screen panel for food processing

More Views

wedge wire sieve screen panel for food processingwedge wire sieve screen panel for food processingwedge wire sieve screen panel for food processing

wedge wire sieve screen panel for food processing

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire sieve screen panel for food processing

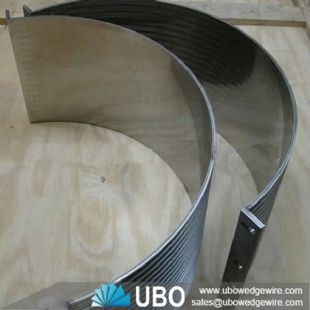

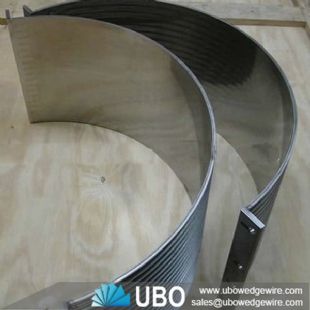

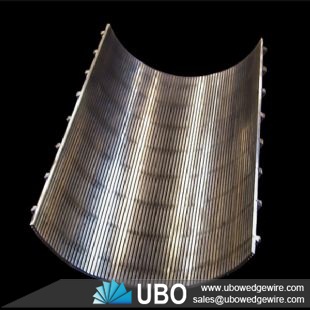

The wedge wire sieve screen is bent and curved, and used in static sieve screens for solid-liquid separation.

Sieve screen panel is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.

Features of wedge wire sieve screen for food processing

Fully welded construction, high strength and light weight.
Due to the V-shaped cross section of welding wires, it is clogging-resistant, and effective in dewatering.
It can be machined into different shapes to be flat, cylindrical (inward curling, outward curling), conic and so on.
It can be made from some special materials, such as titanium, hastelloy, monel, etc.

Advantages  of  wedge wire sieve screen panel for food processing

1. High opening rate, big filter area, fast filtering speed.
2. Good corrosion resistance and wear resistance.
3. Low using cost and long life span
4.Homogeneous slot size, smooth surface, strong permeability, minimum gap precision can be up to 8 microns.

Application of wedge wire sieve screen panel for food processing

mining, coal separation, drilling, fertilizer, food, environmental protection, metallurgy, medicine and other industries.

wedge wire sieve screen panel for food processing

Specifications of wedge wire sieve screen panel for food processing:

Material: Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm): Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Width: from 1 inch -----45 inch.

Length: Max 6 meters.

Slot size Slot size

Radian: 15º,30º,45º as your request

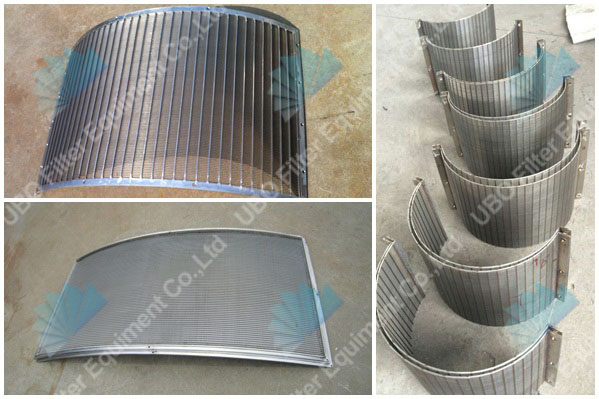

wedge wire sieve screen panel for food processing

Packaging and Transportation of wedge wire sieve screen panel for food processing:

transportation
