Quality Wedge Wire Screen Manufacturer in China

wedge wire screen panel for filtration

More Views

wedge wire screen panel for filtrationwedge wire screen panel for filtrationwedge wire screen panel for filtration

wedge wire screen panel for filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

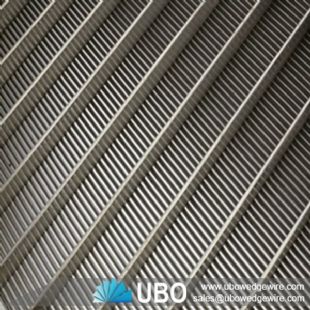

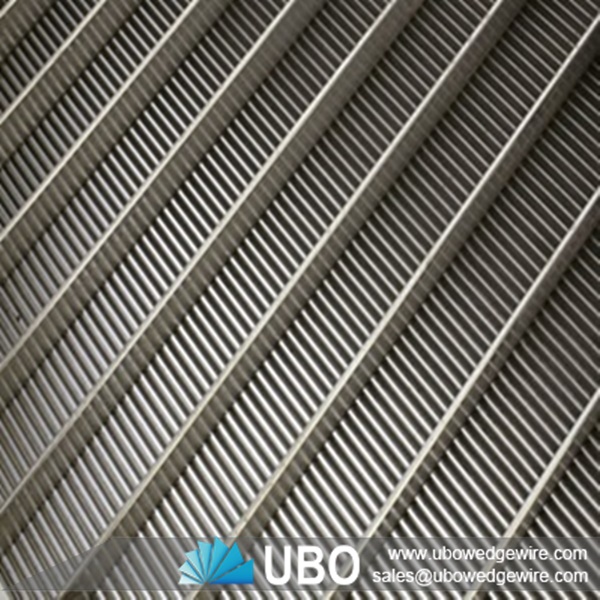

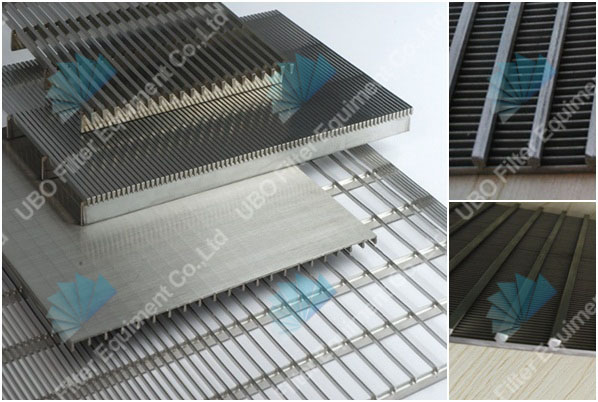

Details of wedge wire screen panel for filtration

Wedge wire screen panel can be designed to optimize the open area, strength and wear life for each application. The panels are either continuously or intermittently welded on the lower side of loop to provide complete rigidity to the panels thus becoming very effective in transmitting the vibrations without mechanical failures.

Wedge wire screen panel are made using only the highest quality standard stainless steel materials. The screen's surface structure is welded at 90 degrees angle with the support profiles which widen inwardly.

Feature of wedge wire screen panel for filtration

High strength
High hardness
Abrasion resistant
Corrosion resistant
Uniform aperture
Good transfusion
Easy to clean

Characteristic of wedge wire screen panel for filtration

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .

Usages of wedge wire screen panel for filtration

1.) Widely used in vairous kinds of medium filtering
2.) As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
3.) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
4.) The organic solution recycling filter

wedge wire screen panel for filtration

Specifications of wedge wire screen panel for filtration:

wedge wire screen panel for filtration

Wedge wire screen panel
Material: AISI304/316/316L,Galvanized low carton.
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot /opening Size 0.10 -- 6.00mm ,also can be customized as your request.
Lengt Can be customized as your request
Width 25mm -- 1200mm.
Note: Other specifications can be customized according to your requirement.


Packaging and Transportation of wedge wire screen panel for filtration:

transportation
